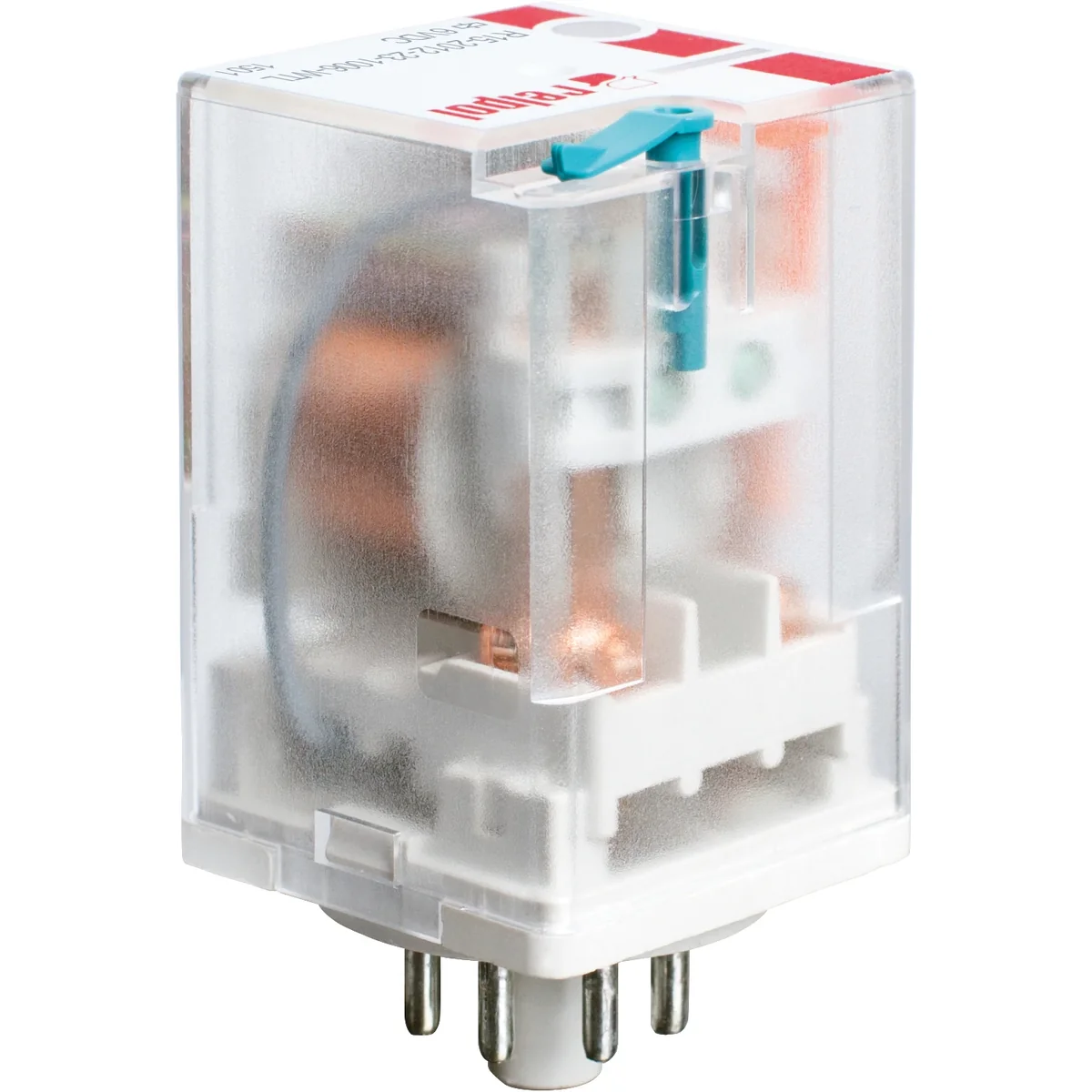

Electromagnetic relay, industrial - small size, for plug socket R15-2012-23-5230-WT 804299
local index:
APE141RELP
Catalog No:
804299
Price:
143,04 €
gross / pkg.
(including VAT 23%)
14,30 € gross/pcs.
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Electromagnetic relay, industrial - small size, for plug socket. Width 35mm. Output: 2P - two changeover contacts - terminals: 11(1)-12(4)-14(3); 21(8)-22(5)-24(6); AC1 - 10A / 250V; DC1 - 10 A / 24 V. Input / coil - terminals: A1(2) - A2(7), supply voltage Un - 230 V AC. Mechanical indicator W, test button T - with contact blocking function. Dimensions: 35 x 35 x 54.4mm. IP 40. Contact material: AgNi.
Technical data
-
Level of securityIP40
-
Pieces in the package10
-
Width [mm]35
-
PKWIU27.32.12.0
Other technical data
-
Type of electric connectionPlug-in connection
-
Rated control supply voltage AC 60 Hz230 ... 230 V
-
Voltage type for actuatingAC
-
Drive, switching attitudeMono stable
-
Number of contacts as normally open contact0
-
Type of switch contactSingle contact
-
Degree of protection (IP)IP40
-
Height35 mm
-
Rated control supply voltage AC 50 Hz230 ... 230 V
-
Rated control supply voltage DC0 ... 0 V
-
Drive, polarizationPolarity free
-
Number of contacts as normally closed contact0
-
Number of contacts as change-over contact2
-
Complete with socketNo
-
Width35 mm
-
Depth54.4 mm
Manufacturer details
-
ManufacturerRELPOL S.A.
-
Address68-200 Żary 11 Listopada 37
-
Phone number
-
E-mail
-
Tax identification number9280007076
-
GLN5909000713000
