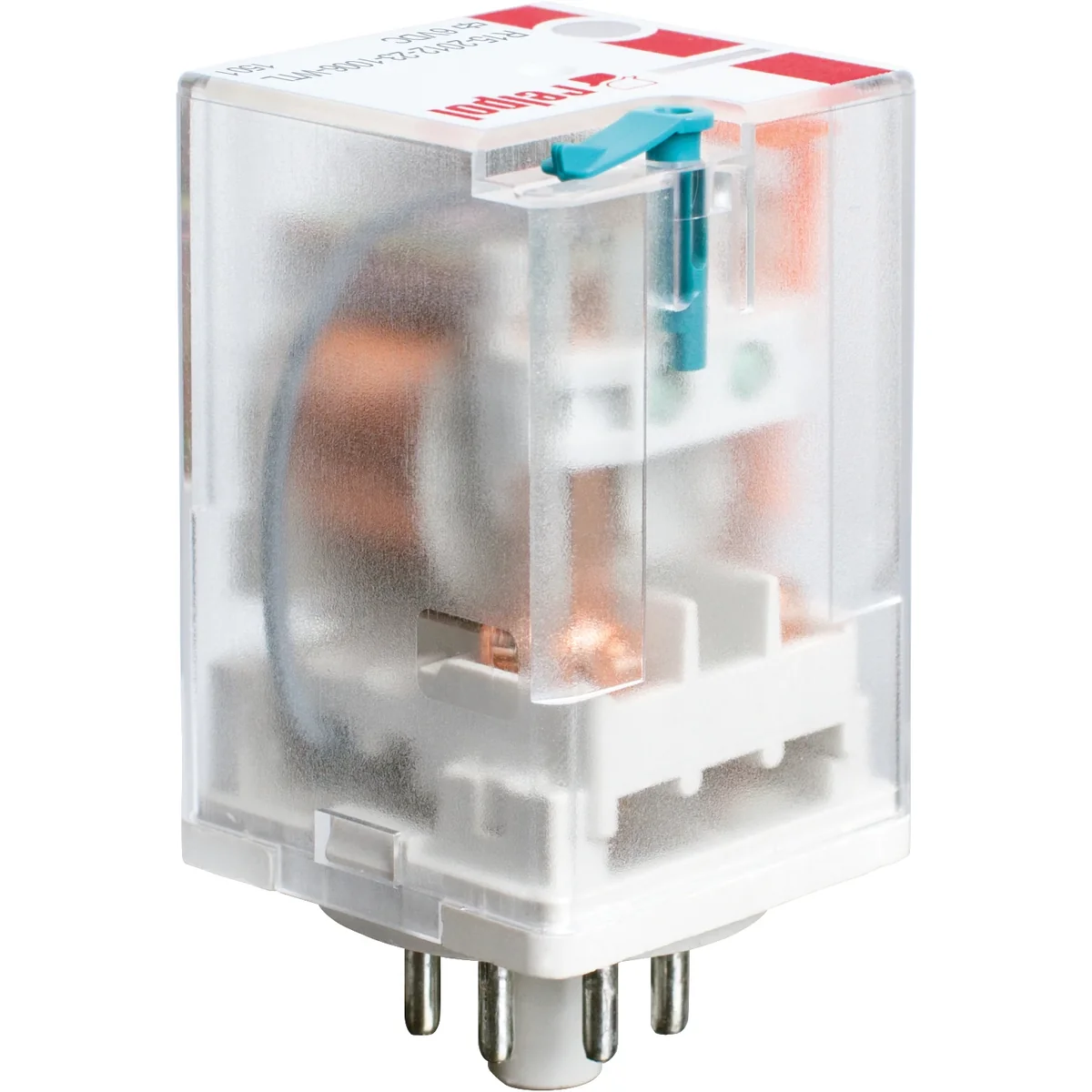

Electromagnetic relay, industrial - small size, for plug socket R15-2012-23-1024-WT 802882

local index:
APE156RELP
Catalog No:
802882
Manufacturer: RELPOL
Level of security: IP40
Width [mm]: 35
Pieces in the package: 10
Price:
131,47 €
gross / pkg.
(including VAT 23%)
13,15 € gross/pcs.
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Electromagnetic relay, industrial - small size, for plug socket.
Width 35 mm.
Output: 2P - two changeover contacts - terminals: 11(1)-12(4)-14(3); 21(8)-22(5)-24(6);
AC1 - 10A / 250V;
DC1 - 10 A / 24 V.
Input / coil - terminals: A1(2) - A2(7),
supply voltage Un - 24 V DC.
Mechanical indicator W,
T test button - with the function of blocking contacts.
Dimensions: 35 x 35 x 54.4 mm.
IP 40.
Contact material: AgNi.
Dimensions of the set R15 2P + socket PZ8 + clamp PZ11 0031: 68, 2 x 38 x 82, 6 mm.
Set - IP 20.
Dimensions of other sets are indicated in the description of the selected socket.

Technical data

  • Level of security
    IP40
  • Pieces in the package
    10
  • Width [mm]
    35

Other technical data

  • Type of electric connection
    Plug-in connection
  • Rated control supply voltage AC 60 Hz
    0 ... 0 V
  • Voltage type for actuating
    DC
  • Drive, switching attitude
    Mono stable
  • Number of contacts as normally open contact
    0
  • Type of switch contact
    Single contact
  • Degree of protection (IP)
    IP40
  • Height
    35 mm
  • Rated control supply voltage AC 50 Hz
    0 ... 0 V
  • Rated control supply voltage DC
    24 ... 24 V
  • Drive, polarization
    Polarity free
  • Number of contacts as normally closed contact
    0
  • Number of contacts as change-over contact
    2
  • Complete with socket
    No
  • Width
    35 mm
  • Depth
    54.4 mm
