RELPOL

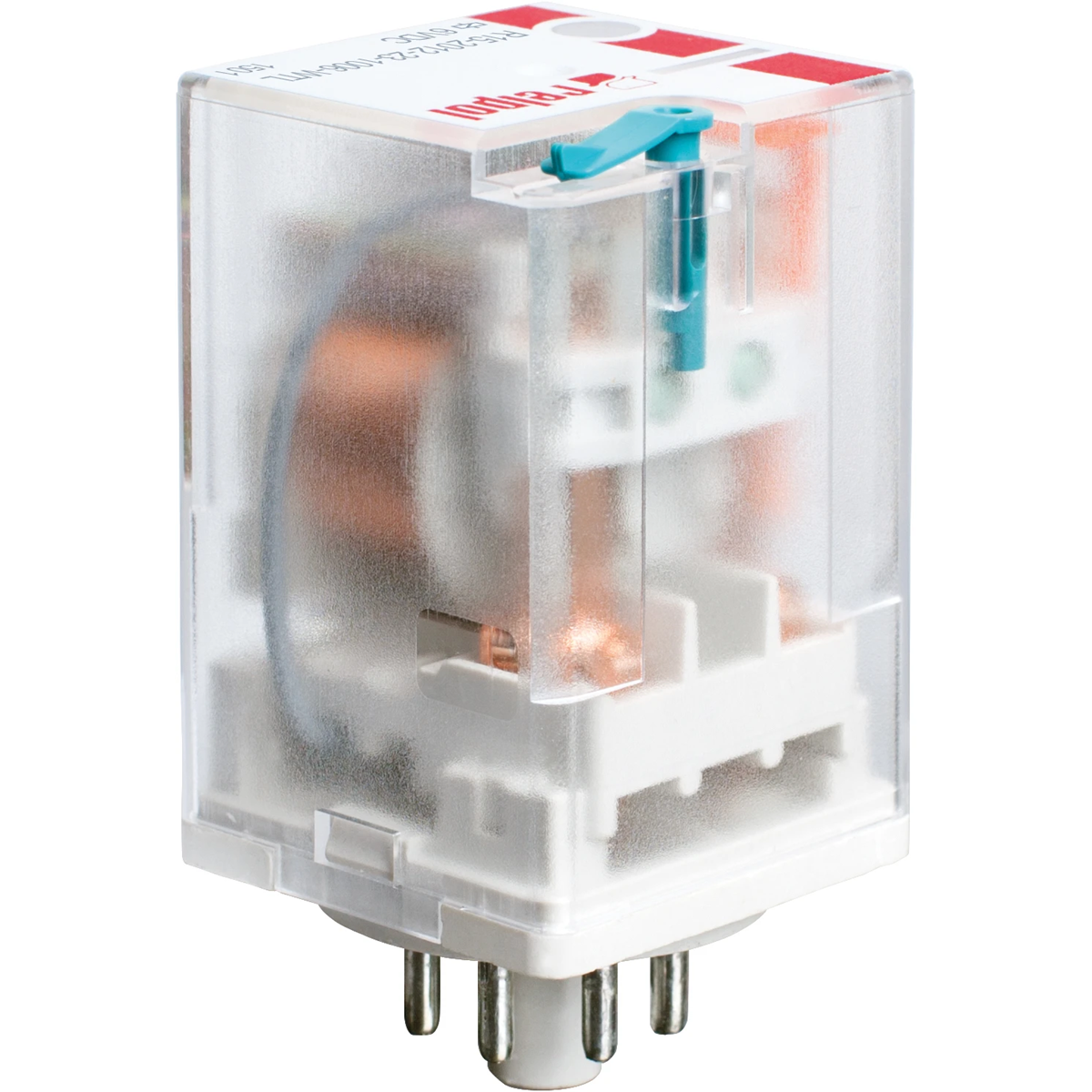

Electromagnetic relay, industrial - small size, for plug socket R15-2012-23-1012-WT 802879

local index:
APE151RELP
Catalog No:
802879
Price:
138,62 €
gross / pkg.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
From 3,71 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pkg.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description


Electromagnetic relay, industrial - small size, for plug socket.

Width 35 mm.

Output: 2P - two changeover contacts - terminals: 11(1)-12(4)-14(3); 21(8)-22(5)-24(6);

AC1 - 10A / 250V;

DC1 - 10A / 24V.
Input / coil - terminals: A1(2) - A2(7),

supply voltage Un - 12 V DC.

Mechanical activation indicator W,

test button T - with contact locking function.

Dimensions: 35 x 35 x 54.4 mm.

IP 40.< br />
Contact material: AgNi.

Dimensions of the set R15 2P + socket PZ8 + clamp PZ11 0031: 68, 2 x 38 x 82, 6 mm.
< br/>Set - IP 20.

Dimensions of other sets are indicated in the description of the selected socket.

Technical data

  • Level of security
    IP40
  • Pieces in the package
    10
  • Width [mm]
    35

Other technical data

  • Type of electric connection
    Plug-in connection
  • Rated control supply voltage AC 60 Hz
    0 ... 0 V
  • Voltage type for actuating
    DC
  • Drive, switching attitude
    Mono stable
  • Number of contacts as normally open contact
    0
  • Type of switch contact
    Single contact
  • Degree of protection (IP)
    IP40
  • Height
    35 mm
  • Rated control supply voltage AC 50 Hz
    0 ... 0 V
  • Rated control supply voltage DC
    12 ... 12 V
  • Drive, polarization
    Polarity free
  • Number of contacts as normally closed contact
    0
  • Number of contacts as change-over contact
    2
  • Complete with socket
    no
  • Width
    35 mm
  • Depth
    54.4 mm
