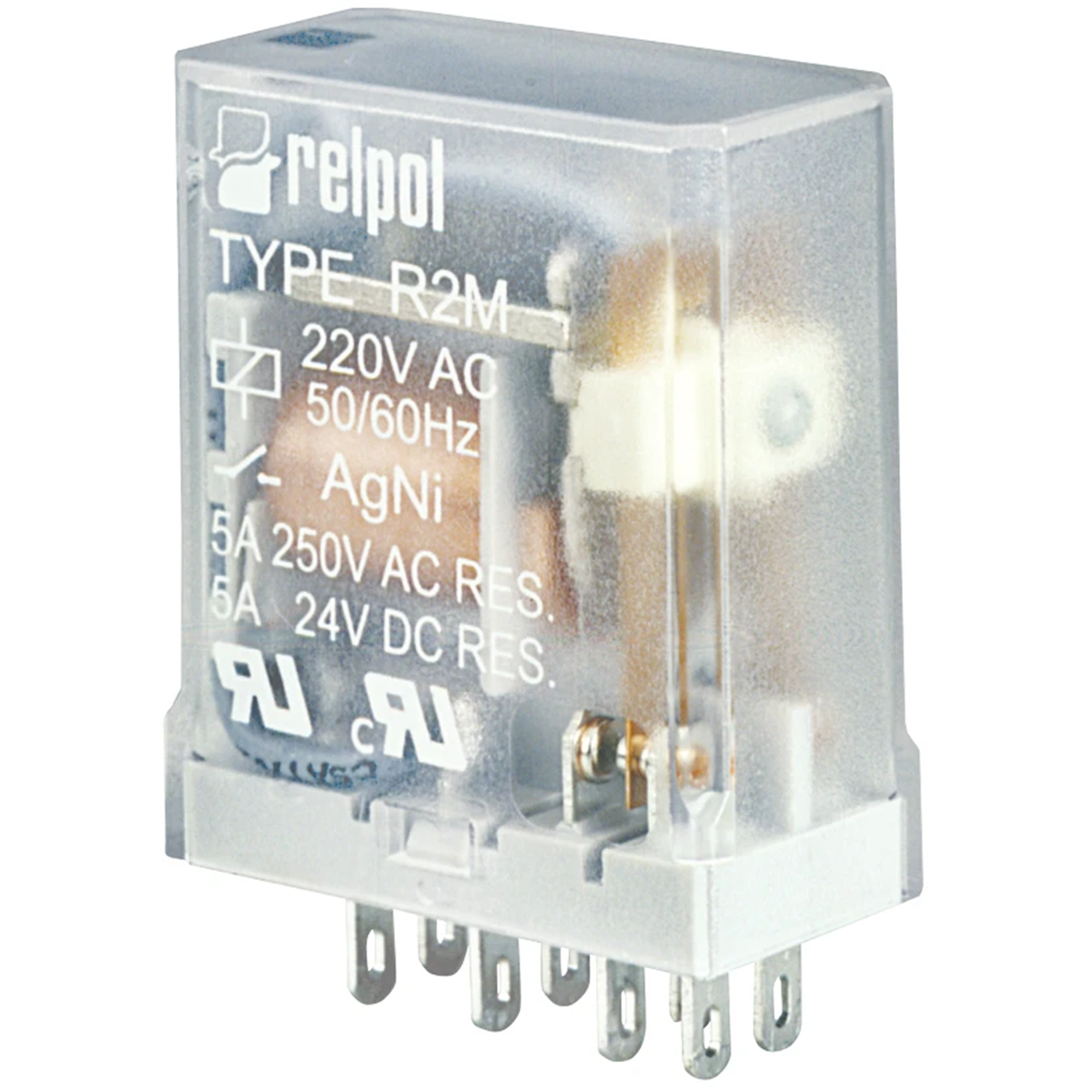

Electromagnetic relay, industrial - miniature R2M-2012-23-5024 R2M-2012-23-5024 620485
local index:
APE435RELP
Catalog No:
620485
Manufacturer:
RELPOL
Level of security: IP40
Price:
9,21 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Electromagnetic relay, industrial - miniature, for plug-in socket.
Output: 2P - two changeover contacts - terminals: 11(9)-12(1)-14(5) ; 21(12)-22(4)-24(8); AC1 - 5A / 250V; DC1 - 5 A / 24 V.
Input / coil - terminals: A1(13) - A2(14), supply voltage Un - 24 V AC.
Dimensions: 27.5x14x32.9mm. IP 40.
Contact material: AgNi.
Dimensions of the R2M set + GZ2 socket + GZ2 clamp 1060: 65, 2 x 20 x 60 mm. Set - IP 20.
Technical data
-
Level of securityIP40
Other technical data
-
Type of electric connectionPlug-in connection
-
Rated control supply voltage AC 60 Hz24 ... 24 V
-
Voltage type for actuatingAC
-
Drive, switching attitudeMono stable
-
Number of contacts as normally open contact0
-
Type of switch contactSingle contact
-
Degree of protection (IP)IP40
-
Height27.5 mm
-
Rated control supply voltage AC 50 Hz24 ... 24 V
-
Rated control supply voltage DC0 ... 0 V
-
Drive, polarizationPolarity free
-
Number of contacts as normally closed contact0
-
Number of contacts as change-over contact2
-
Complete with socketNo
-
Width14 mm
-
Depth32.9 mm
