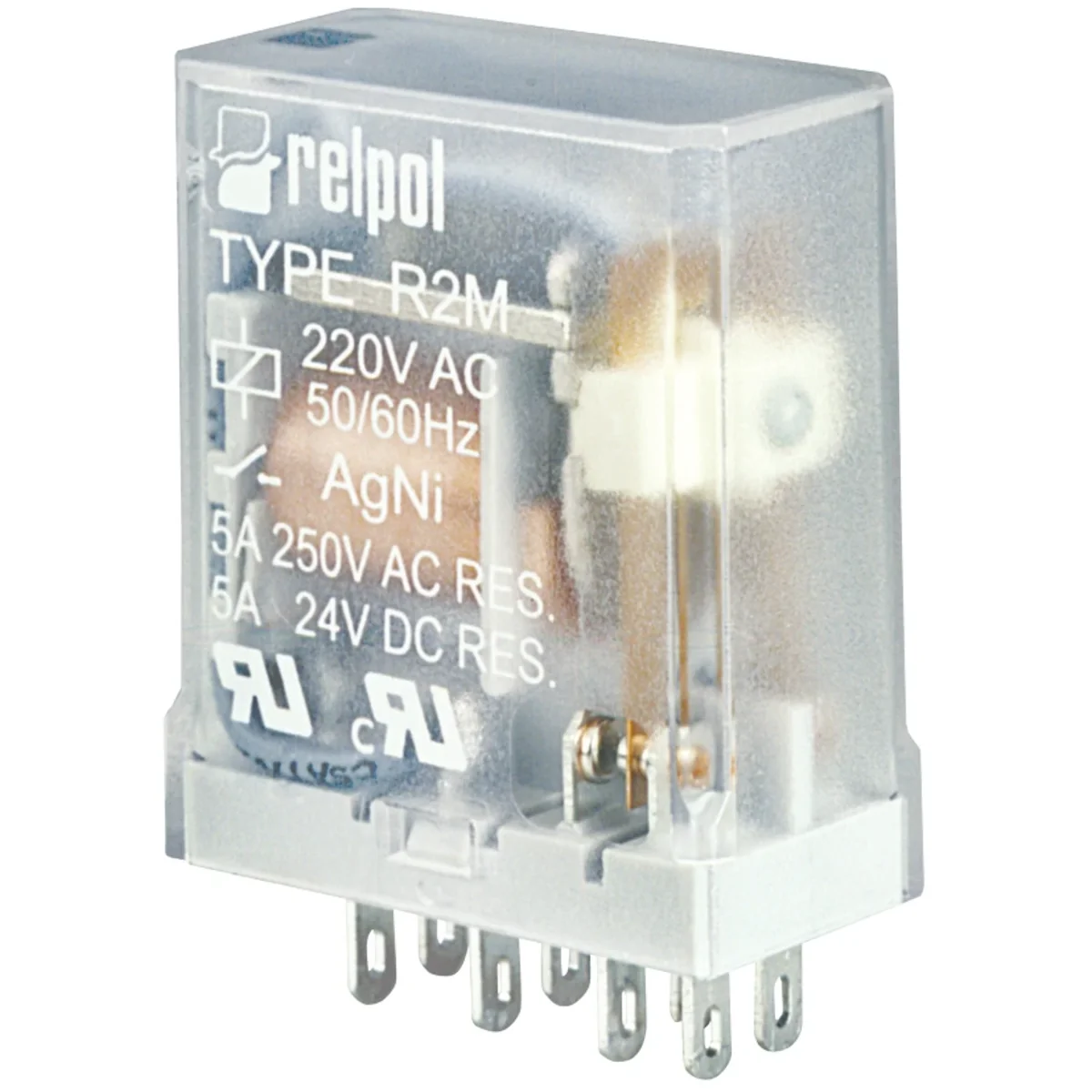

Electromagnetic relay, industrial - miniature R2M-2012-23-1012 617170

local index:
APE433RELP
Catalog No:
617170
Manufacturer: RELPOL
Level of security: IP40
Price:
9,64 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Electromagnetic relay, industrial - miniature, for plug socket. Output: 2P - two changeover contacts - terminals: 11(9)-12(1)-14(5); 21(12)-22(4)-24(8); AC1 - 5A / 250V; DC1 - 5 A / 24 V. Input / coil - terminals: A1(13) - A2(14), supply voltage Un - 12 V DC. Dimensions: 27.5 x 14 x 32.9mm. IP 40. Contact material: AgNi.

Technical data

  • Level of security
    IP40

Other technical data

  • Type of electric connection
    Plug-in connection
  • Rated control supply voltage AC 60 Hz
    0 ... 0 V
  • Voltage type for actuating
    DC
  • Drive, switching attitude
    Mono stable
  • Number of contacts as normally open contact
    0
  • Type of switch contact
    Single contact
  • Degree of protection (IP)
    IP40
  • Height
    27.5 mm
  • Rated control supply voltage AC 50 Hz
    0 ... 0 V
  • Rated control supply voltage DC
    12 ... 12 V
  • Drive, polarization
    Polarity free
  • Number of contacts as normally closed contact
    0
  • Number of contacts as change-over contact
    2
  • Complete with socket
    No
  • Width
    14 mm
  • Depth
    32.9 mm
