RELPOL

Electromagnetic relay, industrial - miniature, for plug socket R4N-2014-23-5230-WTL 860414

local index:
APE441RELP
Catalog No:
860414
Price:
10,90 €
gross / pcs.
including VAT 23%
Availability:
Check availability in branches
In warehouses 67 pcs.
Delivery:
From 3,49 € (prepaid courier) Details
Estimated delivery time:
DHL, Inpost 1-3 working days

Delivery in 3h

Pickup in 1h

Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

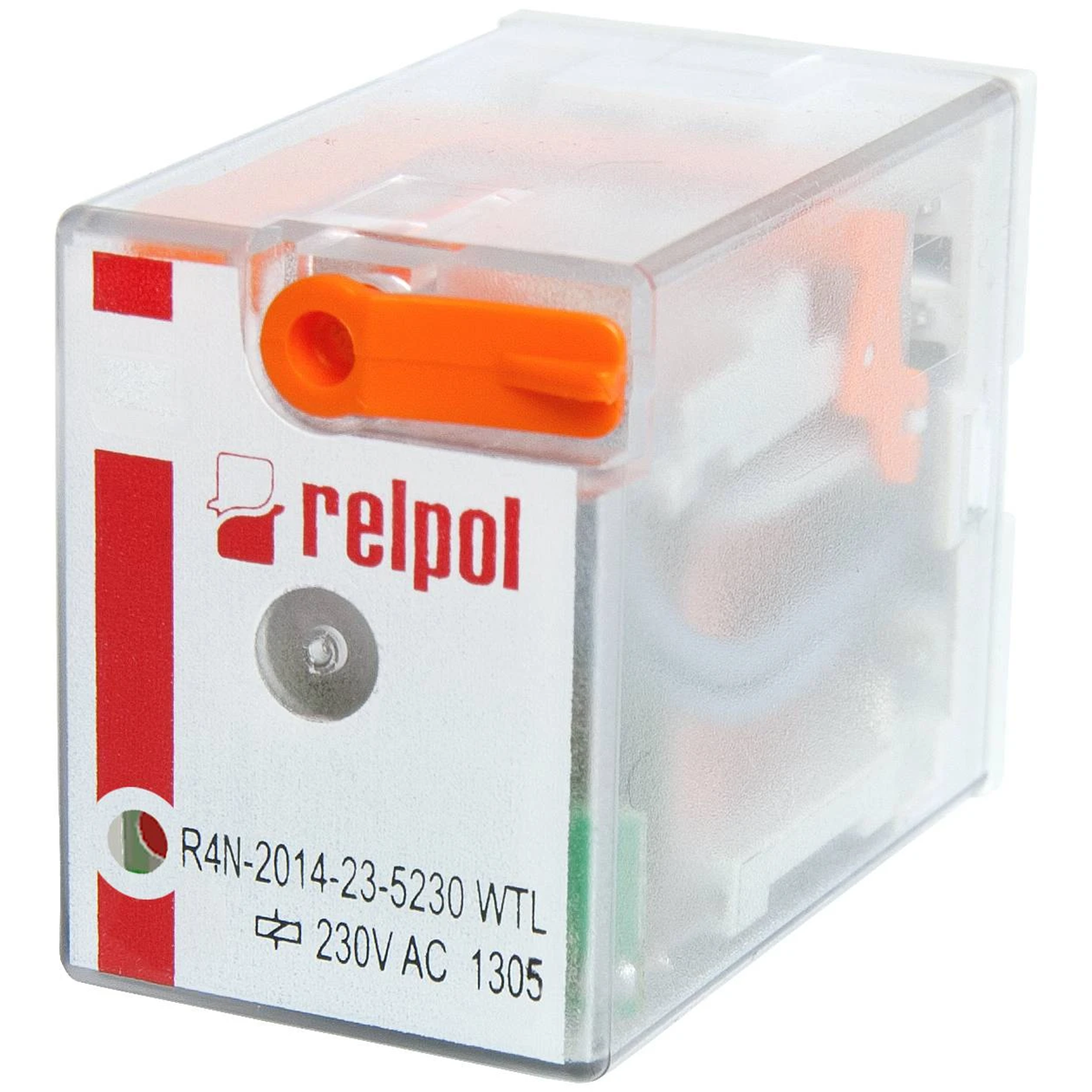

Electromagnetic relay, industrial - miniature, for plug-in socket.
Width 21.2 mm.
Output: 4P - four changeover contacts - terminals: 11(9)-12(1)-14(5); 21(10)-22(2)-24(6); 31(11)-32(3)-34(7); 41(12)-42(4)-44(8); AC1 - 6A / 250V; DC1 - 6A / 24V
Input / coil - terminals: (+)A1(13) - (-)A2(14), supply voltage Un - 230 V AC.
Mechanical indicator W,
LED indicator red L,
T test button with locking function.
Dimensions: 27.5 x 21.2 x 35.6mm. IP 40.
Contact material: AgNi.

Technical data

  • Level of security
    IP40
  • Width [mm]
    21, 2

Other technical data

  • Type of electric connection
    Plug-in connection
  • Rated control supply voltage AC 60 Hz
    230 ... 230 V
  • Voltage type for actuating
    AC
  • Drive, switching attitude
    Mono stable
  • Number of contacts as normally open contact
    0
  • Type of switch contact
    Single contact
  • Degree of protection (IP)
    IP40
  • Height
    27.5 mm
  • Rated control supply voltage AC 50 Hz
    230 ... 230 V
  • Rated control supply voltage DC
    0 ... 0 V
  • Drive, polarization
    Polarity free
  • Number of contacts as normally closed contact
    0
  • Number of contacts as change-over contact
    4
  • Complete with socket
    no
  • Width
    21.2 mm
  • Depth
    35.6 mm
