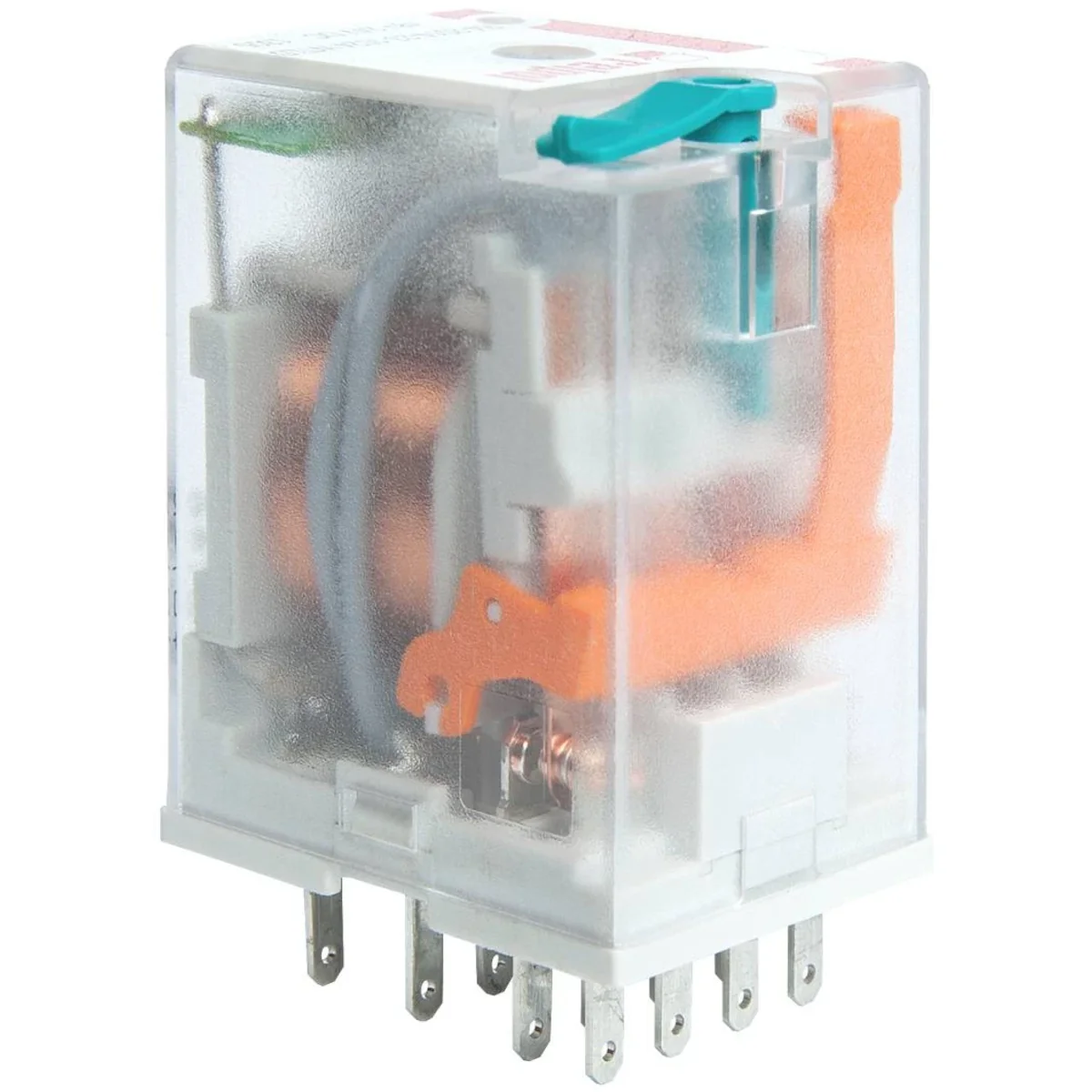

Electromagnetic relay, industrial - miniature, for plug socket R4N-2014-23-1220-WTLD 860620

local index:
APE245RELP
Catalog No:
860620
Manufacturer: RELPOL
Level of security: IP40
Width [mm]: 21.2
Price:
21,66 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description


Electromagnetic relay, industrial - miniature, for plug-in socket.

Width 21.2mm.

Output: 4P - four changeover contacts - terminals: 11(9)-12(1)-14(5); 21(10)-22(2)-24(6); 31(11)-32(3)-34(7); 41(12)-42(4)-44(8); AC1 - 6A / 250V; DC1 - 6A / 24V

Input / coil - outputs: (+)A1(13) - (-)A2(14),

supply voltage Un - 220 V DC.

Mechanical indicator W,

LED indicator red L,

diode D,

T test button with locking function.

Dimensions: 27.5 x 21.2 x 35.6mm. IP 40.

Contact material: AgNi.

Technical data

  • Level of security
    IP40
  • Width [mm]
    21.2

Other technical data

  • Type of electric connection
    Plug-in connection
  • Rated control supply voltage AC 60 Hz
    0 ... 0 V
  • Voltage type for actuating
    DC
  • Drive, switching attitude
    Mono stable
  • Number of contacts as normally open contact
    0
  • Type of switch contact
    Single contact
  • Degree of protection (IP)
    IP40
  • Height
    27.5 mm
  • Rated control supply voltage AC 50 Hz
    0 ... 0 V
  • Rated control supply voltage DC
    220 ... 220 V
  • Drive, polarization
    Polarity free
  • Number of contacts as normally closed contact
    0
  • Number of contacts as change-over contact
    4
  • Complete with socket
    No
  • Width
    21.2 mm
  • Depth
    35.6 mm
