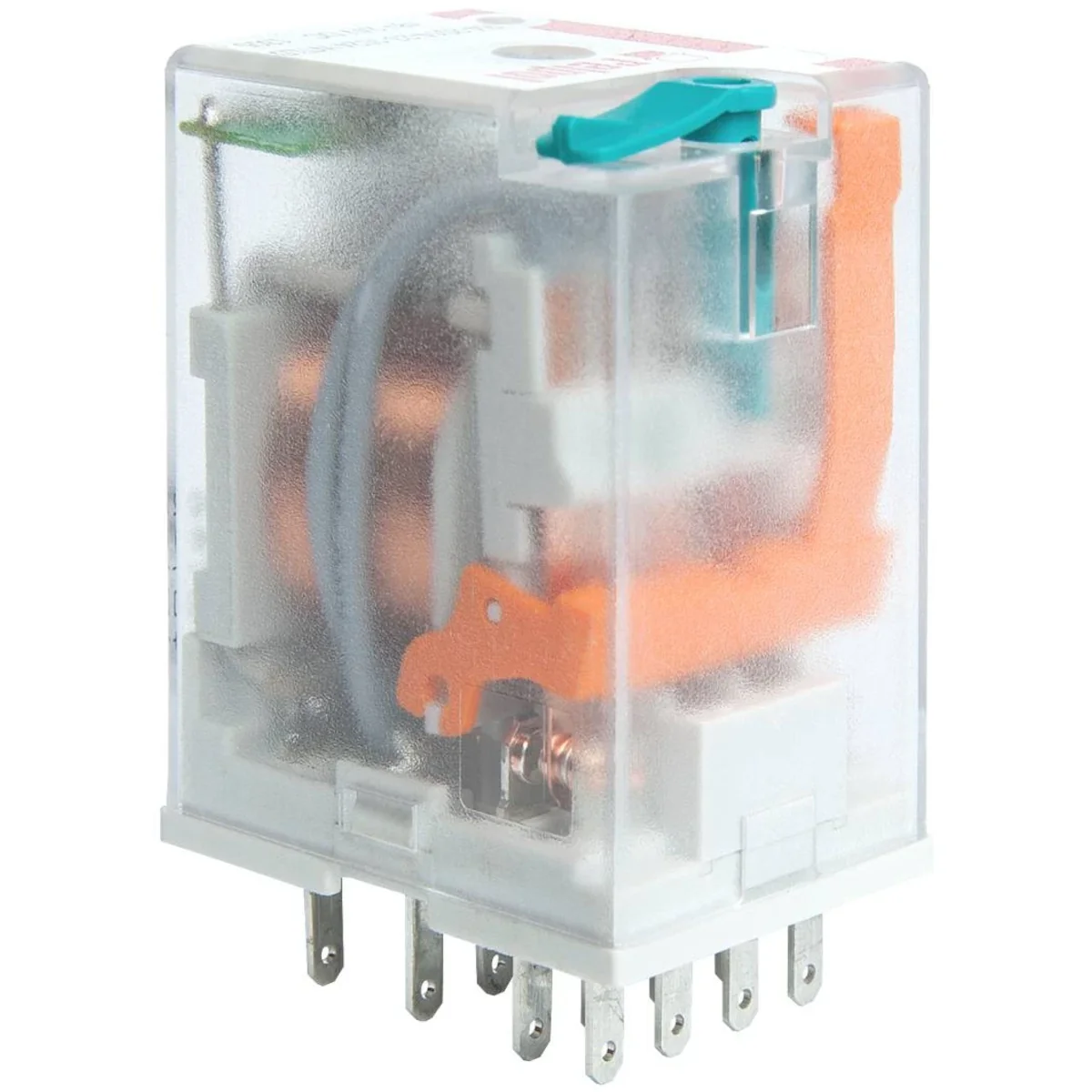

Electromagnetic relay, industrial - miniature, for plug socket R4N-2014-23-1220-WT 860619
local index:
APE431RELP
Catalog No:
860619
Price:
18,50 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Electromagnetic relay, industrial - miniature, for plug socket. Width 21.2mm. Output: 4P - four changeover contacts - terminals: 11(9)-12(1)-14(5); 21(10)-22(2)-24(6); 31(11)-32(3)-34(7); 41(12)-42(4)-44(8); AC1 - 6A / 250V; DC1 - 6 A / 24 V. Input / coil - terminals: A1(13) - A2(14), supply voltage Un - 220 V DC. Mechanical indicator W and test button T with locking function. Dimensions: 27.5 x 21.2 x 35.6mm. IP 40. Contact material: AgNi.
Technical data
-
Level of securityIP40
-
Width [mm]21.2
Other technical data
-
Type of electric connectionPlug-in connection
-
Rated control supply voltage AC 60 Hz0 ... 0 V
-
Voltage type for actuatingDC
-
Drive, switching attitudeMono stable
-
Number of contacts as normally open contact0
-
Type of switch contactSingle contact
-
Degree of protection (IP)IP40
-
Height27.5 mm
-
Rated control supply voltage AC 50 Hz0 ... 0 V
-
Rated control supply voltage DC220 ... 220 V
-
Drive, polarizationPolarity free
-
Number of contacts as normally closed contact0
-
Number of contacts as change-over contact4
-
Complete with socketNo
-
Width21.2 mm
-
Depth35.6 mm
