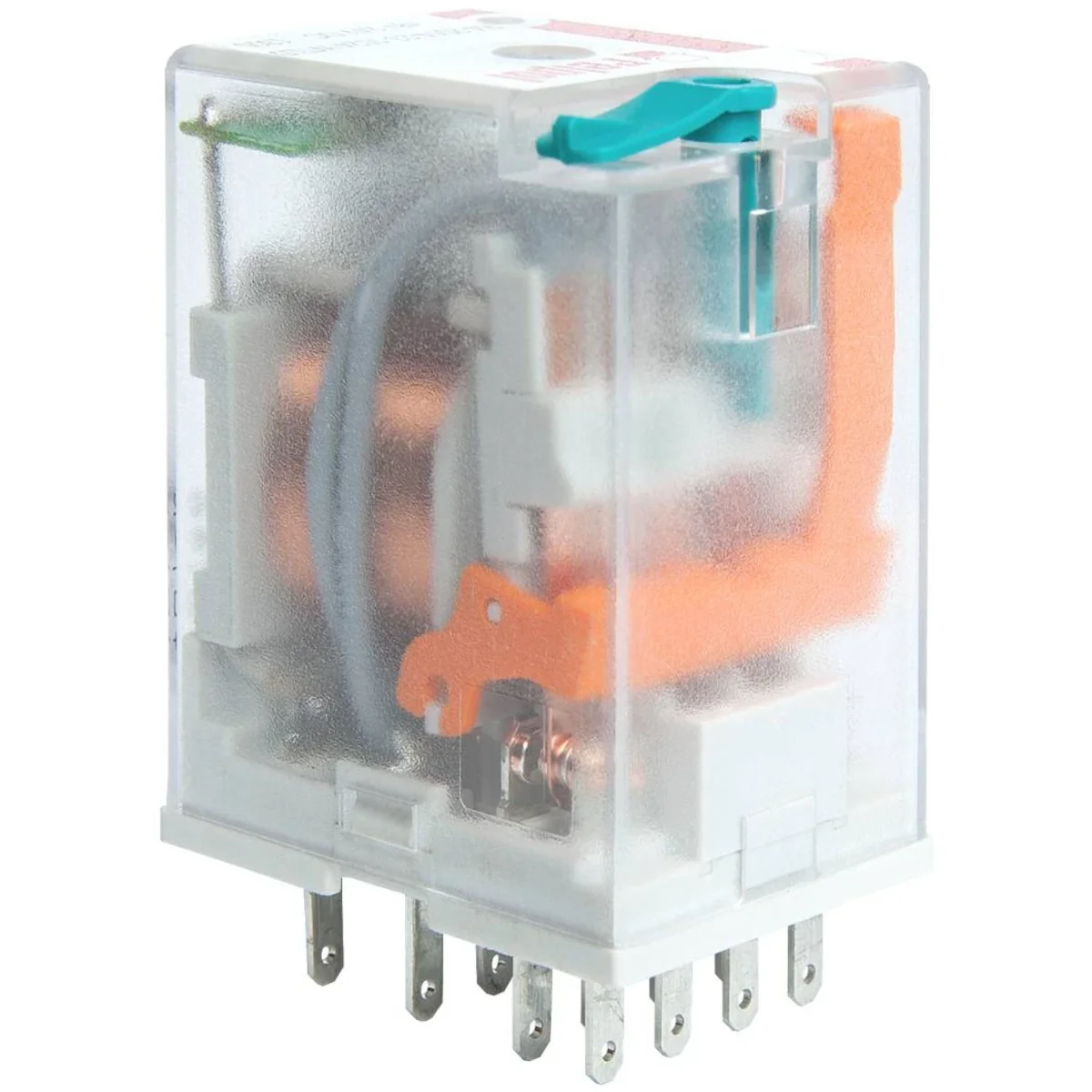

Electromagnetic relay, industrial - miniature, for plug socket R4N-2014-23-1012-WTL 860613
local index:
APE020RELP
Catalog No:
860613
Price:
117,78 €
gross / pkg.
(including VAT 23%)
11,78 € gross/pcs.
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Electromagnetic relay, industrial - miniature, for plug socket. Width 21.2mm. Output: 4P - four changeover contacts - terminals: 11(9)-12(1)-14(5); 21(10)-22(2)-24(6); 31(11)-32(3)-34(7); 41(12)-42(4)-44(8); AC1 - 6A / 250V; DC1 - 6 A / 24 V. Input / coil - terminals: (+)A1(13) - (-)A2(14), supply voltage Un - 12 V DC. Mechanical indicator W, red LED indicator L, test button T with locking function. Dimensions: 27.5 x 21.2 x 35.6mm. IP 40. Contact material: AgNi.
Technical data
-
Level of securityIP40
-
Pieces in the package10
-
Width [mm]21.2
Other technical data
-
Type of electric connectionPlug-in connection
-
Rated control supply voltage AC 60 Hz0 ... 0 V
-
Voltage type for actuatingDC
-
Drive, switching attitudeMono stable
-
Number of contacts as normally open contact0
-
Type of switch contactSingle contact
-
Degree of protection (IP)IP40
-
Height27.5 mm
-
Rated control supply voltage AC 50 Hz0 ... 0 V
-
Rated control supply voltage DC12 ... 12 V
-
Drive, polarizationPolarity free
-
Number of contacts as normally closed contact0
-
Number of contacts as change-over contact4
-
Complete with socketNo
-
Width21.2 mm
-
Depth35.6 mm
Manufacturer details
-
ManufacturerRELPOL S.A.
-
Address68-200 Żary 11 Listopada 37
-
Phone number
-
E-mail
-
Tax identification number9280007076
-
GLN5909000713000
