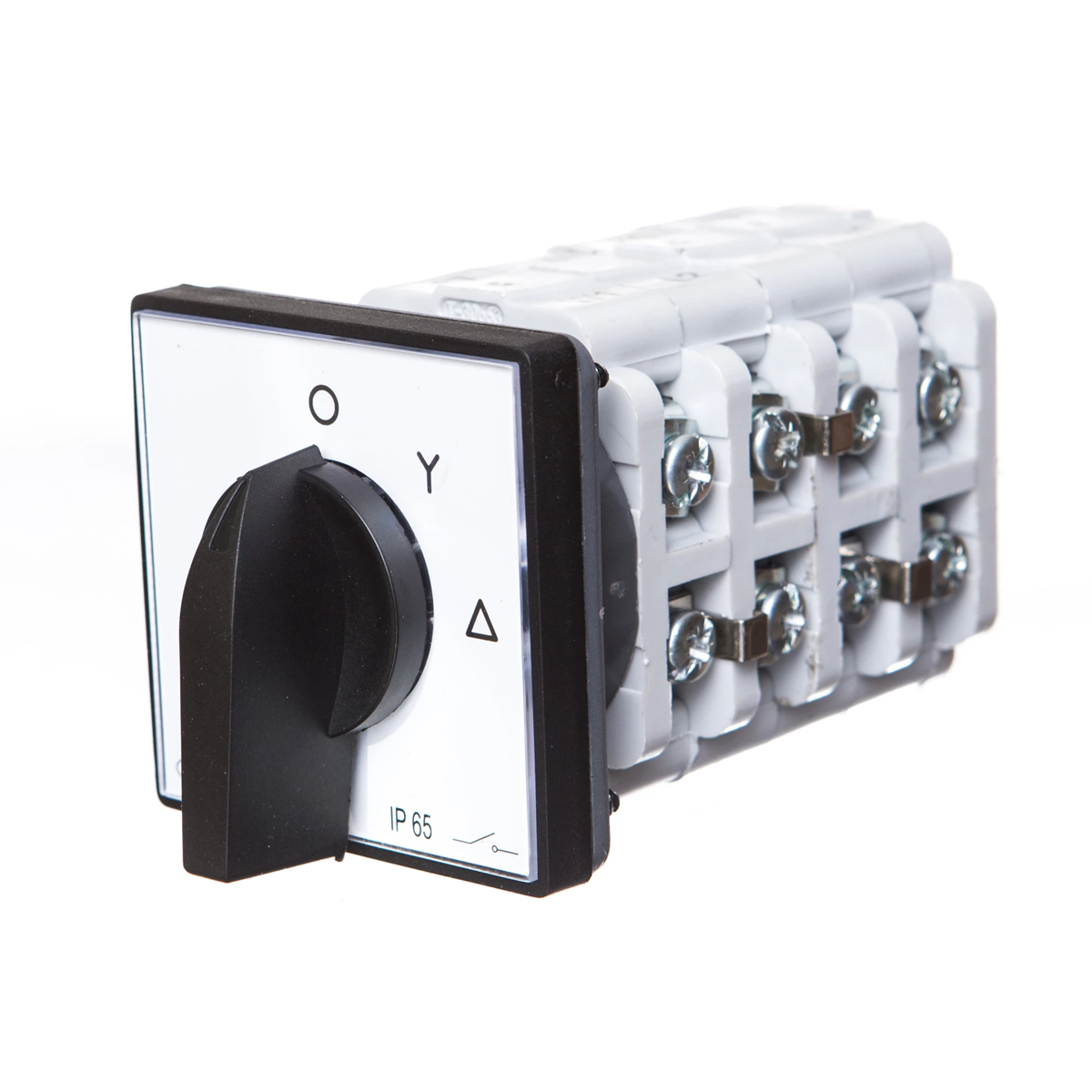

Elbow 40-22 Star-delta 0-Y-A cam switch 924011

local index:
ALK320ELDZ
Catalog No:
924011
EAN code:
5906197480906
Manufacturer: ELEKTROMET
Rated voltage [V]: 400
Rated current [A]: 40
Level of security: IP44
Price:
36,99 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Switches, depending on the type and intended function, are used as devices for switching on/off. electricity in various types of electrical devices, e.g. electric motors, aggregates, etc.

Technical data

  • Rated voltage [V]
    400
  • Level of security
    IP44
  • Rated current [A]
    40
  • PKWIU
    27.33.11.0

Other technical data

  • Model
    Star-delta switch
  • With zero (off) position
    Yes
  • Rated permanent current Iu
    40 A
  • Degree of protection (IP), front side
    IP65
  • Complete device in housing
    No
  • Type of electrical connection of main circuit
    Screw connection
  • Number of poles
    3
  • With retraction in 0-position
    No
  • Rated operation power at AC-3, 400 V
    11 kW
  • Suitable for front mounting
    Yes
  • Type of control element
    Turn button

Bulk packaging

A kind of package Karton
Quantity 1 pcs.
Weight (kg) 0,465
Width (m) 0,083
Length (m) 0,080
Depth (m) 0,138
