SCHNEIDER ELECTRIC

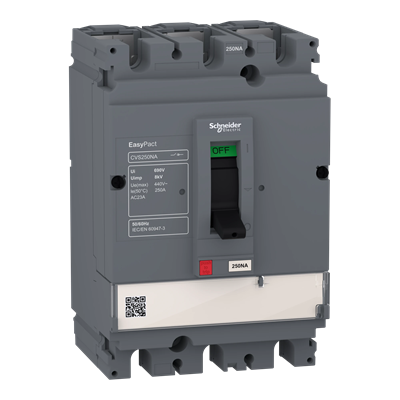

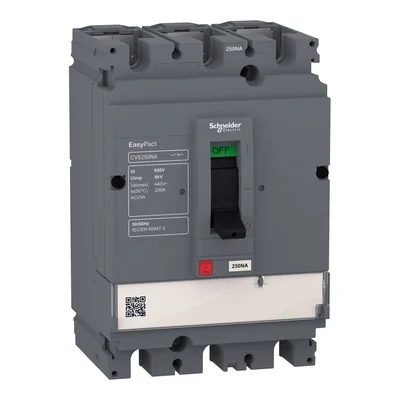

Easypact CVS250NA 250A 3P switch disconnector LV525425

local index:
ALI027SCHN
Catalog No:
LV525425
EAN code:
3606480239236
Price:
489,61 €
gross / pcs.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
From 3,69 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Easypact CVS250NA 250A 3P switch disconnector

Technical data

  • Number of poles
    3

Other technical data

  • Version as main switch
    yes
  • Version as safety switch
    no
  • Version as reversing switch
    no
  • Max. rated operation voltage Ue AC
    440 V
  • Rated permanent current Iu
    250 A
  • Rated short-time withstand current lcw
    3.5 kA
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    4
  • Motor drive integrated
    no
  • Device construction
    Built-in device fixed built-in technique
  • Suitable for front mounting 4-hole
    yes
  • Suitable for distribution board installation
    yes
  • Colour control element
    Black
  • Interlockable
    yes
  • Degree of protection (IP), front side
    IP40
  • Version as maintenance-/service switch
    no
  • Version as emergency stop installation
    no
  • Number of switches
    1
  • Rated operating voltage
    220 ... 440 V
  • Rated permanent current at AC-23, 400 V
    250 A
  • Number of poles
    3
  • Number of auxiliary contacts as normally open contact
    0
  • Motor drive optional
    no
  • Voltage release optional
    no
  • Suitable for floor mounting
    no
  • Suitable for front mounting centre
    yes
  • Suitable for intermediate mounting
    yes
  • Type of control element
    Toggle
  • Type of electrical connection of main circuit
    Screw connection

Catalog cards, diagrams, certificates
