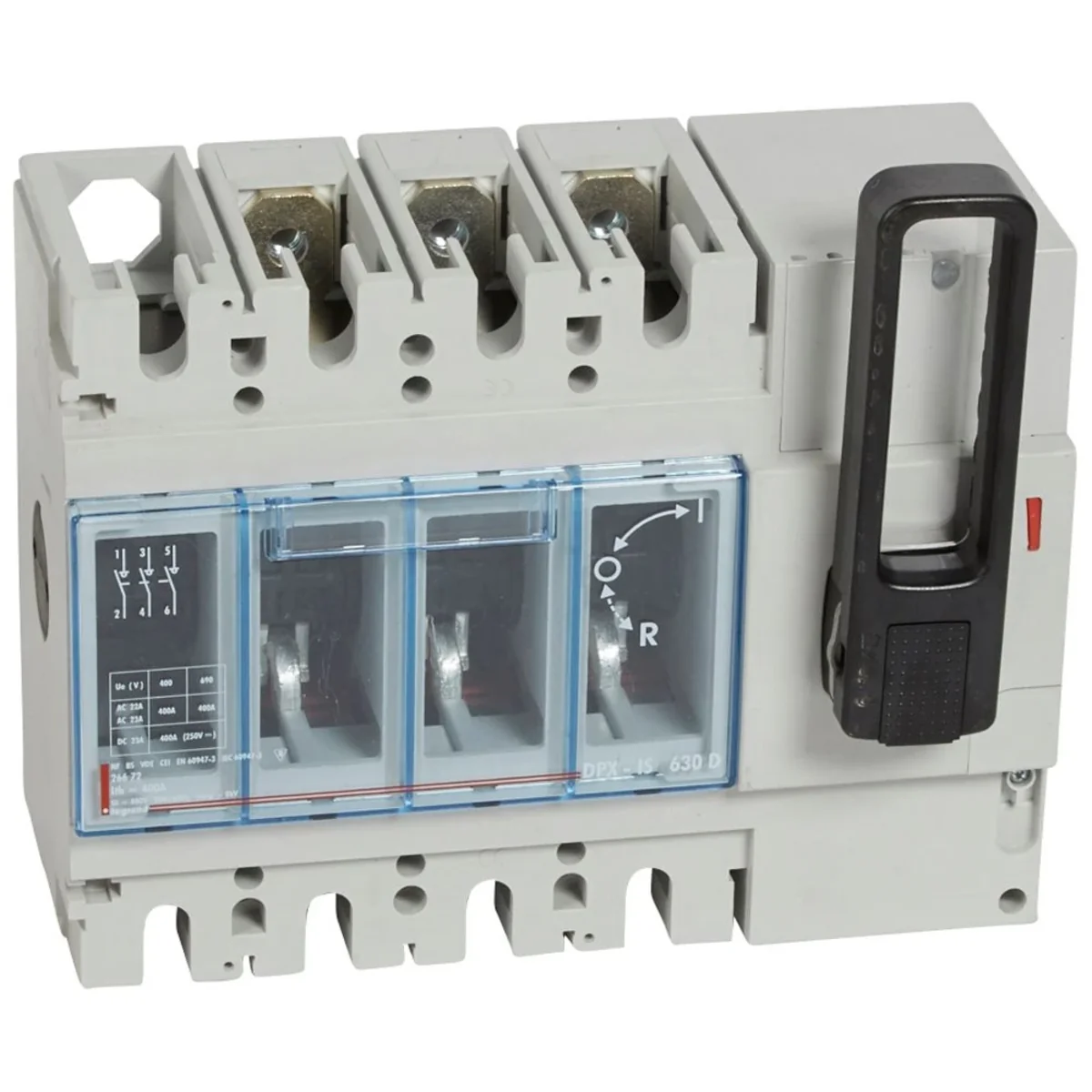

DPX-IS 630 3P 400 A SWITCH FRONT RELEASE 026672

Index local:
ALM015LEGR
Numéro de catalogue:
026672
Code EAN:
3245060266721
Producteur: LEGRAND
Prix:
7 602,93 zł
gross / pcs.
(y compris la TVA 23%)
jusqu'à 4 semaines
Sur commande
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Données techniques

  • PKWIU
    27.12.23.0

Autres données techniques

  • Version as main switch
    Yes
  • Version as safety switch
    Yes
  • Version as reversing switch
    No
  • Rated operating voltage
    230 ... 690 V
  • Rated permanent current at AC-21, 400 V
    400 A
  • Rated operation power at AC-23, 400 V
    160 kW
  • Number of poles
    3
  • Number of auxiliary contacts as normally open contact
    0
  • Motor drive optional
    No
  • Voltage release optional
    Yes
  • Suitable for floor mounting
    Yes
  • Suitable for front mounting centre
    No
  • Suitable for intermediate mounting
    No
  • Type of control element
    Turn button
  • Type of electrical connection of main circuit
    Screw connection
  • Version as maintenance-/service switch
    Yes
  • Version as emergency stop installation
    Yes
  • Max. rated operation voltage Ue AC
    690 V
  • Rated permanent current Iu
    400 A
  • Rated short-time withstand current lcw
    15 kA
  • Conditioned rated short-circuit current Iq
    100 kA
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    4
  • Motor drive integrated
    No
  • Device construction
    Complete device in housing
  • Suitable for front mounting 4-hole
    Yes
  • Suitable for distribution board installation
    Yes
  • Colour control element
    Black
  • Interlockable
    Yes
  • Degree of protection (IP), front side
    IP20

Détails du fabricant

  • Producteur
    Legrand Polska Sp. z o.o.
  • Adresse
    57-200 Ząbkowice Śląskie Waryńskiego 20 Polska

Emballage en vrac

Une sorte de paquet Karton Paleta
Quantité 1 pcs. 8 pcs.
poids (kg) 7,513 60,104
Volume (m3) 0,029 0,442
Largeur (m) 0,340 1,200
Longueur (m) 0,205 0,368
Profondeur (m) 0,420 1,000
