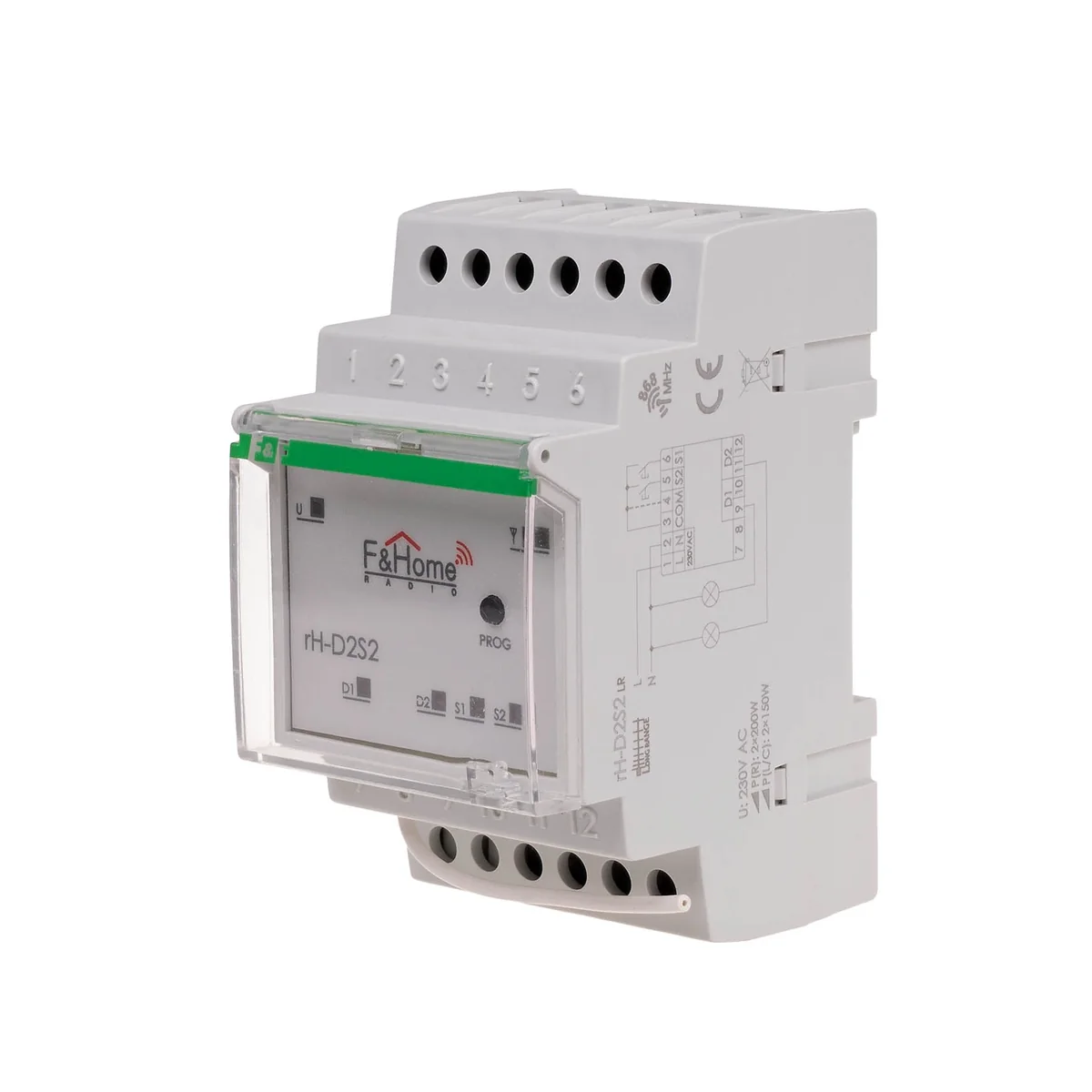

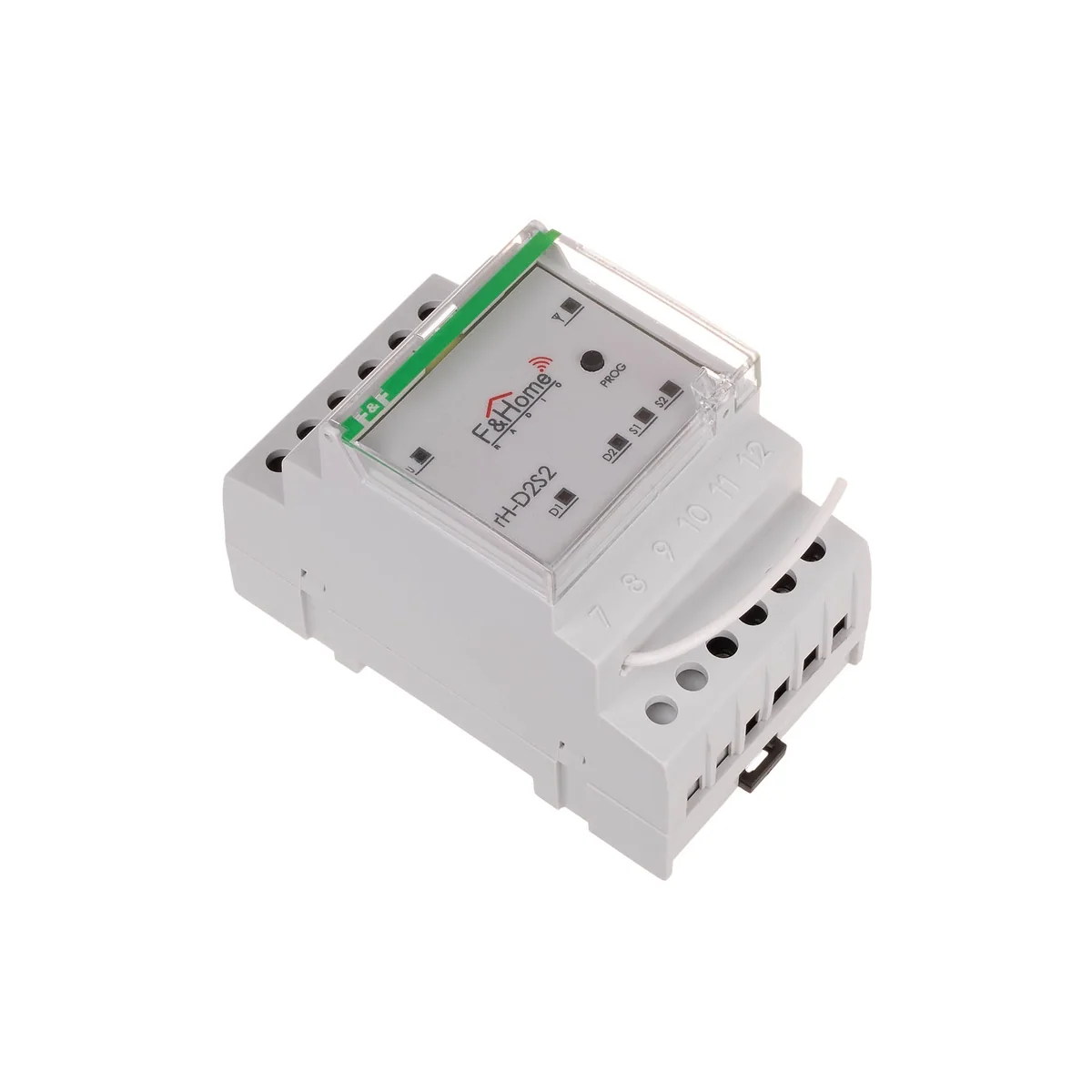

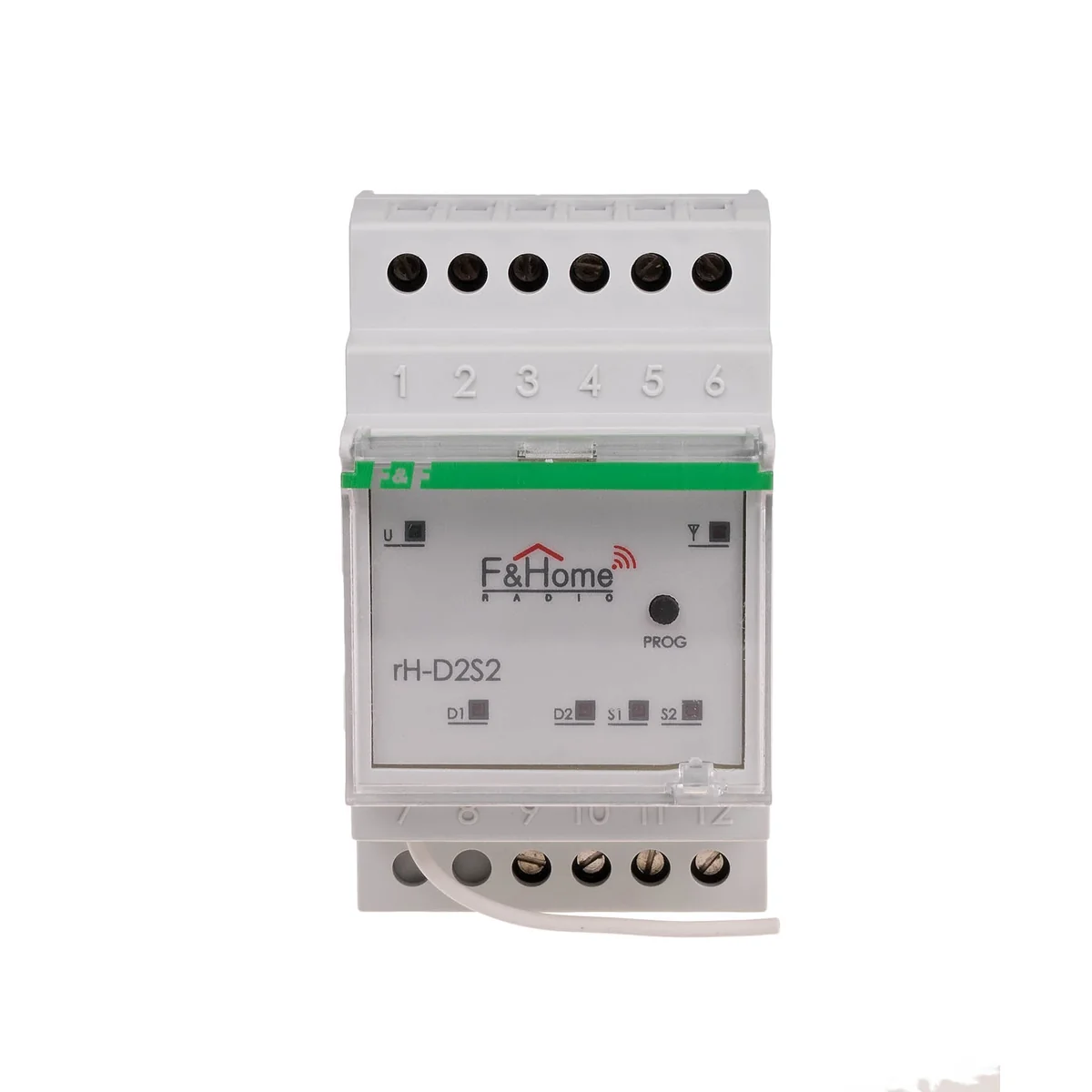

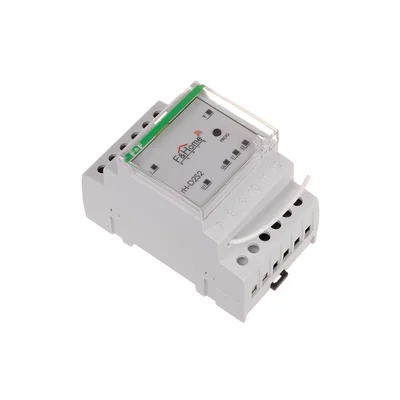

Double dimmer with double transmitter - Long Range RH-D2S2-LR

local index:
API029FIFQ
Catalog No:
RH-D2S2-LR
EAN code:
5908312597841
Manufacturer: F&F
Number of outputs: 2
Output power [W]: 200
Control pulse current [mA]: 2000
Price:
146,31 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

rH-D2S2 two-channel dimmer with two-channel transmitter is a combination of two dimmers and two contact inputs. The module sends information about contact closure or opening to the system and controls two AC230V receivers. Communication with the server takes place via radio. The module has two physical inputs for connecting two monostable potential-free contacts, and two inputs for connecting receivers. The power input load can be resistive (incandescent lamps), inductive (AC motors and transformers) and capacitive (fluorescent lamps). Power regulation is based on phase modulation with switching off in phase, in the range of 0-100%.

Technical data

  • Number of outputs
    2
  • Control pulse current [mA]
    2000
  • Family
    F&HOME RADIO
  • Voltage Range [V]
    85-250
  • Package width [mm]
    80
  • Indicator
    LED
  • Output power [W]
    200
  • Type of load
    capacitive
  • Level of security
    IP20
  • Package height [mm]
    80
  • Package weight [kg]
    0.3
  • PKWIU
    27.12.24.0

Other technical data

  • Bus system KNX
    No
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Model
    Dimming actuator
  • Width in number of modular spacings
    3
  • Substation input
    No
  • With LED indication
    Yes
  • Power boost suitable
    No
  • Max. control current
    2000 mA
  • Parallel-service possible
    No
  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Other bus systems
    Other
  • Mounting method
    DRA (DIN-rail adapter)
  • With bus connection
    No
  • Local operation/hand operation
    Yes
  • Number of outputs
    2
  • Type of load
    Capacitive
  • Voltage
    85 ... 250 V
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,280
