el12 Automation Relays and drivers Other automation elements Direct start, MSC-D-4-M7(24VDC)

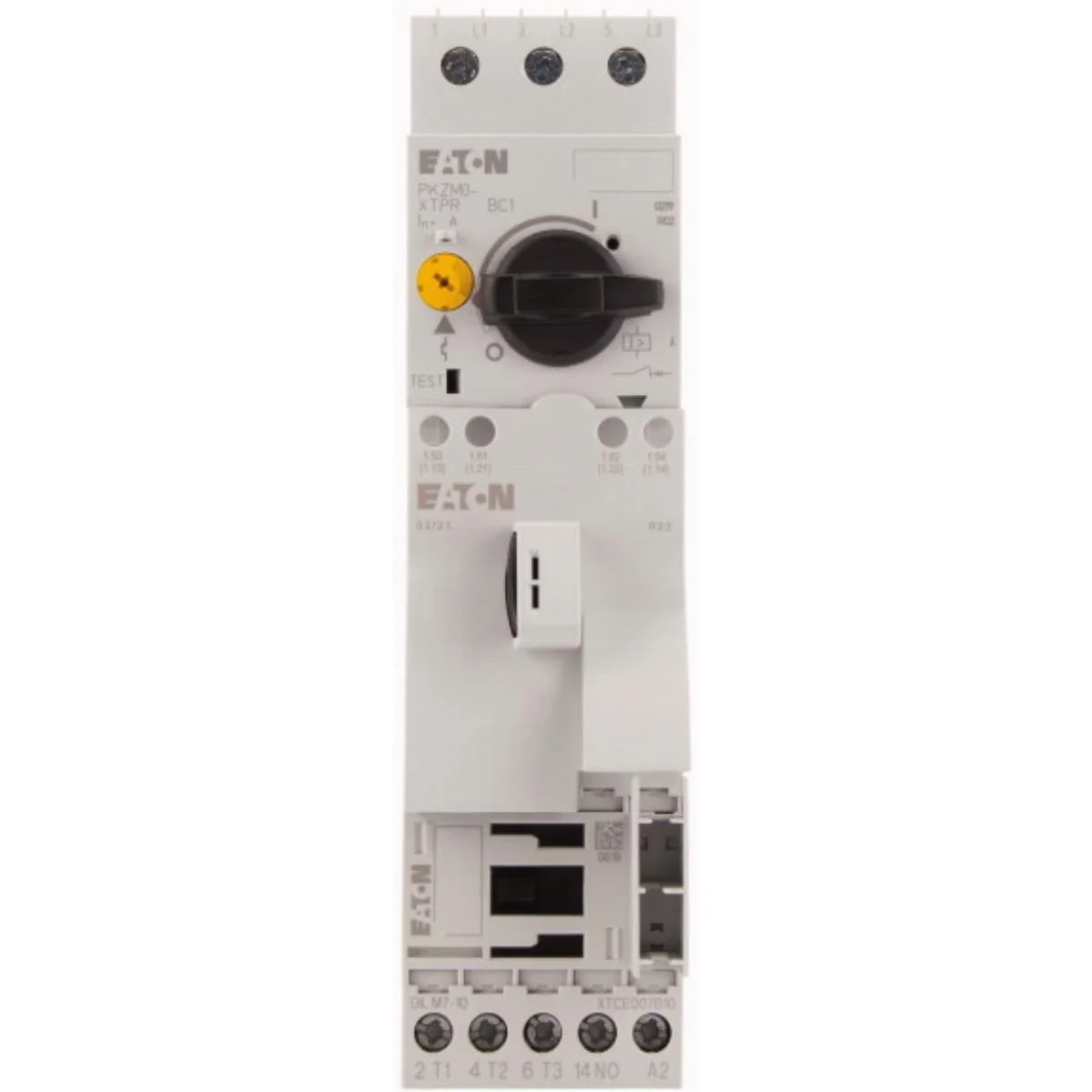

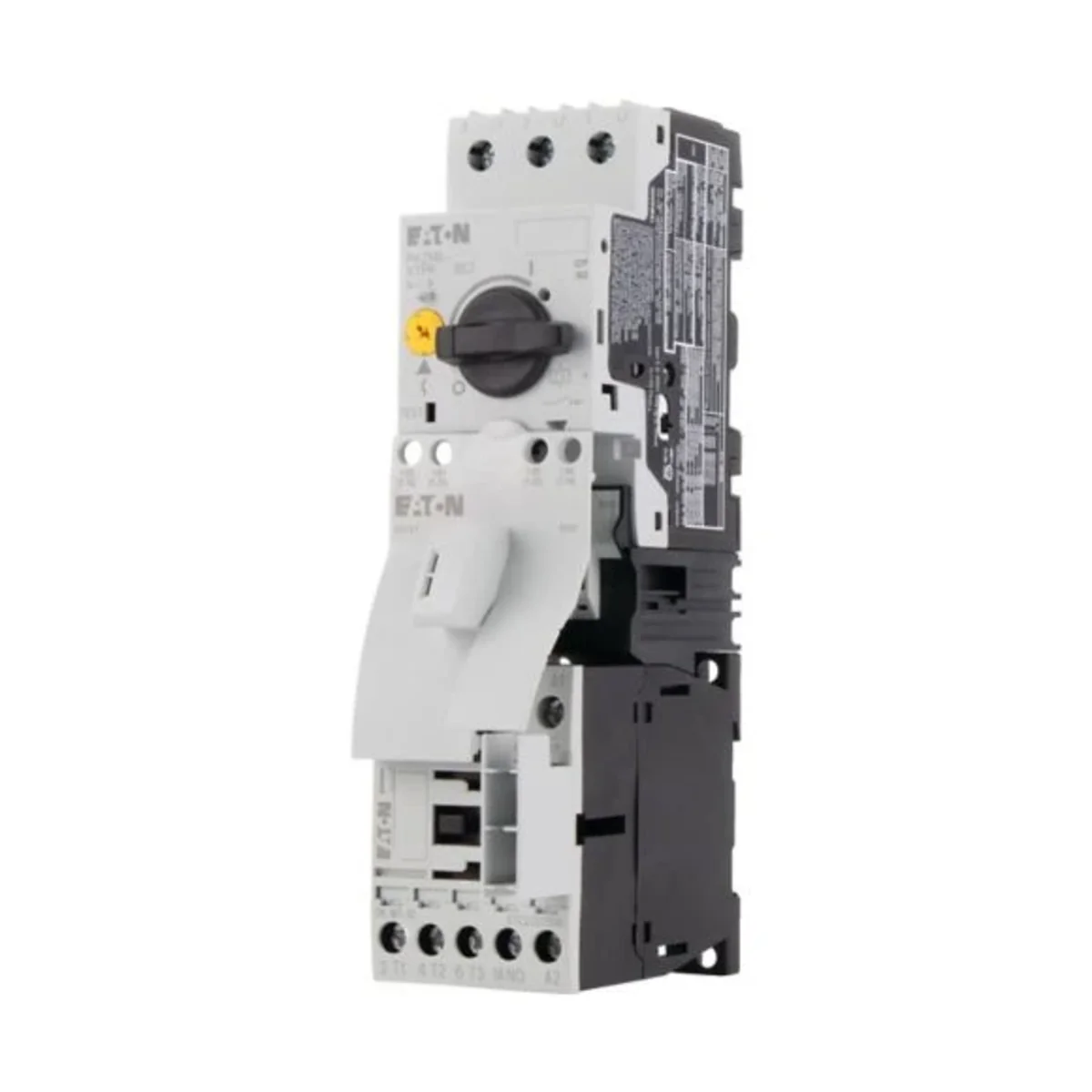

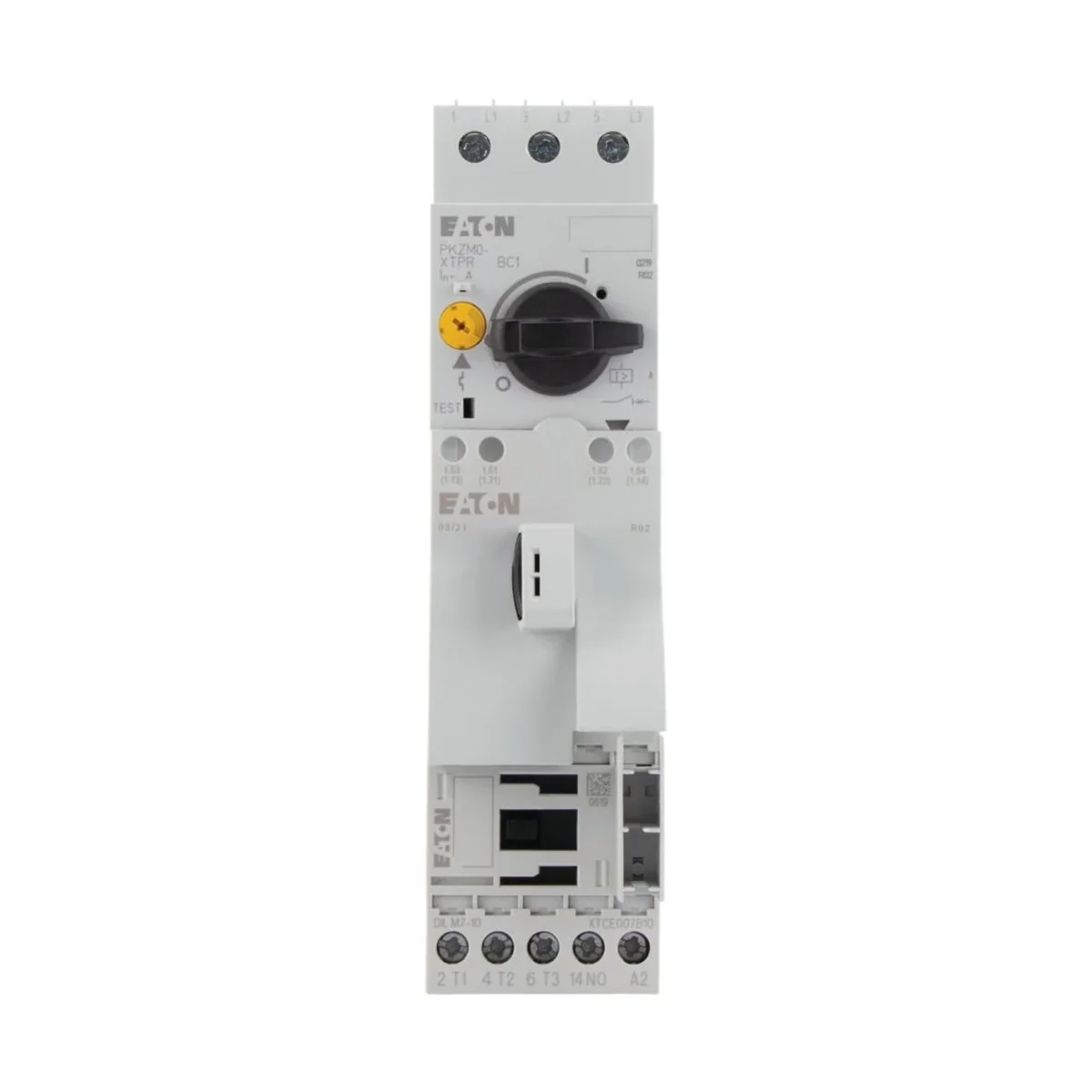

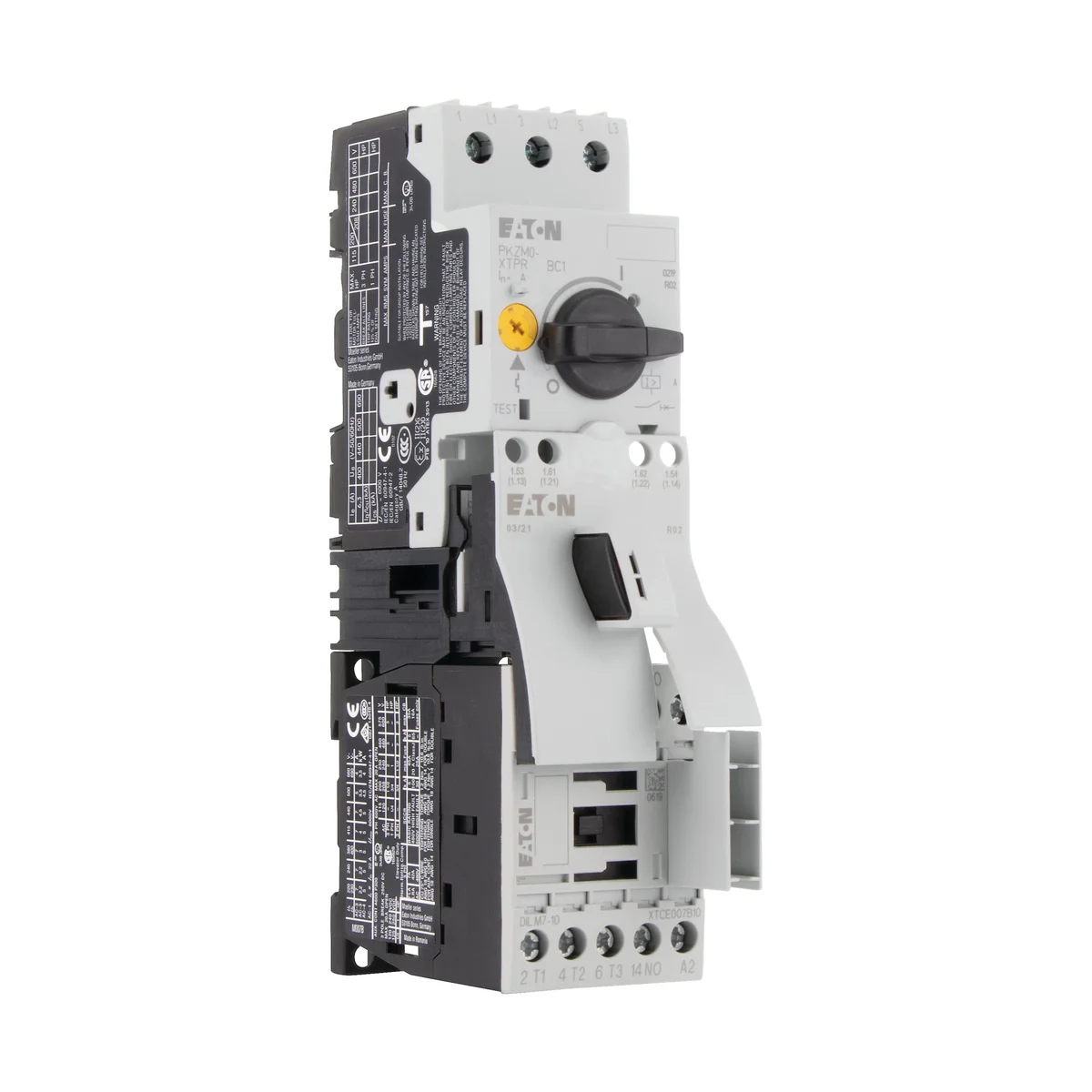

Direct start, MSC-D-4-M7(24VDC)
Direct start, MSC-D-4-M7(24VDC)
Direct start, MSC-D-4-M7(24VDC)
Direct start, MSC-D-4-M7(24VDC)

Click on the photo to enlarge

Direct start, MSC-D-4-M7(24VDC)
Direct start, MSC-D-4-M7(24VDC)
Direct start, MSC-D-4-M7(24VDC)
Direct start, MSC-D-4-M7(24VDC)
EATON

Direct start, MSC-D-4-M7(24VDC) 283162

local index:
API013MOEL
Catalog No:
283162
EAN code:
4015082831622
Price:
161,84 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,45 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

Motor starter. Control voltage 24 V DC.

Print the product sheet Report an error

Technical data

  • Power [kW]
    1.5
  • Control voltage [V]
    24

Other technical data

  • Type of motor starter
    Direct online starter (DOL)
  • Rated control supply voltage AC 50 Hz
    0 ... 0 V
  • Rated control supply voltage DC
    24 ... 24 V
  • Rated operation power at AC-3, 230 V, 3-phase
    0.75 kW
  • Rated power, 460 V, 60 Hz, 3-phase
    0 kW
  • Rated operation current Ie
    3.6 A
  • Overload release current setting
    2.5 ... 4 A
  • Rated conditional short-circuit current, type 1, 600 Y/347 V
    0 A
  • Rated conditional short-circuit current, type 2, 400 V
    50000 A
  • Number of auxiliary contacts as normally closed contact
    0
  • Temperature compensated overload protection
    yes
  • Type of electrical connection of main circuit
    Screw connection
  • Rail mounting possible
    yes
  • Number of command positions
    0
  • Coordination class according to IEC 60947-4-3
    Class 2
  • External reset possible
    no
  • Degree of protection (IP)
    IP20
  • Supporting protocol for TCP/IP
    no
  • Supporting protocol for CAN
    no
  • Supporting protocol for ASI
    no
  • Supporting protocol for Data-Highway
    no
  • Supporting protocol for SUCONET
    no
  • Supporting protocol for PROFINET IO
    no
  • Supporting protocol for SERCOS
    no
  • Supporting protocol for EtherNet/IP
    no
  • Supporting protocol for DeviceNet Safety
    no
  • Supporting protocol for PROFIsafe
    no
  • Supporting protocol for other bus systems
    no
  • Height
    180 mm
  • With short-circuit release
    yes
  • Rated control supply voltage AC 60 Hz
    0 ... 0 V
  • Voltage type for actuating
    DC
  • Rated operation power at AC-3, 400 V
    1.5 kW
  • Rated power, 575 V, 60 Hz, 3-phase
    0 kW
  • Rated operation current at AC-3, 400 V
    4 A
  • Rated conditional short-circuit current, type 1, 480 Y/277 V
    0 A
  • Rated conditional short-circuit current, type 2, 230 V
    50000 A
  • Number of auxiliary contacts as normally open contact
    1
  • Ambient temperature, upper operating limit
    55 °C
  • Release class
    CLASS 10
  • Type of electrical connection for auxiliary- and control current circuit
    Screw connection
  • With transformer
    no
  • Suitable for emergency stop
    no
  • Number of indicator lights
    0
  • With fuse
    no
  • Degree of protection (NEMA)
    Other
  • Supporting protocol for PROFIBUS
    no
  • Supporting protocol for INTERBUS
    no
  • Supporting protocol for Modbus
    no
  • Supporting protocol for DeviceNet
    no
  • Supporting protocol for LON
    no
  • Supporting protocol for PROFINET CBA
    no
  • Supporting protocol for Foundation Fieldbus
    no
  • Supporting protocol for AS-Interface Safety at Work
    no
  • Supporting protocol for INTERBUS-Safety
    no
  • Supporting protocol for SafetyBUS p
    no
  • Width
    45 mm
  • Depth
    95 mm
