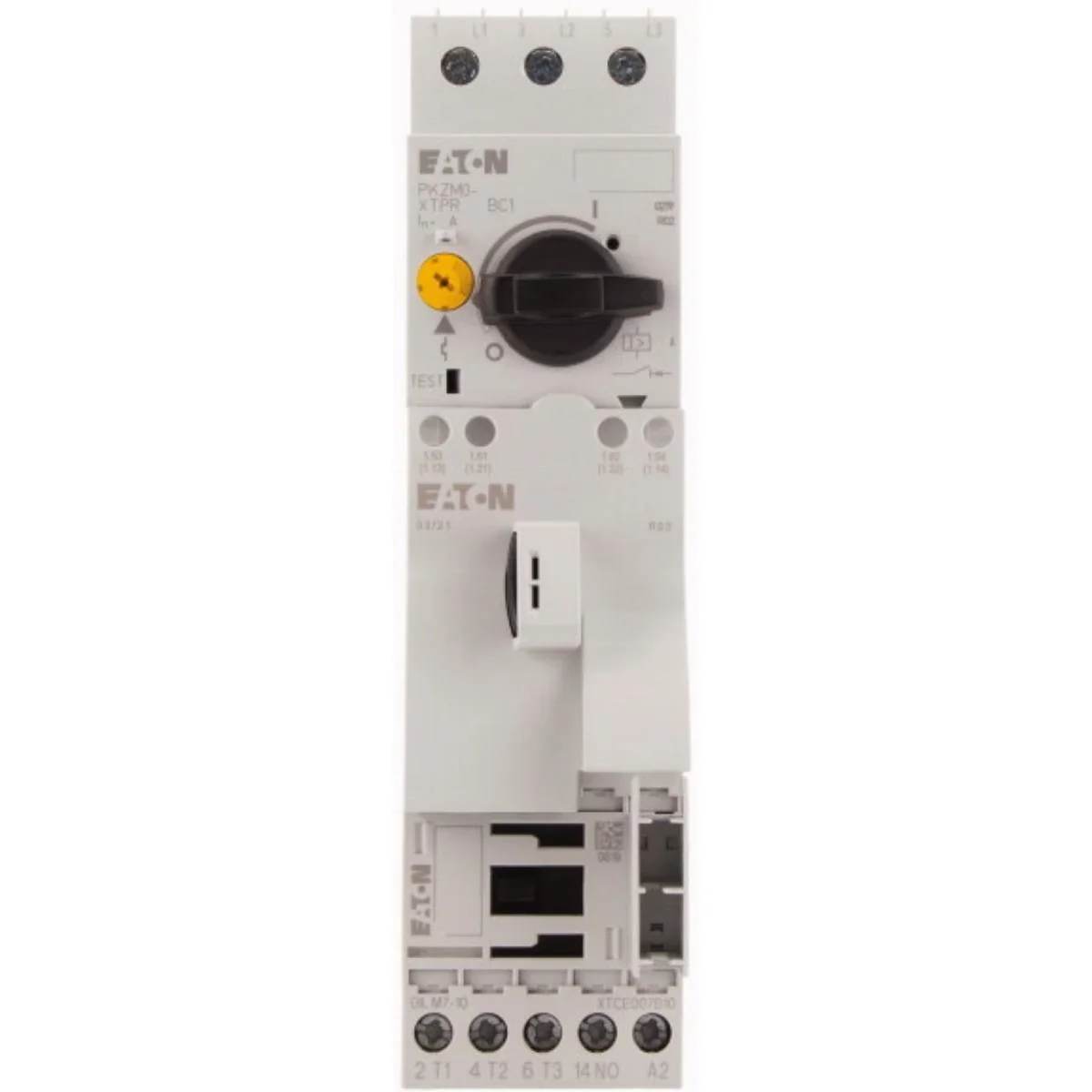

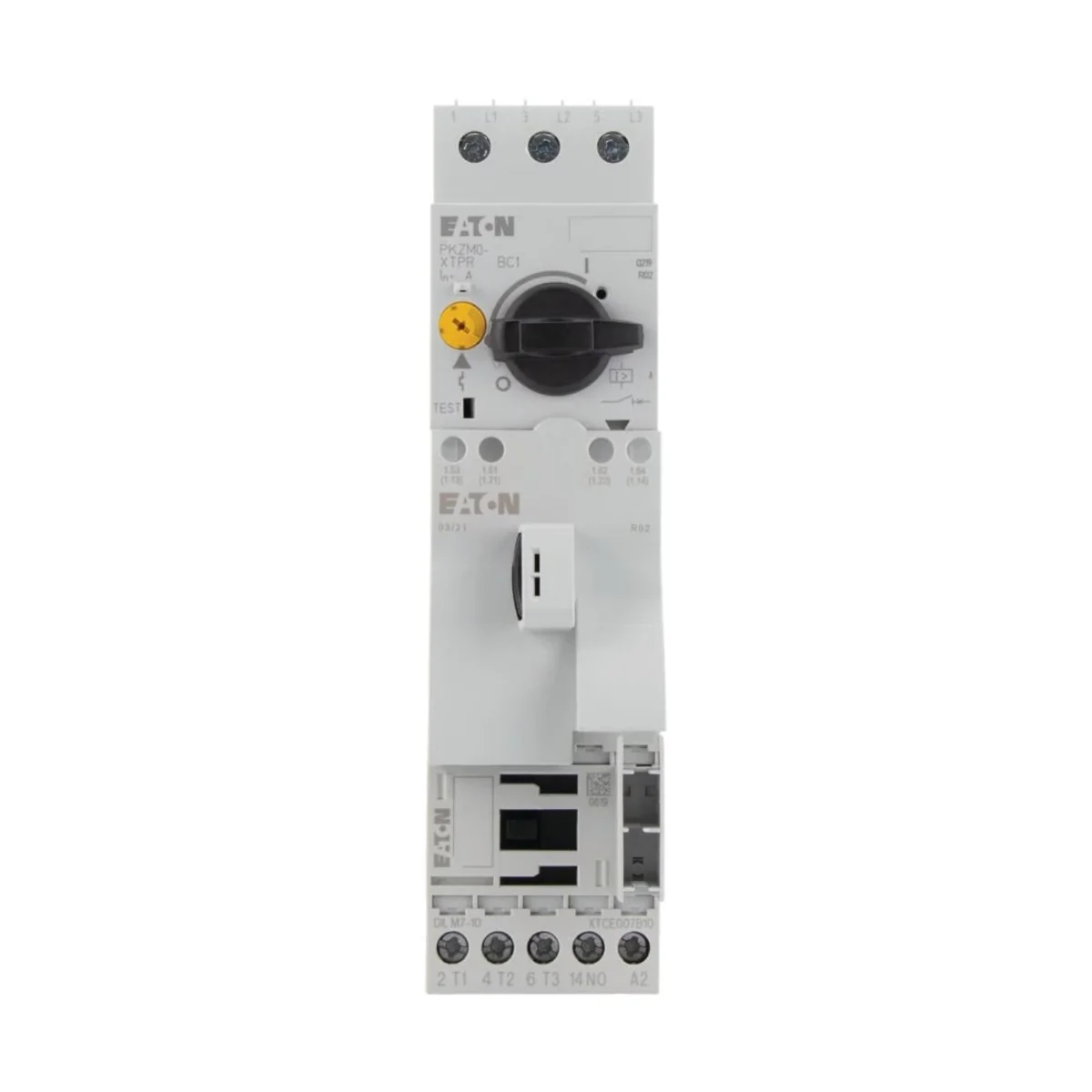

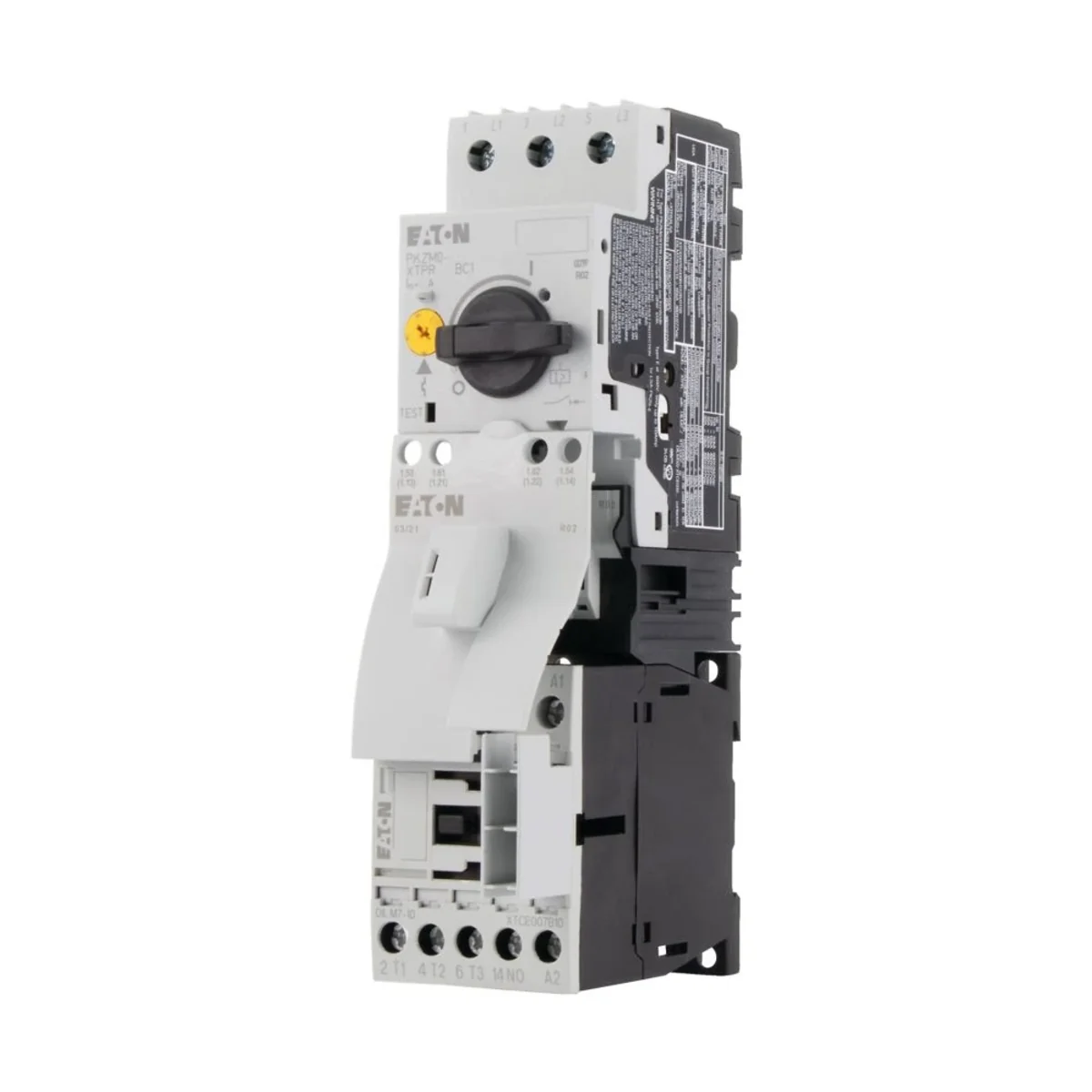

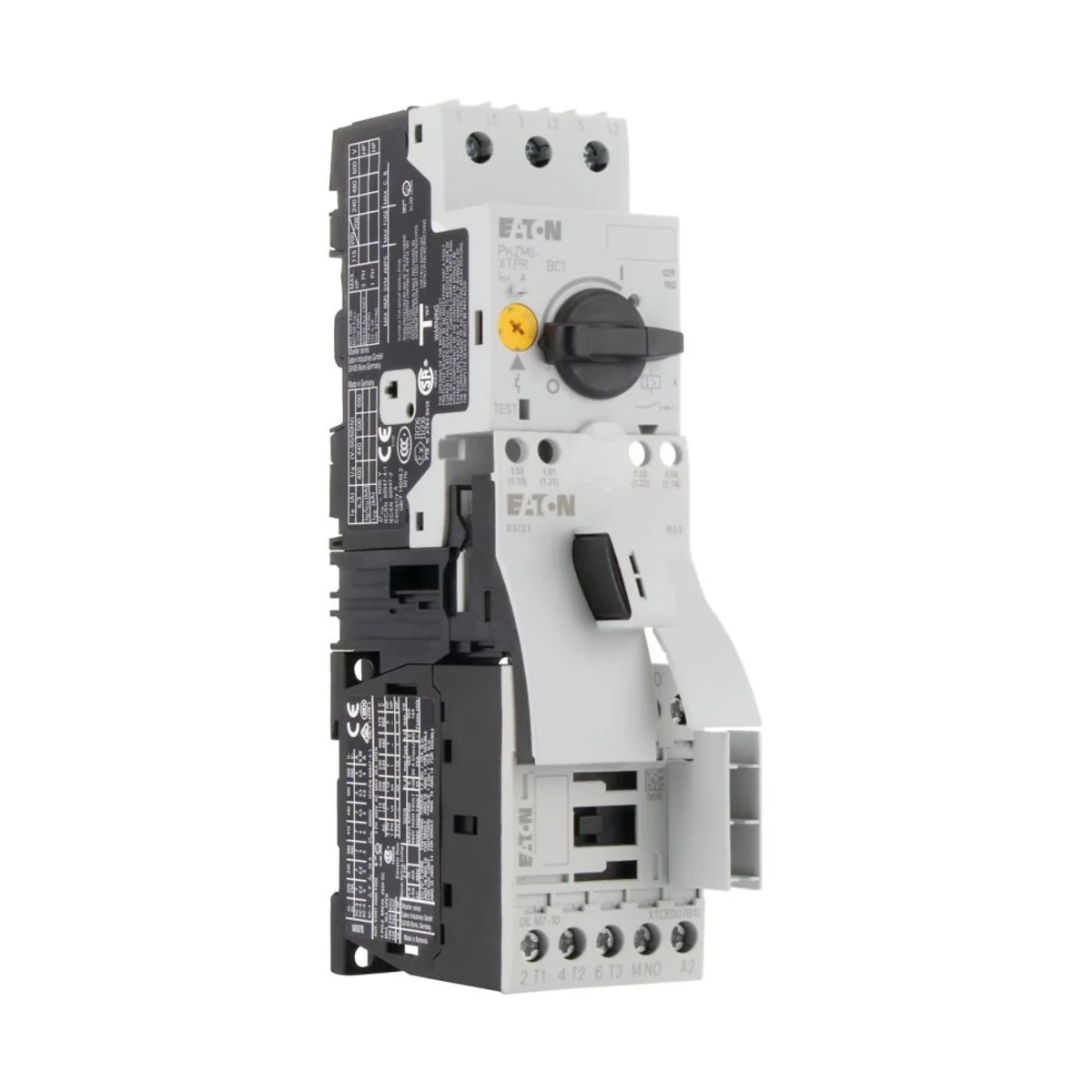

Direct Start, MSC-D-1,6-M7(230V50HZ) 283140

local index:
API022MOEL
Catalog No:
283140
EAN code:
4015082831400
Manufacturer: EATON
Power [kW]: 0.37 / 0.55
Current setting range [A] to: 1.6
Current setting range [A] from: 1
Price:
147,16 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

MSC Direct Start Kits
• Short-circuit release fixed at 14 x In
• Used for 3-phase motors (AC-3, 400V)
• The voltage of the contactor control coil is 230V 50HZ, 240V 60HZ
• Mechanical and electrical connector included

Technical data

  • Power [kW]
    0.37 / 0.55
  • Current setting range [A] from
    1
  • Current setting range [A] to
    1.6

Other technical data

  • Type of motor starter
    Direct online starter (DOL)
  • Rated control supply voltage AC 50 Hz
    230 ... 230 V
  • Rated control supply voltage DC
    0 ... 0 V
  • Rated operation power at AC-3, 230 V, 3-phase
    0.25 kW
  • Rated power, 460 V, 60 Hz, 3-phase
    0 kW
  • Rated operation current Ie
    1.5 A
  • Overload release current setting
    1 ... 1.6 A
  • Rated conditional short-circuit current, type 1, 600 Y/347 V
    0 A
  • Rated conditional short-circuit current, type 2, 400 V
    50000 A
  • Number of auxiliary contacts as normally closed contact
    0
  • Temperature compensated overload protection
    yes
  • Type of electrical connection of main circuit
    Screw connection
  • Rail mounting possible
    yes
  • Number of command positions
    0
  • Coordination class according to IEC 60947-4-3
    Class 2
  • External reset possible
    no
  • Degree of protection (IP)
    IP20
  • Supporting protocol for TCP/IP
    no
  • Supporting protocol for CAN
    no
  • Supporting protocol for ASI
    no
  • Supporting protocol for Data-Highway
    no
  • Supporting protocol for SUCONET
    no
  • Supporting protocol for PROFINET IO
    no
  • Supporting protocol for SERCOS
    no
  • Supporting protocol for EtherNet/IP
    no
  • Supporting protocol for DeviceNet Safety
    no
  • Supporting protocol for PROFIsafe
    no
  • Supporting protocol for other bus systems
    no
  • Height
    180 mm
  • With short-circuit release
    yes
  • Rated control supply voltage AC 60 Hz
    0 ... 0 V
  • Voltage type for actuating
    AC
  • Rated operation power at AC-3, 400 V
    0.55 kW
  • Rated power, 575 V, 60 Hz, 3-phase
    0 kW
  • Rated operation current at AC-3, 400 V
    1.6 A
  • Rated conditional short-circuit current, type 1, 480 Y/277 V
    0 A
  • Rated conditional short-circuit current, type 2, 230 V
    50000 A
  • Number of auxiliary contacts as normally open contact
    1
  • Ambient temperature, upper operating limit
    55 °C
  • Release class
    CLASS 10 A
  • Type of electrical connection for auxiliary- and control current circuit
    Screw connection
  • With transformer
    no
  • Suitable for emergency stop
    no
  • Number of indicator lights
    0
  • With fuse
    no
  • Degree of protection (NEMA)
    Other
  • Supporting protocol for PROFIBUS
    no
  • Supporting protocol for INTERBUS
    no
  • Supporting protocol for Modbus
    no
  • Supporting protocol for DeviceNet
    no
  • Supporting protocol for LON
    no
  • Supporting protocol for PROFINET CBA
    no
  • Supporting protocol for Foundation Fieldbus
    no
  • Supporting protocol for AS-Interface Safety at Work
    no
  • Supporting protocol for INTERBUS-Safety
    no
  • Supporting protocol for SafetyBUS p
    no
  • Width
    45 mm
  • Depth
    95 mm

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,628
Volume (m3) 0,001
Width (m) 0,047
Length (m) 0,111
Depth (m) 0,192
