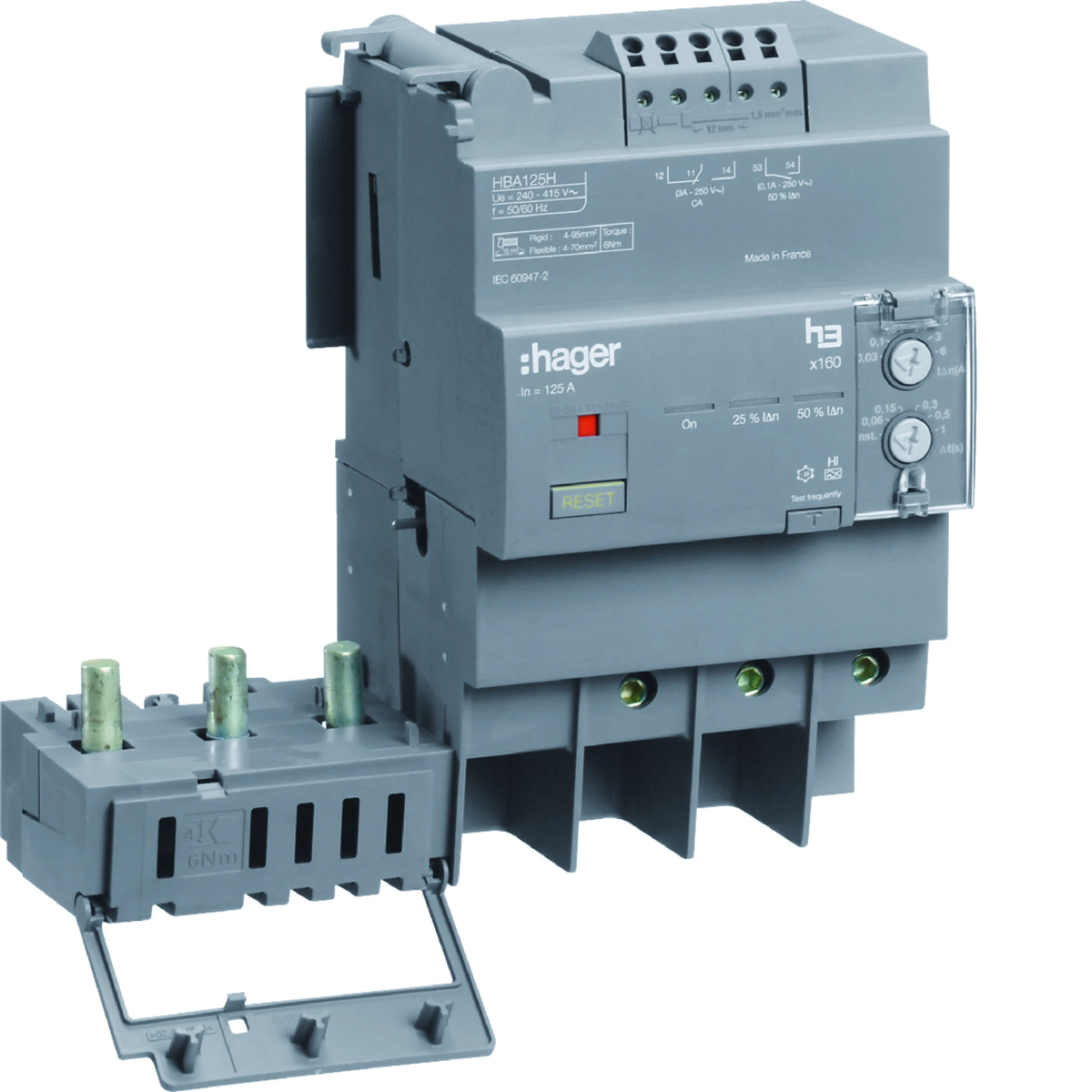

Differential-current block. 3P 125A adjustable HBA125H

local index:
ALA026HAGE
Catalog No:
HBA125H
EAN code:
3250613121051
Manufacturer: HAGER
Number of poles: 3
Surge voltage [kV]: 6000
Rated insulation voltage [V]: 500
Price:
788,26 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Residual current blocks, HI type adjustable IΔn sensitivity from 30 mA to 6 A, adjustable time delay from 6 ms to 1 s, 25% and 50% Iδn indication.

Technical data

  • Number of poles
    3
  • Rated insulation voltage [V]
    500
  • power loss [W]
    21
  • Surge voltage [kV]
    6000
  • Rated current [A]
    125
  • PKWIU
    27.12.23.0

Other technical data

  • Nominal voltage
    220 ... 415 V
  • Rated fault current adjustable
    Yes
  • Max. delay time
    1000 ms
  • Number of poles
    3
  • Frequency
    50/60 Hz
  • Rated impulse withstand voltage Uimp
    6 kV
  • Connectable conductor cross section multi-wired
    2.5 ... 70 mm²
  • With interlocking device
    Yes
  • Pollution degree
    3
  • Nominal current
    125 A
  • Rated fault current
    0.03 ... 6 A
  • Delay adjustable
    Yes
  • Surge current capacity
    5 kA
  • Rated insulation voltage Ui
    500 V
  • Connectable conductor cross section solid-core
    2.5 ... 95 mm²
  • Anti-nuisance tripping version
    Yes
  • Degree of protection (IP)
    IP40
  • Ambient temperature during operating
    -25 ... 70 °C

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 100 pcs.
Weight (kg) 1,374 1,375 160,500
Width (m) 0,175 0,245 0,800
Length (m) 0,107 0,120 1,050
Depth (m) 0,165 0,265 1,200
