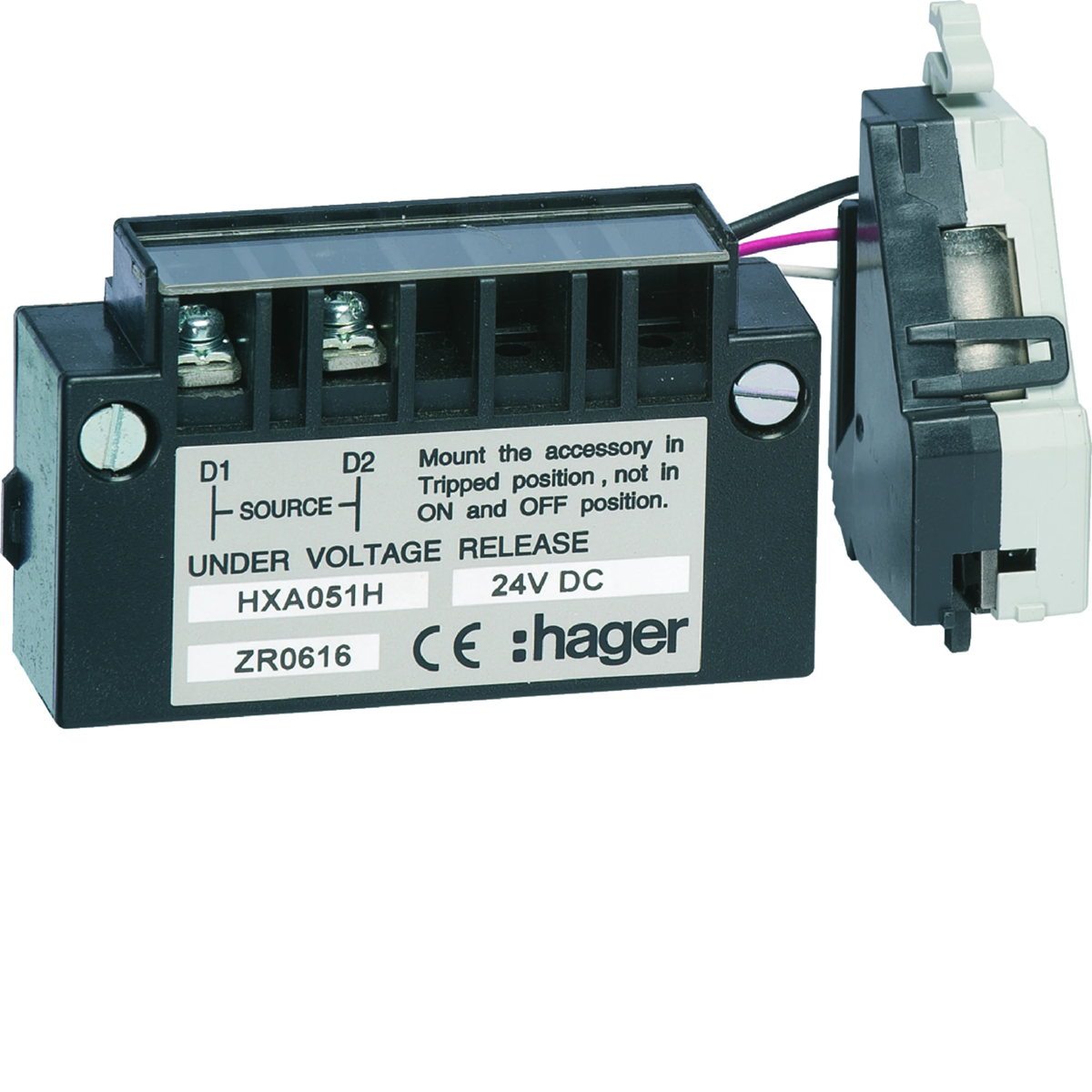

Delayed undervoltage release x160-x250 24VDC HXA051H
local index:
ALA163HAGE
Catalog No:
HXA051H
EAN code:
3250613346539
Manufacturer:
HAGER
Maximum input power [VA]: 0.56
DC operating voltage [V]: 24
Level of security: IP4X
Price:
90,26 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Delayed undervoltage release:
- size: x160-x250
- rated operating voltage Un (DC): 24V
Technical data
-
Maximum input power [VA]0.56
-
Level of securityIP4X
-
Connection typeQuick Connect
-
DC operating voltage [V]24
-
power loss [W]0.6
-
PKWIU27.12.24.0
Other technical data
-
Rated control supply voltage AC 50 Hz0 ... 0 V
-
Rated control supply voltage DC24 ... 24 V
-
Type of electric connectionSpring clamp connection
-
Number of contacts as normally closed contact0
-
DelayedYes
-
Suitable for off-load switchYes
-
Suitable for overload relayNo
-
Rated control supply voltage AC 60 Hz0 ... 0 V
-
Voltage type for actuatingDC
-
Number of contacts as normally open contact0
-
Number of contacts as change-over contact0
-
Suitable for power circuit breakerYes
-
Suitable for motor safety switchNo
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
Tax identification number6460015532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta |
| Quantity | 1 pcs. | 36 pcs. | 864 pcs. |
| Weight (kg) | 0,145 | 5,495 | 154,880 |
| Width (m) | 0,075 | 0,315 | 0,800 |
| Length (m) | 0,065 | 0,215 | 1,020 |
| Depth (m) | 0,090 | 0,360 | 1,200 |
