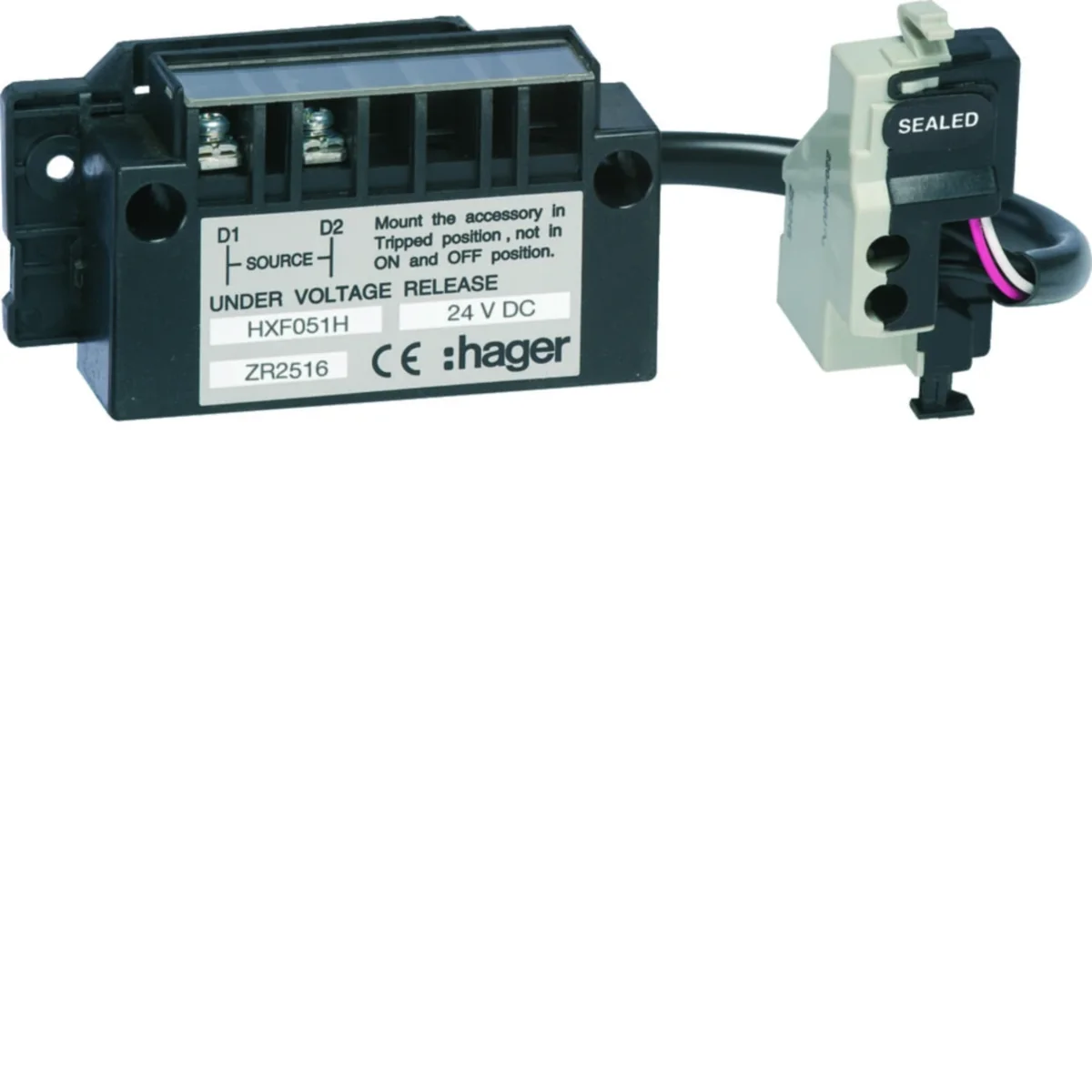

Delayed undervoltage release h800-h1600 4P 24VDC HXF051H

local index:
ALA198HAGE
Catalog No:
HXF051H
EAN code:
3250613152376
Manufacturer: HAGER
Maximum input power [VA]: 0.7
DC operating voltage [V]: 24
Level of security: IP4X
Price:
220,17 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Time delay undervoltage release:

  • size: h800-h1600
  • rated operating voltage Un (DC): 24 V
  • 4-pole

Technical data

  • Maximum input power [VA]
    0.7
  • Level of security
    IP4X
  • Connection type
    With a screw
  • DC operating voltage [V]
    24
  • power loss [W]
    0.7
  • PKWIU
    27.12.24.0

Other technical data

  • Rated control supply voltage AC 50 Hz
    0 ... 0 V
  • Rated control supply voltage DC
    24 ... 24 V
  • Type of electric connection
    Screw connection
  • Number of contacts as normally closed contact
    0
  • Delayed
    Yes
  • Suitable for off-load switch
    Yes
  • Suitable for overload relay
    No
  • Rated control supply voltage AC 60 Hz
    0 ... 0 V
  • Voltage type for actuating
    DC
  • Number of contacts as normally open contact
    0
  • Number of contacts as change-over contact
    0
  • Suitable for power circuit breaker
    Yes
  • Suitable for motor safety switch
    No

Bulk packaging

A kind of package Pakiet Paleta Karton
Quantity 36 pcs. 864 pcs. 1 pcs. 1 pcs.
Weight (kg) 5,048 146,152 0,108 0,128
Width (m) 0,315 0,800 0,060 0,075
Length (m) 0,216 1,014 0,055 0,060
Depth (m) 0,365 1,200 0,090 0,090
