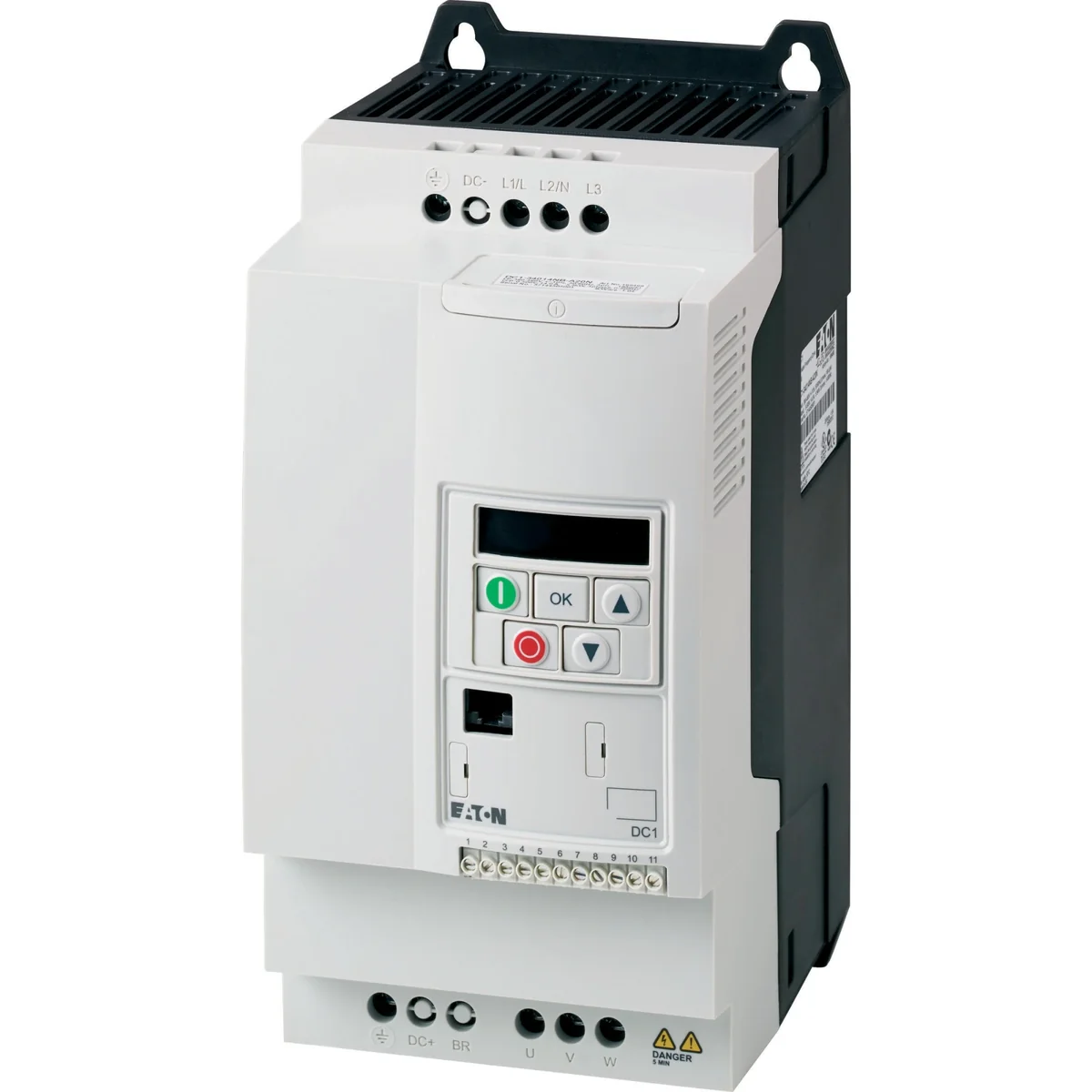

DC1-34014FB-A20CE1 DC1+ Inverter, 5.5kW, 3-phase 400V, IP20 185758
Lokaler Index:
API110MOEL
Katalognummer:
185758
EAN-Code:
4015081812578
Hersteller:
EATON
Preis:
3 474,75 zł
gross / stk.
(inklusive MwSt 23%)
Auf Bestellung
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Technische Daten
Weitere technische Daten
-
Mains voltage380 ... 480 V
-
Number of phases input3
-
Max. output frequency500 Hz
-
Nominal output current I2N14 A
-
Max. output at linear load at rated output voltage5.5 kW
-
Relative symmetric net voltage tolerance10 %
-
Number of analogue inputs2
-
Number of digital inputs4
-
Application in industrial area permittedYes
-
Supporting protocol for TCP/IPNo
-
Supporting protocol for CANYes
-
Supporting protocol for ASINo
-
Supporting protocol for ModbusYes
-
Supporting protocol for DeviceNetNo
-
Supporting protocol for LONNo
-
Supporting protocol for PROFINET CBANo
-
Supporting protocol for Foundation FieldbusNo
-
Supporting protocol for AS-Interface Safety at WorkNo
-
Supporting protocol for INTERBUS-SafetyNo
-
Supporting protocol for SafetyBUS pNo
-
Supporting protocol for other bus systemsYes
-
Number of interfaces PROFINET0
-
Number of HW-interfaces RS-4220
-
Number of HW-interfaces serial TTY0
-
Number of HW-interfaces parallel0
-
With optical interfaceNo
-
Integrated breaking resistanceYes
-
Type of converterU converter
-
Degree of protection (NEMA)Other
-
Width129 mm
-
Mains frequency50/60 Hz
-
Number of phases output3
-
Max. output voltage500 V
-
Max. output at quadratic load at rated output voltage5.5 kW
-
Relative symmetric net frequency tolerance10 %
-
Number of analogue outputs1
-
Number of digital outputs1
-
With control elementYes
-
Application in domestic- and commercial area permittedYes
-
Supporting protocol for PROFIBUSNo
-
Supporting protocol for INTERBUSNo
-
Supporting protocol for KNXNo
-
Supporting protocol for Data-HighwayNo
-
Supporting protocol for SUCONETNo
-
Supporting protocol for PROFINET IONo
-
Supporting protocol for SERCOSNo
-
Supporting protocol for EtherNet/IPYes
-
Supporting protocol for DeviceNet SafetyNo
-
Supporting protocol for PROFIsafeNo
-
Supporting protocol for BACnetNo
-
Number of HW-interfaces industrial Ethernet0
-
Number of HW-interfaces RS-2320
-
Number of HW-interfaces RS-4851
-
Number of HW-interfaces USB0
-
Number of HW-interfaces other0
-
With PC connectionYes
-
4-quadrant operation possibleYes
-
Degree of protection (IP)IP20
-
Height273 mm
-
Depth175 mm
Hersteller-Details
-
HerstellerEaton Electric Sp. z o.o.
-
Adresse80-299 Gdańsk Galaktyczna 30 Polska
-
E-Mail
Großpackungen
| Eine Art Paket | Skrzynia | Karton | Skrzynia | Karton |
| Menge | 1 stk. | 1 stk. | 1 stk. | 1 stk. |
| Gewicht (kg) | 6,000 | 6,290 | 6,000 | 6,290 |
| Volumen (m3) | 0,006 | 0,013 | 0,006 | 0,013 |
| Breite (m) | 0,131 | 0,168 | 0,131 | 0,168 |
| Länge (m) | 0,177 | 0,228 | 0,177 | 0,228 |
| Tiefe (m) | 0,275 | 0,338 | 0,275 | 0,338 |
