DC switch SW60-DC-50 50A 2-pole 1000VDC A9N61699
local index:
ALI042SCHN
Catalog No:
A9N61699
EAN code:
3606480504143
Manufacturer:
SCHNEIDER ELECTRIC
Color: White
Price:
69,47 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

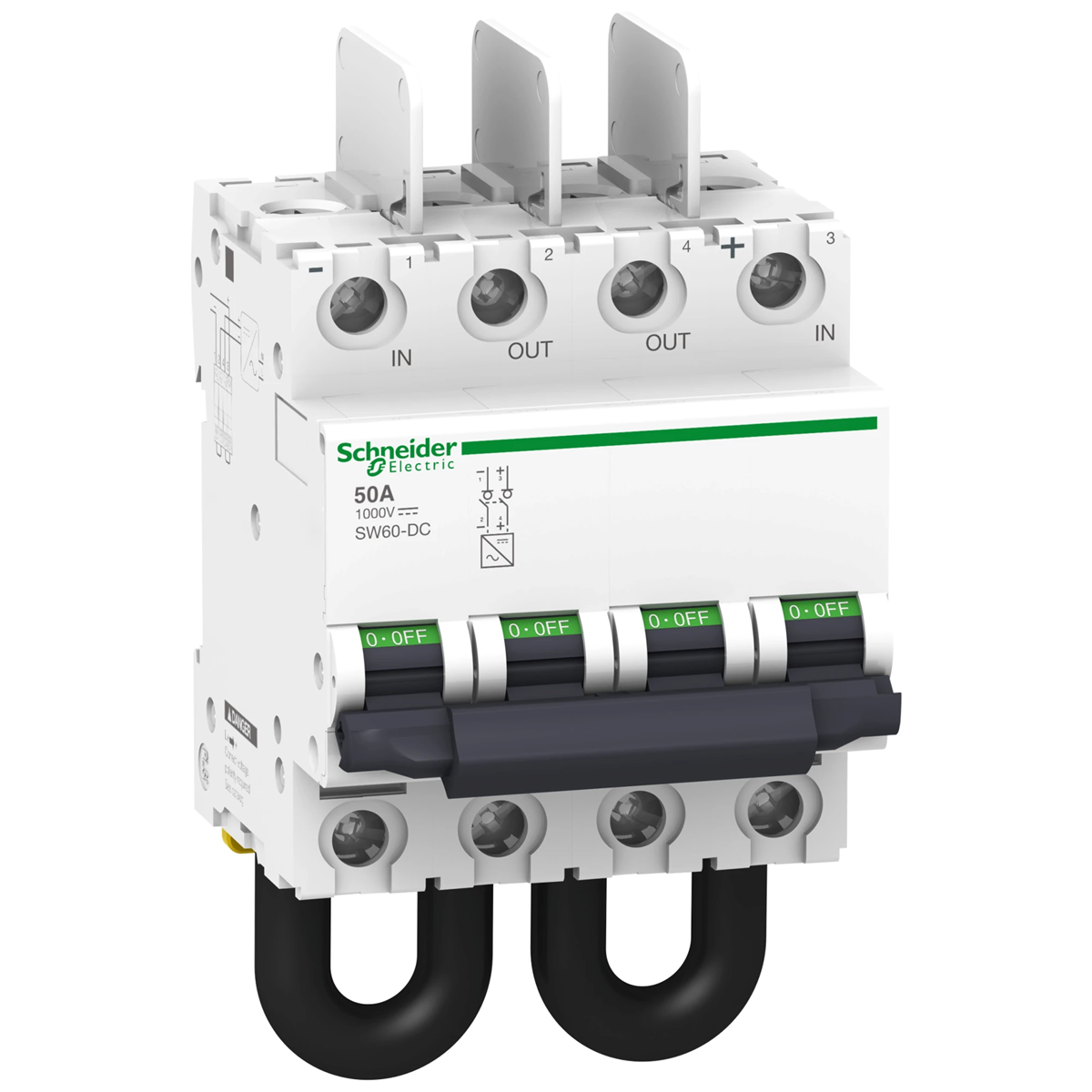

DC switch SW60-DC-50 50A 2-pole 1000VDC
Technical data
-
ColorWhite
-
PKWIU27.33.13.0
Other technical data
-
Switching functionOff switch
-
Number of contacts as normally closed contact0
-
Number of poles2
-
Rated voltage1000 V
-
Rated switching capacity1 kA
-
Voltage typeDC
-
Colour calotteBlack
-
Built-in depth77.4 mm
-
Number of contacts as normally open contact4
-
Number of contacts as change-over contact0
-
Rated current50 A
-
Min. rated voltage1000 V
-
Short-circuit breaking capacity (Icw)0.6 kA
-
With signal lampNo
-
Width in number of modular spacings4
-
Degree of protection (IP)IP20
