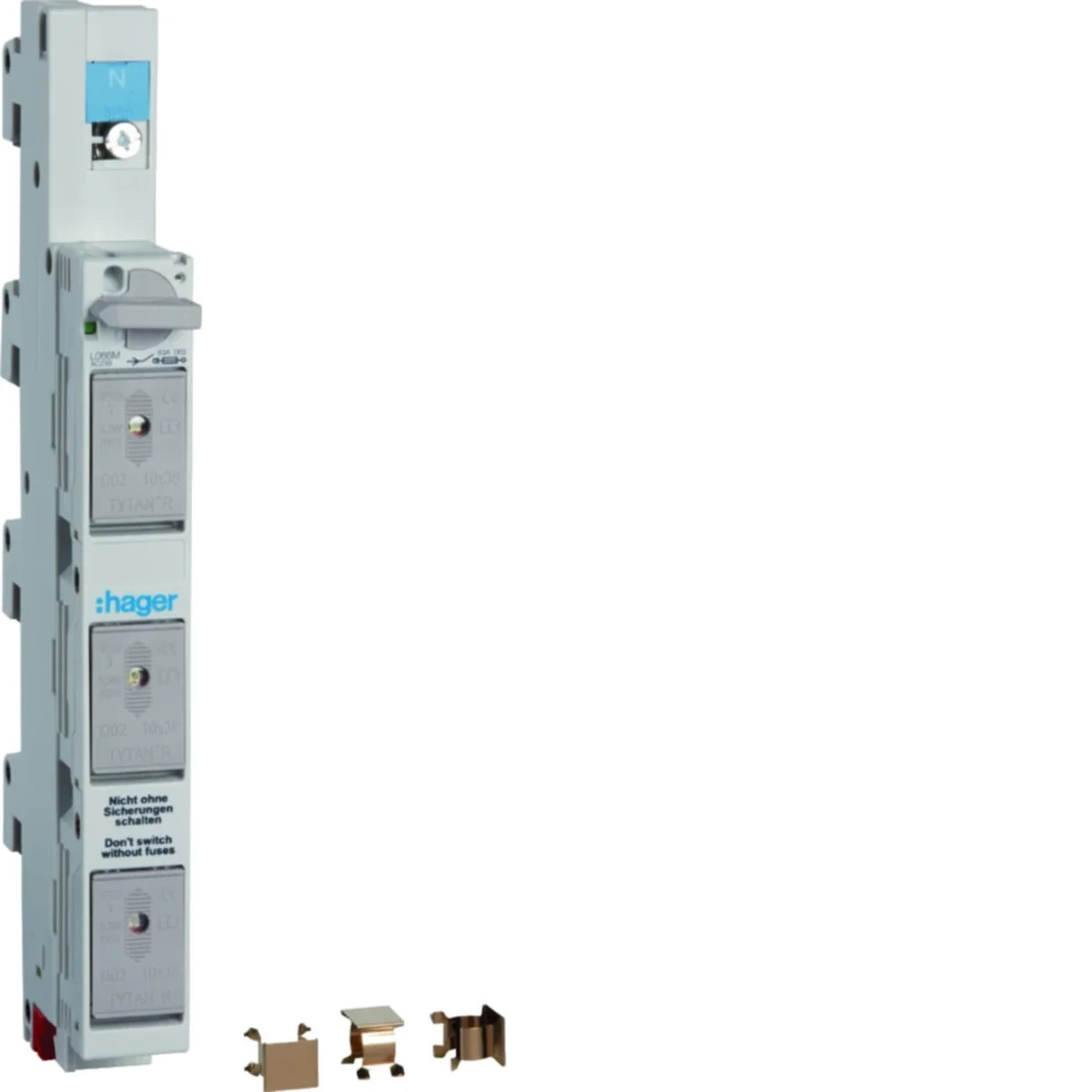

D02 Disconnect switch for 60mm busbars 63A 4-pole L066M

local index:
ALB174HAGE
Catalog No:
L066M
EAN code:
3250614133787
Manufacturer: HAGER
Rated frequency [Hz]: 50
Length [mm]: 89
Depth [mm]: 77
Price:
135,61 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

D02 Disconnect switch for 60mm busbars 63A 4-pole

Technical data

  • Rated frequency [Hz]
    50
  • Depth [mm]
    77
  • Fixing
    rail system
  • Rated insulation voltage [V]
    800
  • power loss [W]
    5.6
  • Fuse link size
    D02
  • Operating temperature range [°C]
    from -25 to 55
  • Fuse link rated current [A]
    2/4/6/10/13/16/20/25/35/50/63
  • Connection type
    Clamp / Rail
  • Rated surge voltage [V]
    6000
  • PKWIU
    27.12.23.0
  • Length [mm]
    89
  • Number of poles
    4
  • Tightening torque [Nm]
    2.5
  • Rated current [A]
    63
  • Width [mm]
    27
  • Height [mm]
    80
  • Rated switching voltage [V]
    400
  • Conventional short-circuit current [kA]
    50
  • storage temperature [°C]
    from -25 to 55
  • Wire cross-section (cord) [mm²]
    1.5 - 35

Other technical data

  • Number of poles
    4
  • Rated voltage
    400 V
  • Construction size
    D02
  • Rated current
    63 A

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 3 pcs. 18 pcs. 432 pcs.
Weight (kg) 0,410 1,270 8,025 217,600
Width (m) 0,027 0,110 0,310 0,800
Length (m) 0,226 0,090 0,210 1,050
Depth (m) 0,089 0,295 0,360 1,200
