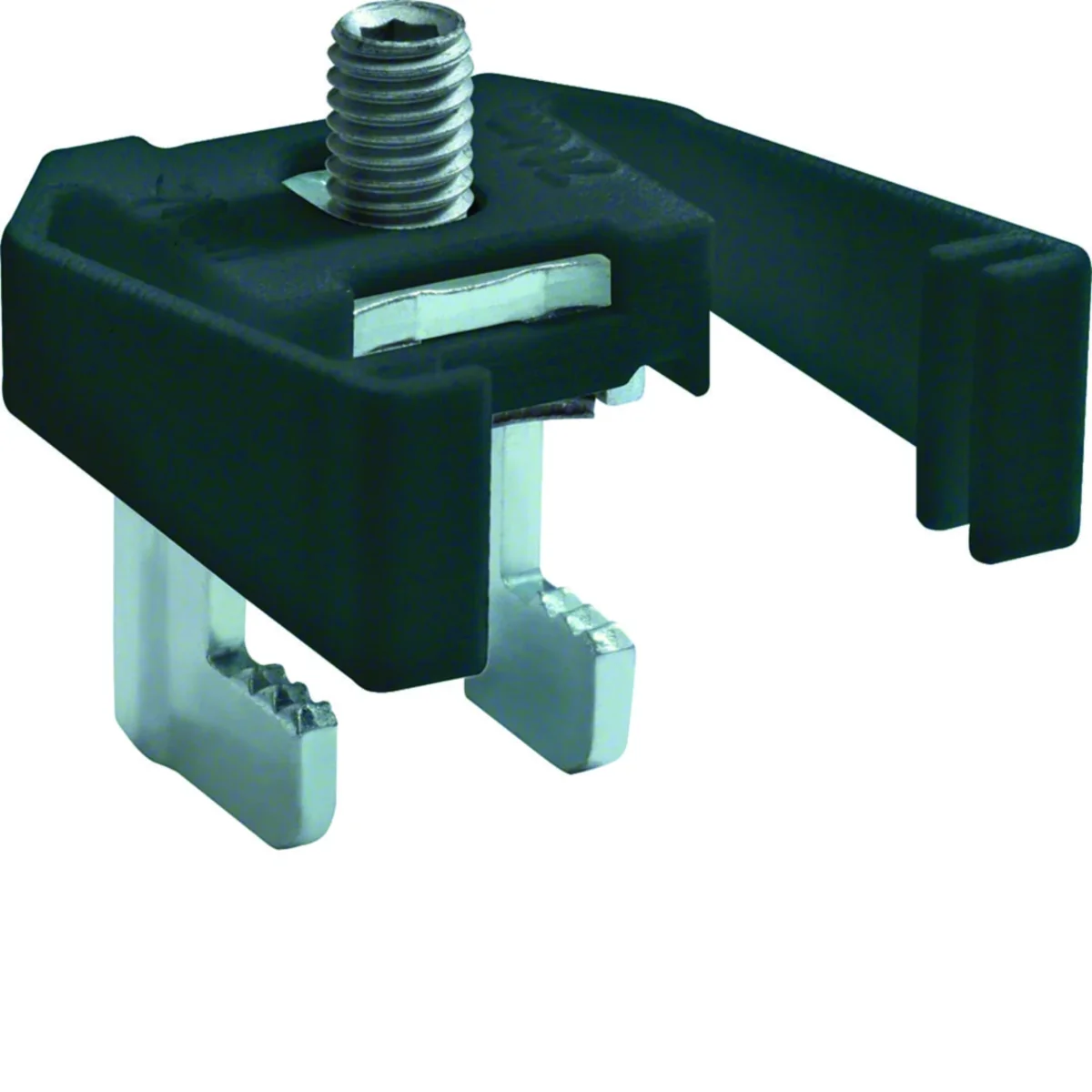

Current hooks for NH 00 / 185mm disconnectors LVZ00EK185

local index:
ALA370HAGE
Catalog No:
LVZ00EK185
EAN code:
4049857128396
Manufacturer: HAGER
Width [mm]: 38
Height [mm]: 51
Busbar width [mm]: 43378
Price:
24,98 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Current hooks for NH 00 / 185mm disconnectors

Technical data

  • Width [mm]
    38
  • Busbar width [mm]
    43378
  • Height [mm]
    51
  • PKWIU
    27.12.40.0

Other technical data

  • Busbar thickness
    5 ... 10 mm
  • Suitable for
    Flat rail
  • Max. rated operation current Ie
    220 A
  • Suitable for sector conductor connection
    Yes
  • Busbar width
    185 ... 185 mm
  • Width clamp
    38 mm
  • Suitable for round conductor connection
    Yes
  • Suitable for strip conductor connection
    No

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 1200 pcs.
Weight (kg) 0,037 0,117 165,400
Width (m) 0,040 0,080 0,800
Length (m) 0,013 0,040 0,420
Depth (m) 0,056 0,090 1,200
