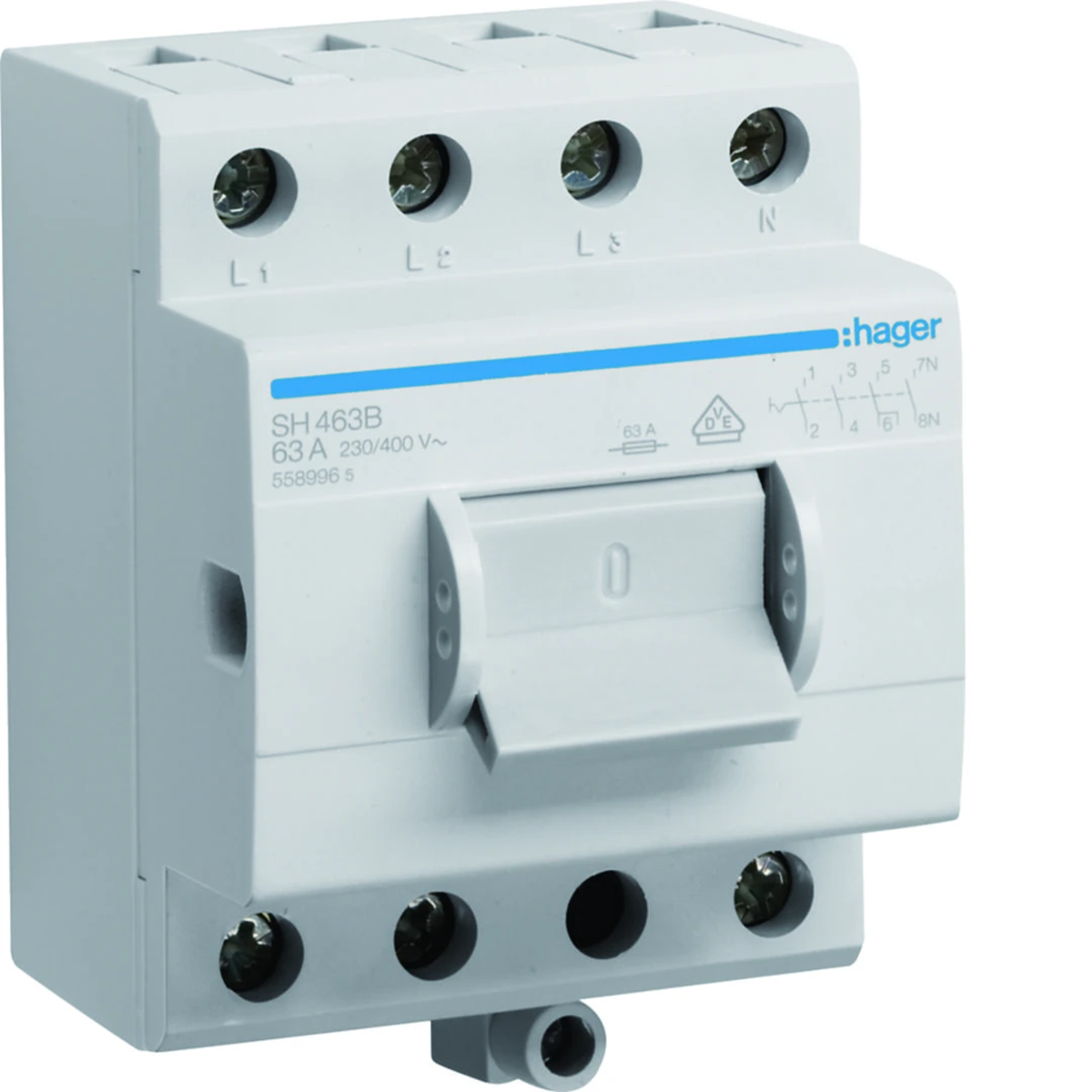

Compact switch disconnector 63A 4-pole with additional clamp SH463B
Lokaler Index:
ALP012HAGE
Katalognummer:
SH463B
EAN-Code:
3250615589965
Preis:
58,86 €
gross / stk.
(inklusive MwSt 23%)
Lieferung in 3h
Abholung in 1 Stunde
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Produktbeschreibung
Compact switch disconnector 63A 4-pole with additional clamp
Technische Daten
-
Rated frequency [Hz]60
-
Number of poles4
-
Level of securityIP20
-
Power loss per pole [W]2.6
-
Connection typeWith a screw
-
Rated switching voltage [V]400
-
Wire cross-section (cord) [mm²]16
-
PKWIU27.33.11.0
-
Depth [mm]65
-
Rated current [A]63
-
power loss [W]7.8
-
Width [mm]61.25
-
Height [mm]77
-
Number of modules3.5
-
Conductor cross-section (wire) [mm²]25
Weitere technische Daten
-
Version as main switchYes
-
Version as safety switchNo
-
Version as reversing switchNo
-
Rated operating voltage400 ... 400 V
-
Conditioned rated short-circuit current Iq5 kA
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedNo
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting 4-holeNo
-
Suitable for intermediate mountingNo
-
Type of control elementToggle
-
Type of electrical connection of main circuitScrew connection
-
Degree of protection (NEMA)Other
-
Height77 mm
-
Width in number of modular spacings3.5
-
Version as maintenance-/service switchYes
-
Version as emergency stop installationNo
-
Max. rated operation voltage Ue AC400 V
-
Rated permanent current Iu63 A
-
Number of poles4
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalNo
-
Voltage release optionalNo
-
Suitable for floor mountingNo
-
Suitable for front mounting centreNo
-
Colour control elementGrey
-
InterlockableNo
-
Degree of protection (IP), front sideIP20
-
Width61.25 mm
-
Depth65 mm
Hersteller-Details
-
HerstellerHager Electro S.A.S.
-
AdresseFR 67215 Obernai 123 boulevard d’Europe Francja
-
E-Mail
Großpackungen
| Eine Art Paket | Karton | Pakiet | Paleta | Karton | Pakiet | Paleta |
| Menge | 1 stk. | 36 stk. | 864 stk. | 1 stk. | 36 stk. | 864 stk. |
| Gewicht (kg) | 0,300 | 10,980 | 263,520 | 0,300 | 10,980 | 263,520 |
| Breite (m) | 0,070 | 0,320 | 0,800 | 0,070 | 0,320 | 0,800 |
| Länge (m) | 0,070 | 0,230 | 1,080 | 0,070 | 0,230 | 1,080 |
| Tiefe (m) | 0,090 | 0,360 | 1,200 | 0,090 | 0,360 | 1,200 |
