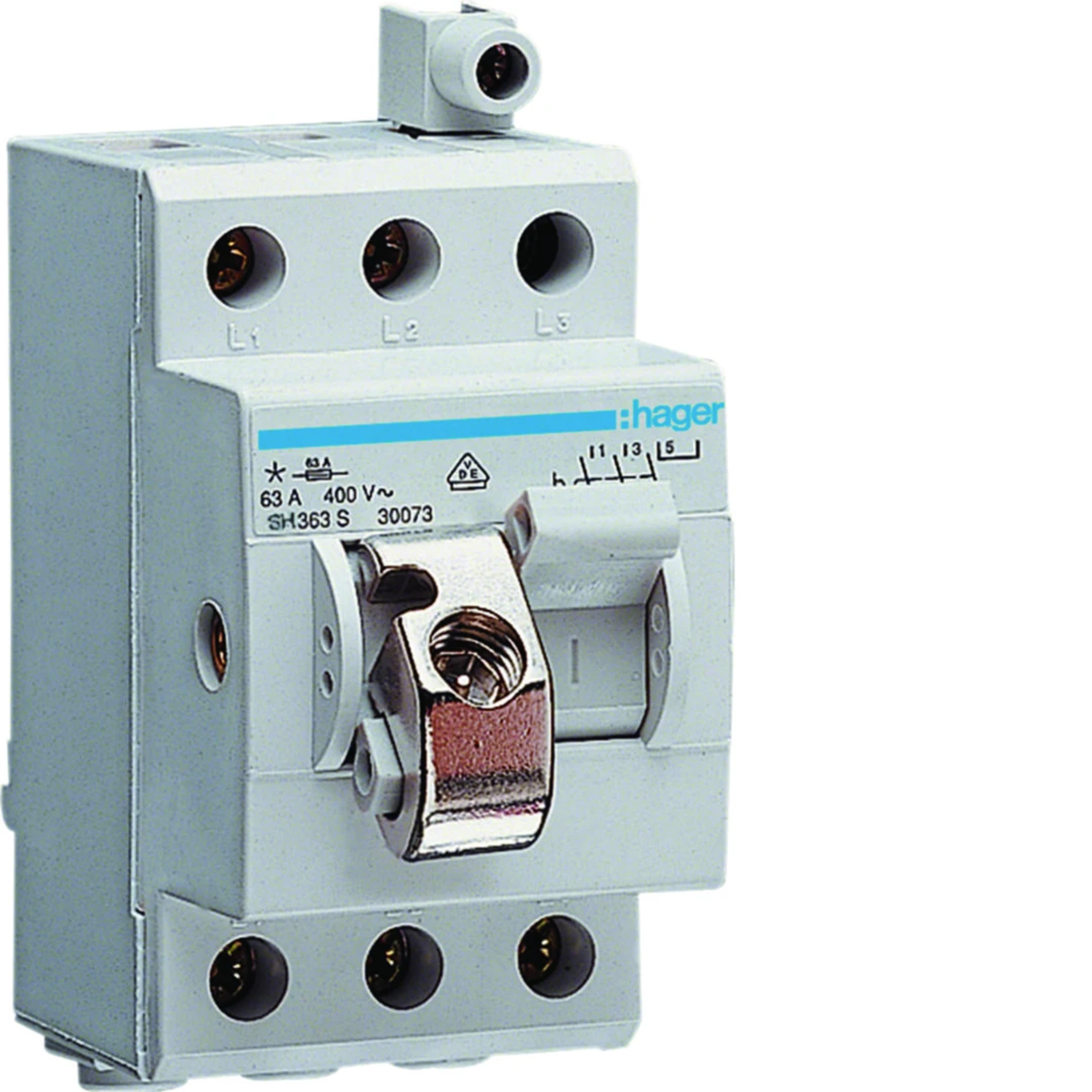

Compact switch disconnector 63A 3-pole with lock SH363S
local index:
ALP011HAGE
Catalog number:
SH363S
EAN code:
3250615589972
Price:
217,34 zł
gross / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
Compact switch disconnector 63A 3-pole with lock
Technical data
-
Rated frequency [Hz]60
-
Number of poles3
-
Level of securityIP20
-
Power loss per pole [W]2.6
-
Connection typeWith a screw
-
Rated switching voltage [V]400
-
Wire cross-section (cord) [mm²]16
-
PKWIU27.33.11.0
-
Depth [mm]73
-
Rated current [A]63
-
power loss [W]7.8
-
Width [mm]43.75
-
Height [mm]77
-
Number of modules2.5
-
Conductor cross-section (wire) [mm²]25
Other technical data
-
Version as main switchYes
-
Version as safety switchNo
-
Version as reversing switchNo
-
Rated operating voltage400 ... 400 V
-
Conditioned rated short-circuit current Iq5 kA
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedNo
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting 4-holeNo
-
Suitable for distribution board installationYes
-
Colour control elementGrey
-
InterlockableYes
-
Housing colourGrey
-
With pre-assembled cablingNo
-
Degree of protection (NEMA)Other
-
Height77 mm
-
Width in number of modular spacings2.5
-
Version as maintenance-/service switchYes
-
Version as emergency stop installationNo
-
Max. rated operation voltage Ue AC400 V
-
Rated permanent current Iu63 A
-
Number of poles3
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalNo
-
Voltage release optionalNo
-
Suitable for floor mountingNo
-
Suitable for front mounting centreNo
-
Suitable for intermediate mountingNo
-
Type of control elementToggle
-
Housing materialPlastic
-
Type of electrical connection of main circuitScrew connection
-
Degree of protection (IP), front sideIP20
-
Width43.75 mm
-
Depth73 mm
Manufacturer details
-
ManufacturerHager Electro S.A.S.
-
AddressFR 67215 Obernai 123 boulevard d’Europe Francja
-
E-mail
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta |
| Quantity | 1 pcs. | 48 pcs. | 1152 pcs. |
| Weight (kg) | 0,246 | 12,597 | 347,200 |
| Width (m) | 0,080 | 0,310 | 0,800 |
| Length (m) | 0,050 | 0,230 | 1,070 |
| Depth (m) | 0,090 | 0,360 | 1,200 |
