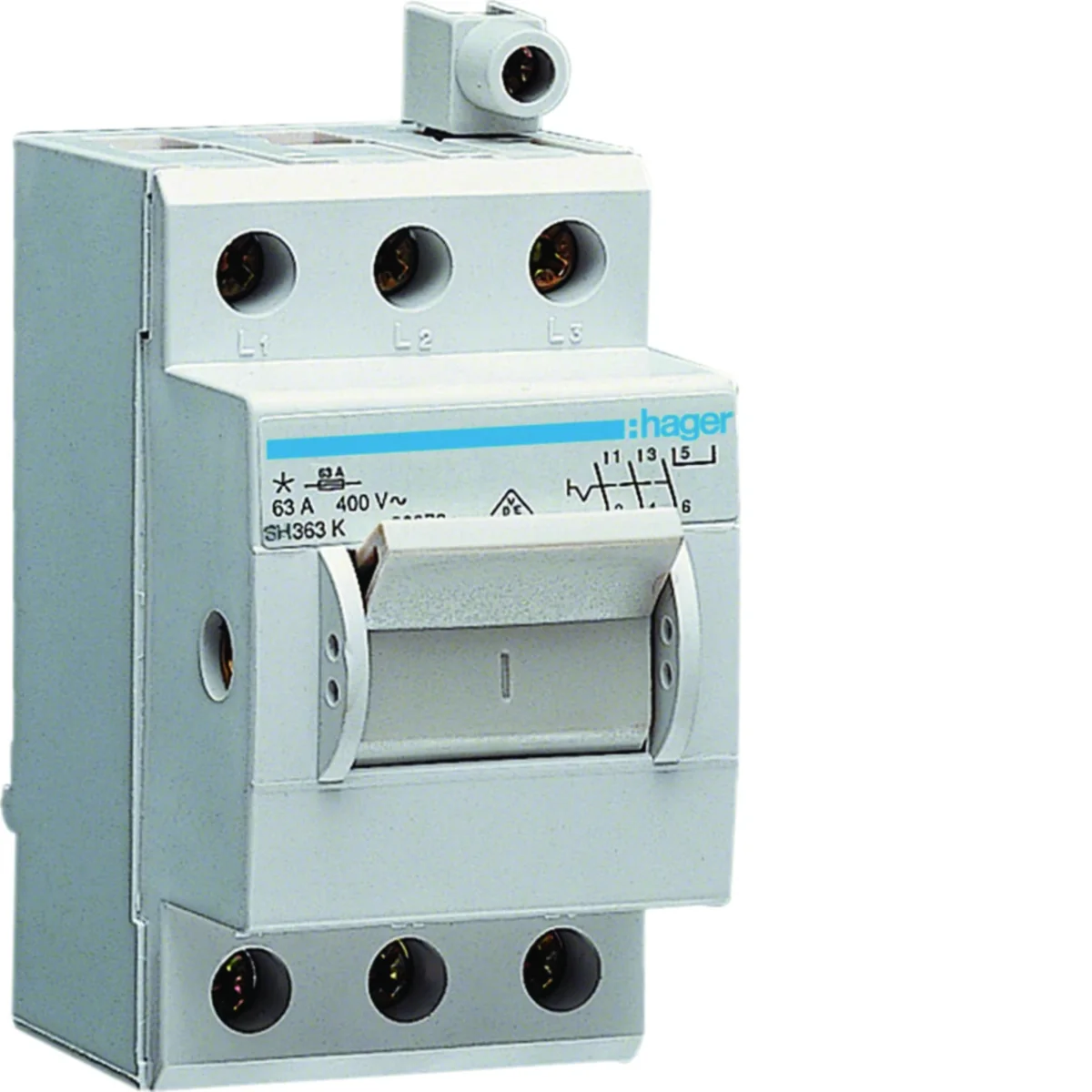

Compact switch disconnector 63A 3-pole with additional clamp SH363K
Lokaler Index:
ALB163HAGE
Katalognummer:
SH363K
EAN-Code:
3250615589996
Preis:
329,64 zł
gross / stk.
(inklusive MwSt 23%)
Zur Angebotsanfrage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Produktbeschreibung
Compact switch disconnector 63A 3-pole with additional clamp
Technische Daten
-
Rated frequency [Hz]60
-
Number of poles3
-
Level of securityIP20
-
Power loss per pole [W]2.6
-
Connection typeWith a screw
-
Rated switching voltage [V]400
-
Wire cross-section (cord) [mm²]16
-
PKWIU27.33.11.0
-
Depth [mm]65
-
Rated current [A]63
-
power loss [W]7.8
-
Width [mm]43.75
-
Height [mm]77
-
Number of modules2.5
-
Conductor cross-section (wire) [mm²]25
Weitere technische Daten
-
Version as main switchYes
-
Version as safety switchNo
-
Version as reversing switchNo
-
Rated operating voltage400 ... 400 V
-
Conditioned rated short-circuit current Iq5 kA
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedNo
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting 4-holeNo
-
Suitable for distribution board installationYes
-
Colour control elementGrey
-
InterlockableNo
-
Housing colourGrey
-
With pre-assembled cablingNo
-
Degree of protection (NEMA)Other
-
Height77 mm
-
Width in number of modular spacings2.5
-
Version as maintenance-/service switchYes
-
Version as emergency stop installationNo
-
Max. rated operation voltage Ue AC400 V
-
Rated permanent current Iu63 A
-
Number of poles3
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalNo
-
Voltage release optionalNo
-
Suitable for floor mountingNo
-
Suitable for front mounting centreNo
-
Suitable for intermediate mountingNo
-
Type of control elementToggle
-
Housing materialPlastic
-
Type of electrical connection of main circuitScrew connection
-
Degree of protection (IP), front sideIP20
-
Width43.75 mm
-
Depth65 mm
Hersteller-Details
-
HerstellerHager Electro S.A.S.
-
AdresseFR 67215 Obernai 123 boulevard d’Europe Francja
-
