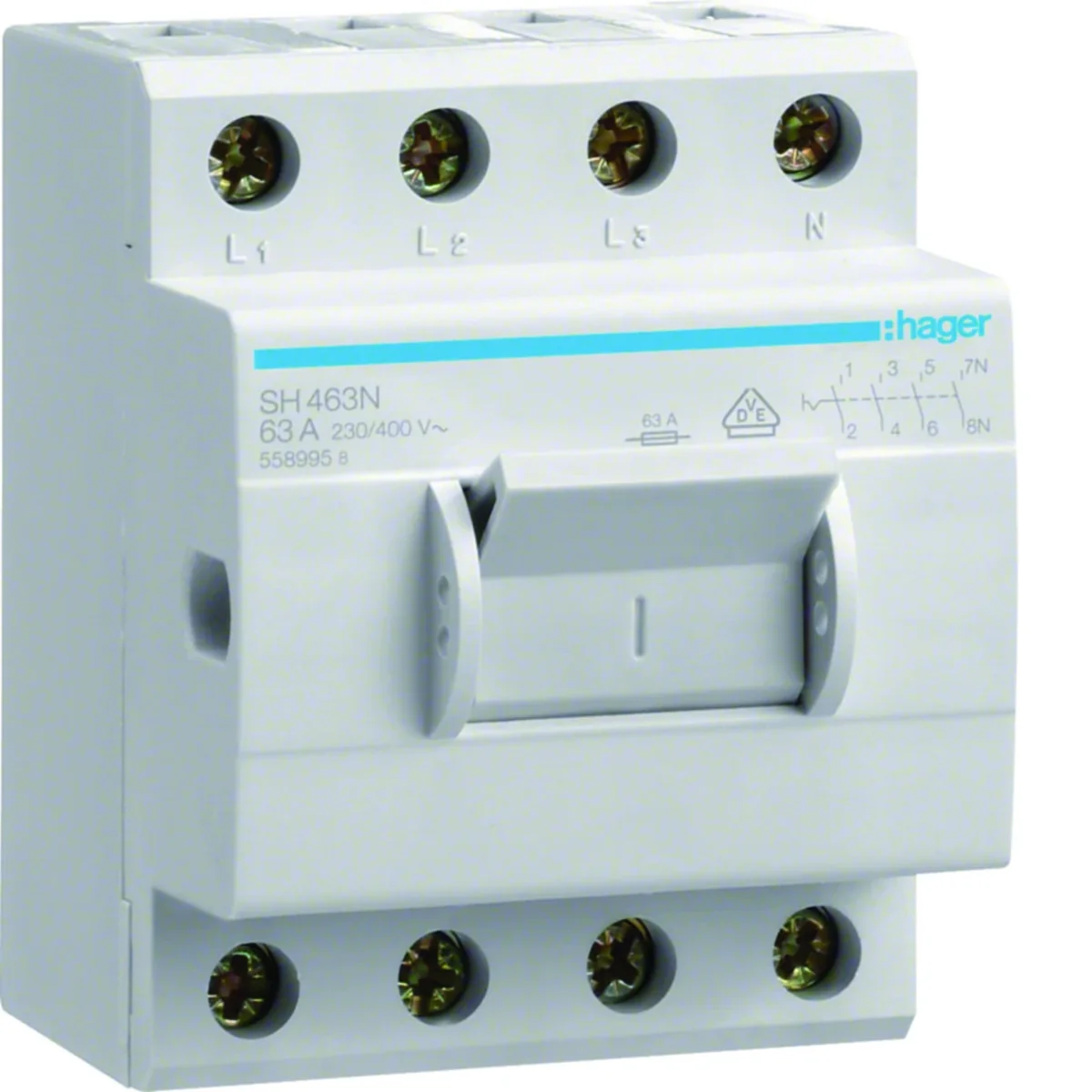

Compact switch, 63A, 4-pole SH463N

Name: Compact switch, 63A, 4-pole
Brand: HAGER
SKU: ALB050HAGE
Price: 265.86 PLN
Availability: BackOrder

Indeks lokalny:

ALB050HAGE

Numer katalogowy:

SH463N

Kod EAN:

3250615589958

Kliknij zdjęcie, aby powiększyć

Producent: HAGER

Rated frequency [Hz]: 50/60

Depth [mm]: 65

Number of poles: 4

Zobacz cały opis

Cena:

265,86 zł

gross / szt.

(w tym VAT 23%)

do 4 tygodni

Na zamówienie

Ilość szt.

(wielokrotność:

)

Dodaj do zapytania ofertowego

Dodaj do schowka

Drukuj

Zapytaj o produkt

Opis produktu Dane techniczne Dane producenta Opakowania zbiorcze Pliki do pobrania

Opis produktu

Remote breaking
Switch disconnectors equipped with auxiliary contacts CA 1NO+1NC for connection of contact position signalling. Additional SD signaling contacts, triggers or a locking mechanism can be added as additional equipment.
Connection:
Switch main contacts:
• 16 mm² - stranded
• 25 mm² - wire
Switch disconnector auxiliary contacts:
• 0.5 to 4 mm² - stranded
• 1 to 6 mm² - wire
Compliance with the standards: PN-EN 60947-2 and PN-EN 60947-3
Connection category: AC-23A

Dane techniczne

Rated frequency [Hz]

50/60
Number of poles

4
power loss [W]

7.8
Height [mm]

77
Number of modules

3.5
PKWIU

27.12.23.0

Depth [mm]

65
Rated current [A]

63
Width [mm]

61.25
Connection type

With a screw
AC rated voltage [V]

400

Pozostałe dane techniczne

Version as main switch

Yes
Version as safety switch

No
Version as reversing switch

No
Rated operating voltage

400 ... 400 V
Conditioned rated short-circuit current Iq

5 kA
Number of auxiliary contacts as normally closed contact

0
Number of auxiliary contacts as change-over contact

0
Motor drive integrated

No
Device construction

Built-in device fixed built-in technique
Suitable for front mounting 4-hole

No
Suitable for distribution board installation

Yes
Colour control element

Grey
Interlockable

No
Housing colour

Grey
With pre-assembled cabling

No
Degree of protection (NEMA)

Other
Height

77 mm
Width in number of modular spacings

3.5

Version as maintenance-/service switch

Yes
Version as emergency stop installation

No
Max. rated operation voltage Ue AC

400 V
Rated permanent current Iu

63 A
Number of poles

4
Number of auxiliary contacts as normally open contact

0
Motor drive optional

No
Voltage release optional

No
Suitable for floor mounting

No
Suitable for front mounting centre

No
Suitable for intermediate mounting

No
Type of control element

Toggle
Housing material

Plastic
Type of electrical connection of main circuit

Screw connection
Degree of protection (IP), front side

IP20
Width

61.25 mm
Depth

65 mm
