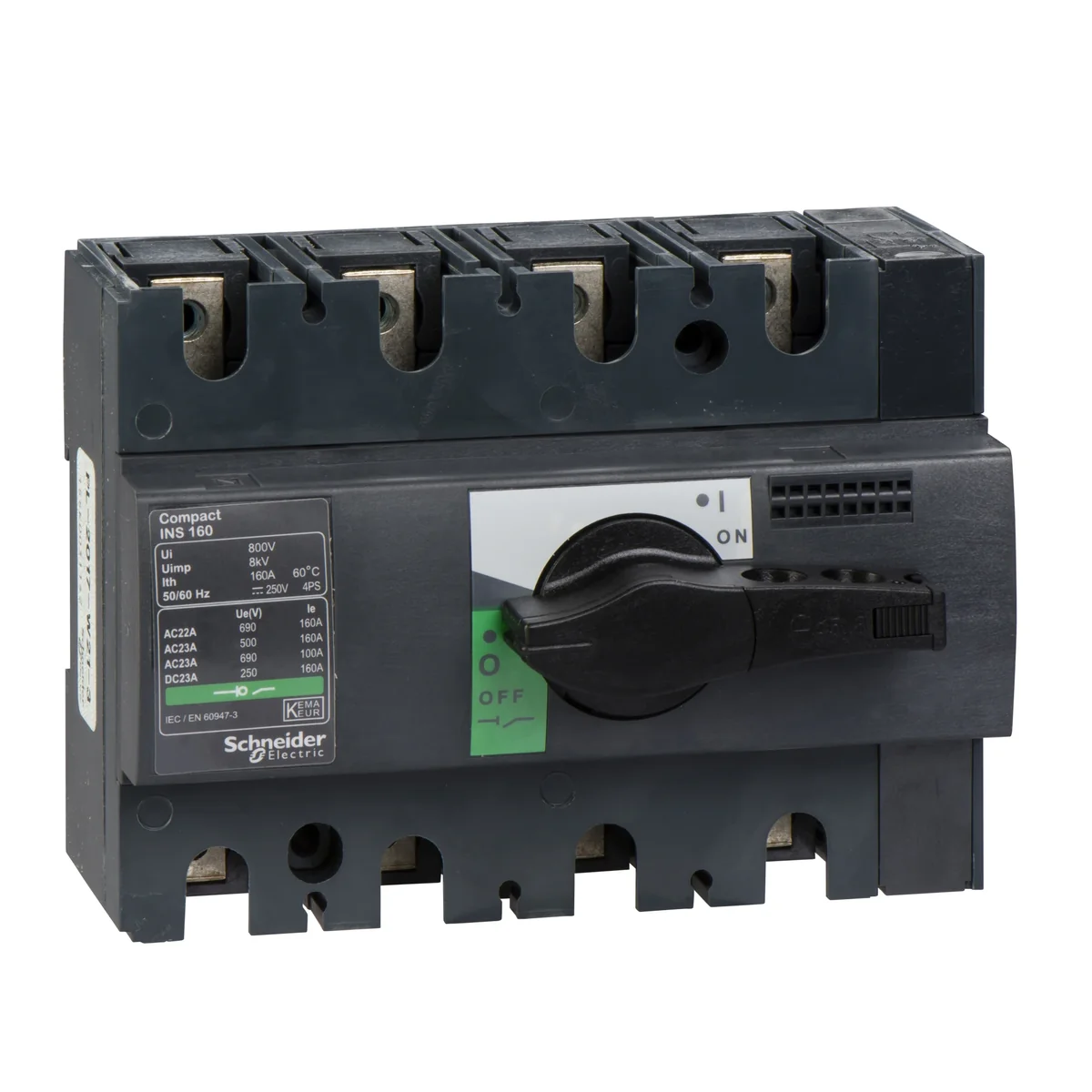

Compact INS INV switch disconnector INS160 160A 4P 28913
local index:
ALI017SCHN
Catalog No:
28913
EAN code:
3303430289135
Manufacturer:
SCHNEIDER ELECTRIC
Number of poles: 4
Price:
234,54 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Compact INS INV switch disconnector INS160 160A 4P
Technical data
-
Number of poles4
-
PKWIU27.12.22.0
Other technical data
-
Version as main switchYes
-
Version as safety switchNo
-
Version as reversing switchNo
-
Max. rated operation voltage Ue AC690 V
-
Rated permanent current Iu160 A
-
Rated short-time withstand current lcw5.5 kA
-
Conditioned rated short-circuit current Iq65 kA
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact2
-
Motor drive integratedNo
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting 4-holeYes
-
Suitable for distribution board installationYes
-
Colour control elementBlack
-
InterlockableYes
-
Degree of protection (IP), front sideIP40
-
Version as maintenance-/service switchYes
-
Version as emergency stop installationNo
-
Number of switches1
-
Rated operating voltage690 ... 690 V
-
Rated permanent current at AC-23, 400 V160 A
-
Rated operation power at AC-23, 400 V75 kW
-
Number of poles4
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalNo
-
Voltage release optionalNo
-
Suitable for floor mountingYes
-
Suitable for front mounting centreYes
-
Suitable for intermediate mountingNo
-
Type of control elementLong turning handle
-
Type of electrical connection of main circuitScrew connection
