Compact INS INV disconnect switch INS100 100A 4P 28909
local index:
ALI070SCHN
Catalog No:
28909
EAN code:
3303430289098
Manufacturer:
SCHNEIDER ELECTRIC
Number of poles: 4
DC rated voltage [V]: 125
Rated current [A]: 100
Price:
178,50 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

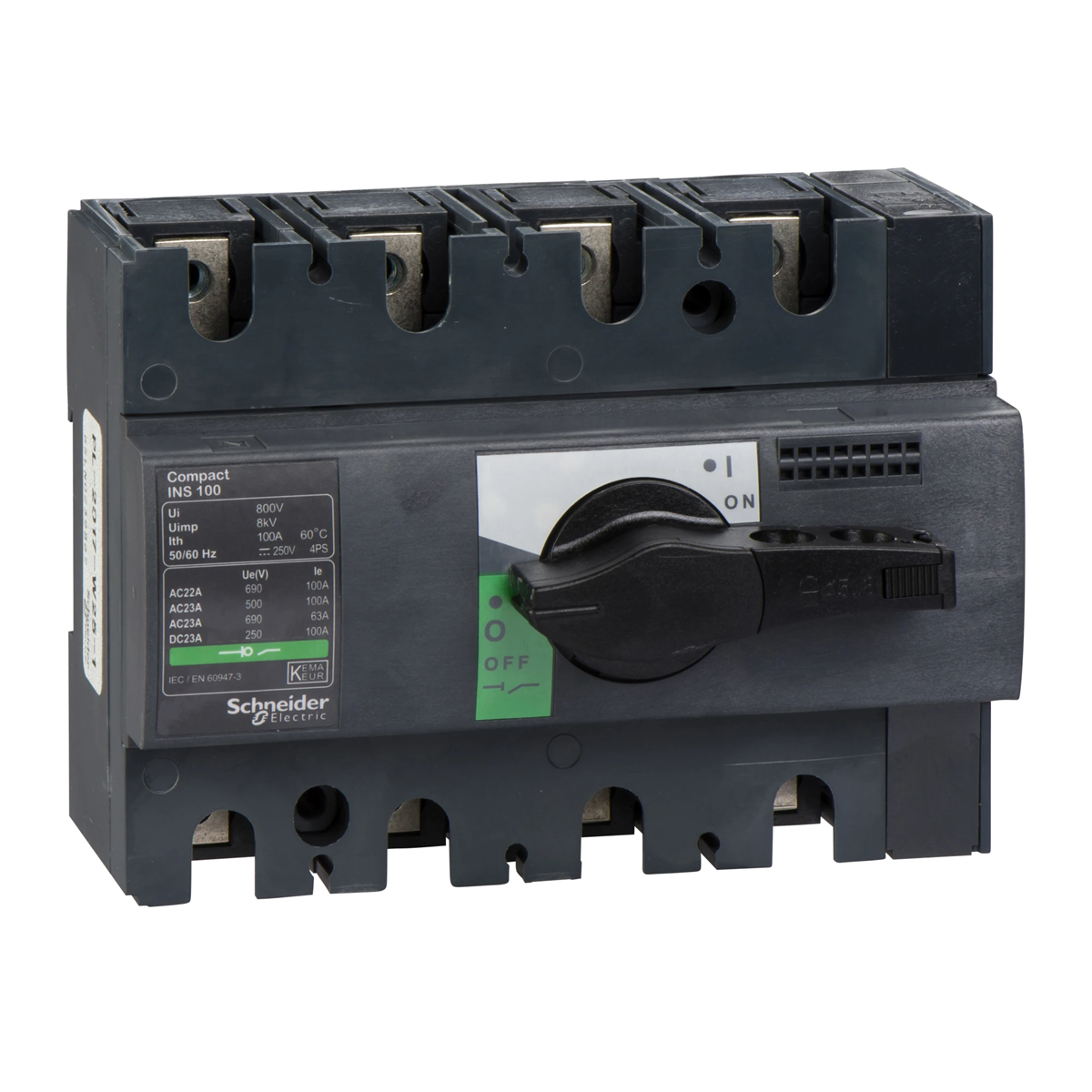

Compact INS INV disconnect switch INS100 100A 4P
Technical data
-
Number of poles4
-
Rated current [A]100
-
DC rated voltage [V]125
-
PKWIU27.12.22.0
Other technical data
-
Version as main switchYes
-
Version as safety switchNo
-
Version as reversing switchNo
-
Max. rated operation voltage Ue AC690 V
-
Rated permanent current Iu100 A
-
Rated short-time withstand current lcw5.5 kA
-
Conditioned rated short-circuit current Iq65 kA
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact2
-
Motor drive integratedNo
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting 4-holeYes
-
Suitable for distribution board installationYes
-
Colour control elementBlack
-
InterlockableYes
-
Degree of protection (IP), front sideIP40
-
Version as maintenance-/service switchYes
-
Version as emergency stop installationNo
-
Number of switches1
-
Rated operating voltage690 ... 690 V
-
Rated permanent current at AC-23, 400 V100 A
-
Rated operation power at AC-23, 400 V45 kW
-
Number of poles4
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalNo
-
Voltage release optionalNo
-
Suitable for floor mountingYes
-
Suitable for front mounting centreYes
-
Suitable for intermediate mountingNo
-
Type of control elementLong turning handle
-
Type of electrical connection of main circuitScrew connection
Manufacturer details
-
ManufacturerSchneider Electric Polska Sp. z o.o.
-
Address02-673 Warszawa ul. Konstruktorska 12
-
Tax identification number5220011965
-
GLN5900009931556
