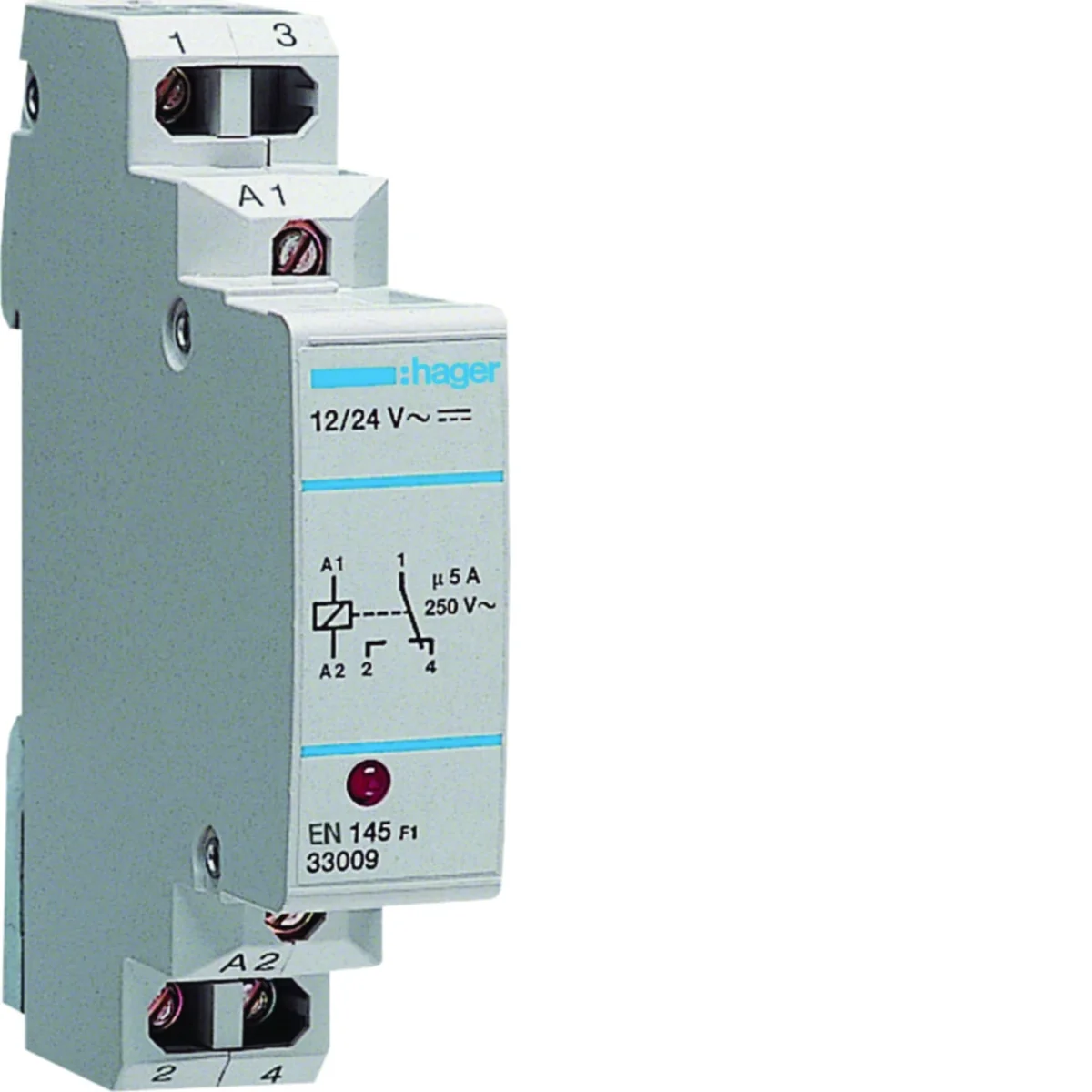

Communication relay with LED 12-24VAC/DC 1NO/NC 5A EN145
local index:
APC004HAGE
Catalog No:
EN145
EAN code:
3250612341450
Price:
72,46 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Communication relay with LED 12-24VAC/DC 1NO/NC 5A
Technical data
-
Rated frequency [Hz]60
-
Maximum input power [VA]2
-
Rated insulation voltage [V]250
-
Contact type1 switch
-
Width [mm]17.5
-
Height [mm]85
-
Rated switching voltage [V]250
-
Wire cross-section [mm²]1 to 6
-
Setting [A]5
-
storage temperature [°C]From -40 to 80
-
Conductor cross-section (wire) [mm²]1 - 6
-
Depth [mm]58
-
AC control voltage [V]10/26
-
Rated current [A]5
-
power loss [W]2
-
Connection typeWith a screw
-
Operating temperature range [°C]from -10 to 50
-
Number of modules1
-
Input power [VA]2
-
Control cable cross-section [mm²]0.5 - 4
-
Wire cross-section (cord) [mm²]0.5 - 4
-
PKWIU27.12.24.0
Other technical data
-
FunctionPartially electronic
-
Width in number of modular spacings1
-
Number of contacts as normally open contact0
-
Number of contacts as change-over contact1
-
Type of control voltage 1DC
-
Control voltage 210 ... 26 V
-
Rated current5 A
-
Voltage type (supply voltage)AC
-
Mounting methodDIN rail
-
Built-in depth58 mm
-
Number of contacts as normally closed contact0
-
Control voltage 110 ... 26 V
-
Frequency control voltage 150 ... 60 Hz
-
Type of control voltage 2DC
-
Supply voltage250 ... 250 V
-
Max. switching current (cos phi = 0.6)5 A
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 108 pcs. | 2592 pcs. |
| Weight (kg) | 0,064 | 0,065 | 7,455 | 201,920 |
| Width (m) | 0,082 | 0,080 | 0,315 | 0,800 |
| Length (m) | 0,026 | 0,025 | 0,215 | 1,014 |
| Depth (m) | 0,098 | 0,095 | 0,360 | 1,200 |
