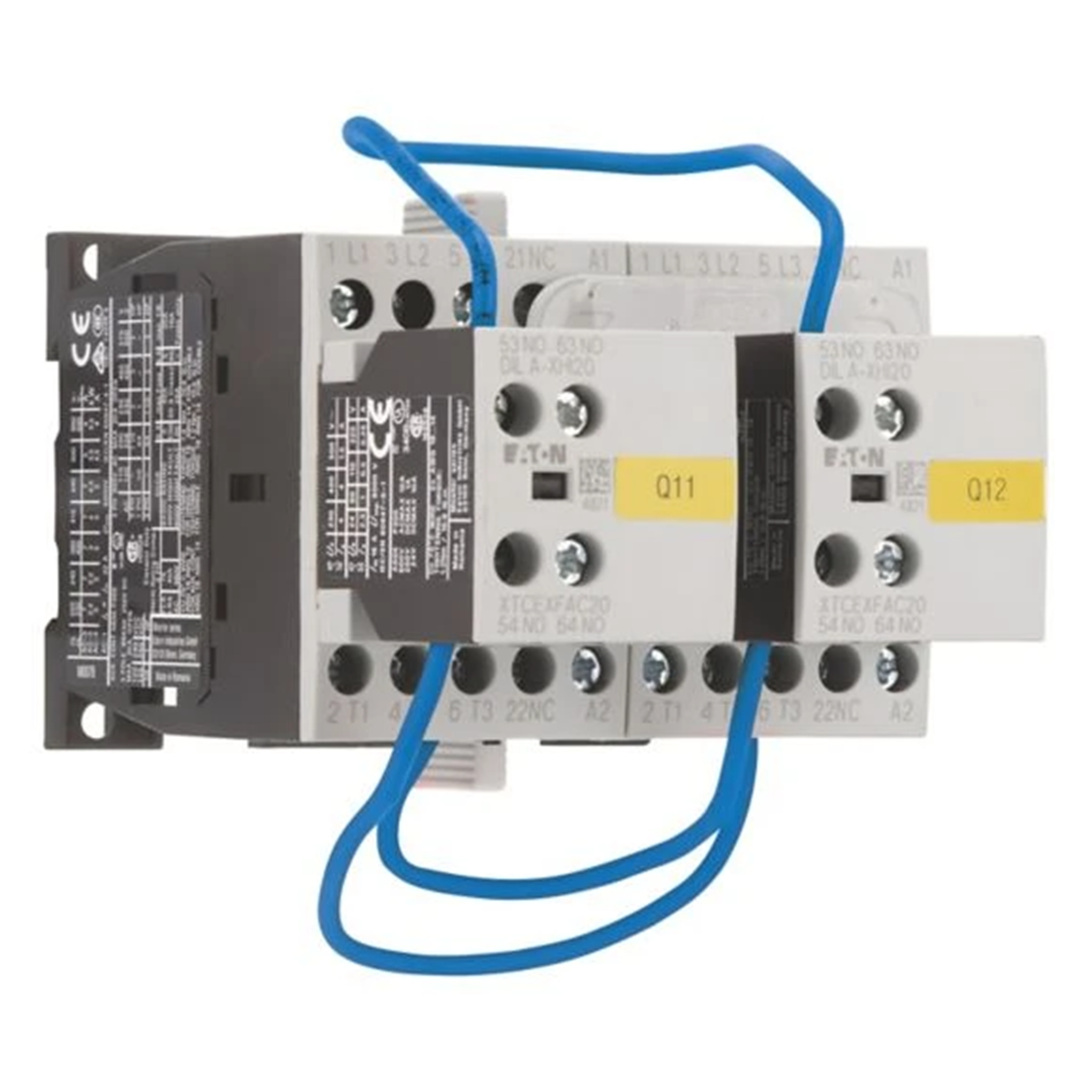

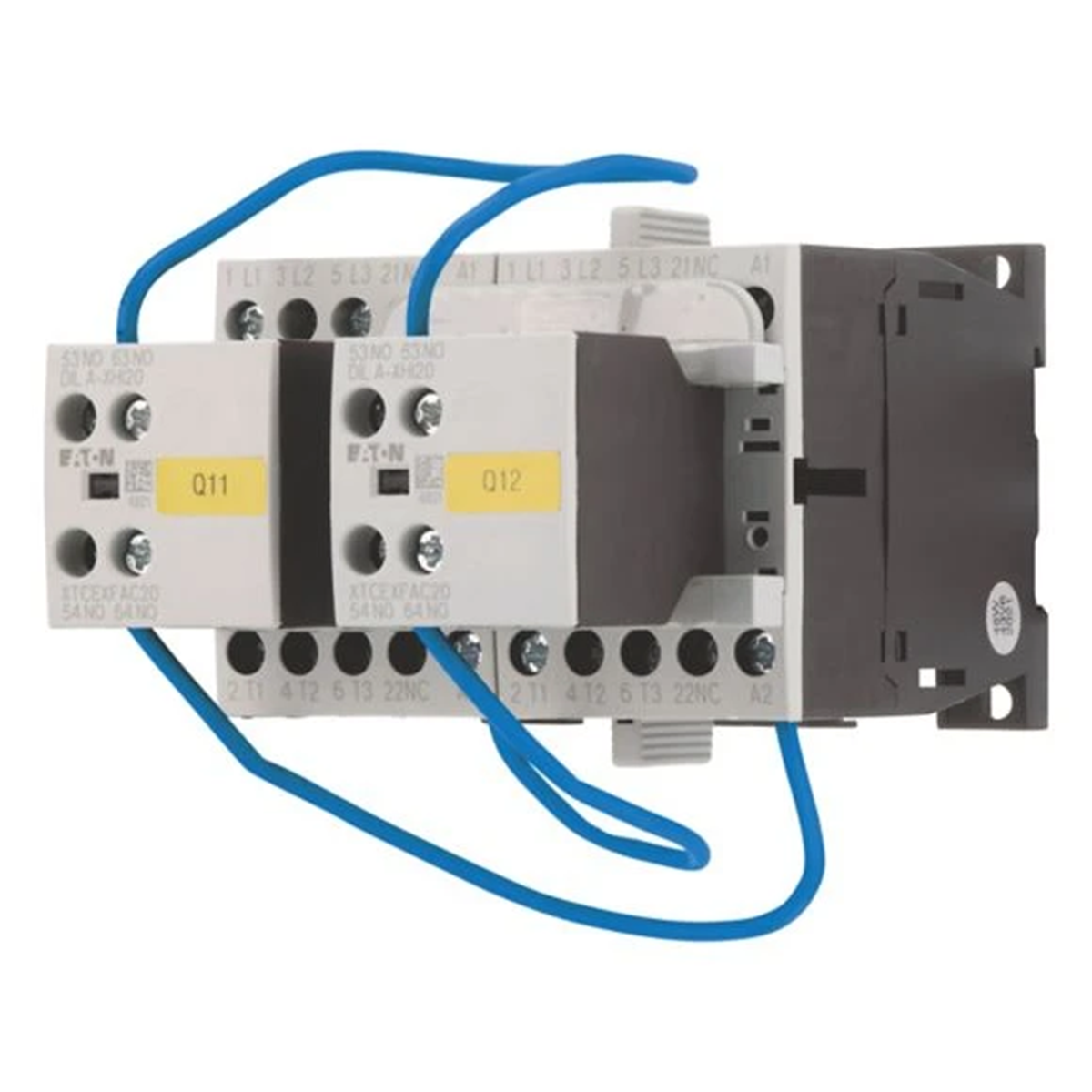

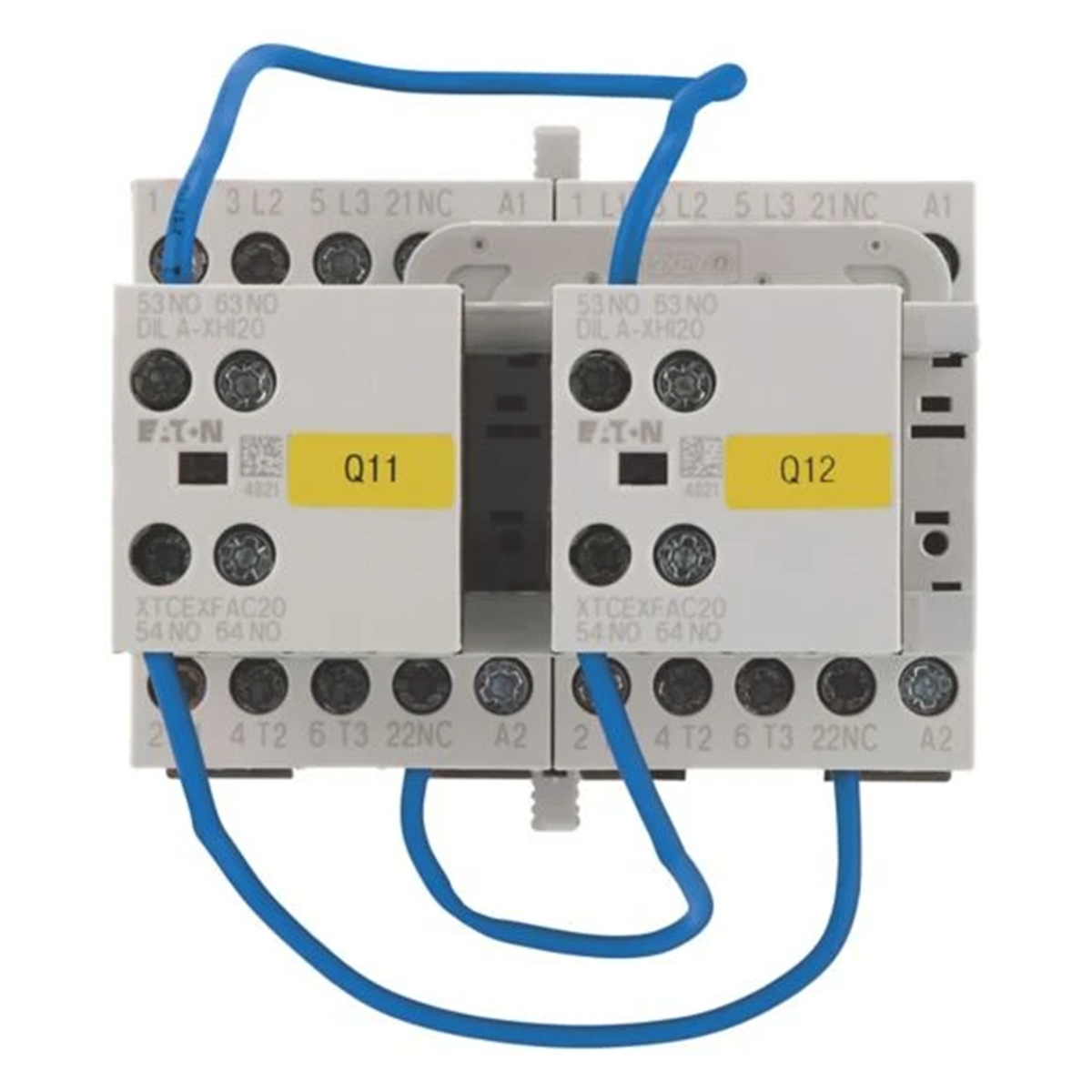

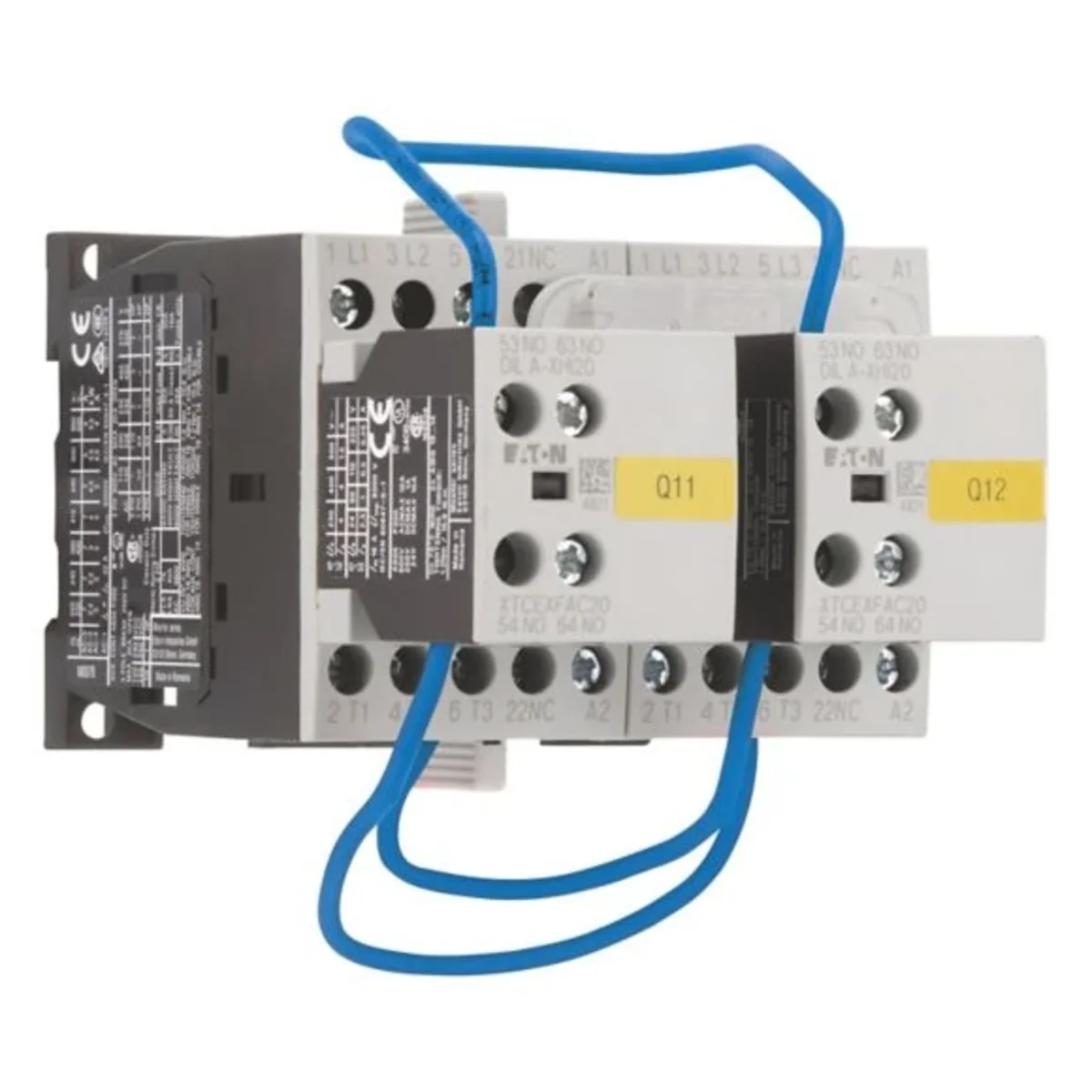

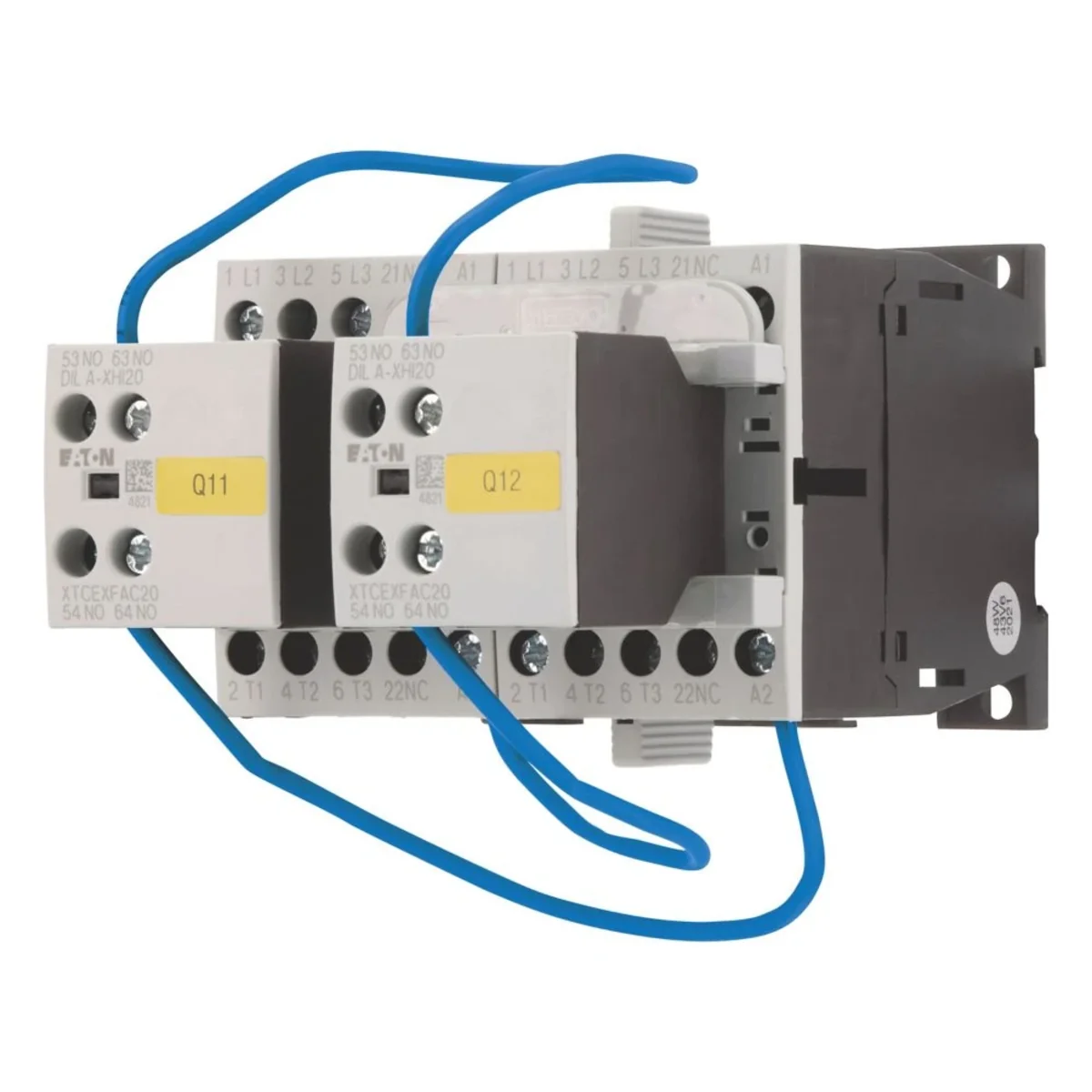

Reversing contactor combination, Application: Contactor combinations for bidirectional motor starting, Accessories: DIUL reversing assemblies, Utilization category: AC-3: Squirrel-cage motors: starting, running-off, AC-4: Squirrel-cage motors: starting , counter-current brakes, reversing mode, impulse mode, Rated operational current AC-3 380 V 400 V: Ie= 12 A, Max. rated power of three-phase motors 50 - 60 Hz AC-3 220 V 230 V: P= 3.5 kW, 380 V 400 V: P= 5.5 kW, 660 V 690 V: P= 6.5 kW, Starting voltage: 24 V DC, Type of current AC/DC: DC operation, Note: Also suitable for motors of energy efficiency class IE3., Devices compatible with IE3 are marked with the appropriate logo on the packaging.

Operating voltage [V]

400

Switching capacity [kA]

5.5

Other technical data

Function

Reversing contactor
Rated control supply voltage AC 60 Hz

0 ... 0 V
Voltage type for actuating

DC
Rated operation current Ie at AC-3, 400 V

12 A
Rated operation power NEMA

7.4 kW
Number of normally open contacts as main contact

6
Degree of protection (IP)

IP20

Rated control supply voltage AC 50 Hz

0 ... 0 V
Rated control supply voltage DC

24 ... 24 V
Rated operation current Ie at AC-1, 400 V

12 A
Rated operation power at AC-3, 400 V

5.5 kW
Number of normally closed contacts as main contact

0
Type of electrical connection of main circuit

Screw connection
Rail mounting possible

No

Manufacturer details

Manufacturer

EATON Electric Sp. z o.o.
Address

80-299 Gdańsk ul. Galaktyczna 30
E-mail

pl-gdansk@eaton.com
WWW

https://www.moeller.pl
Tax identification number

5841022327
GLN

5900009970944

A kind of package		Skrzynia
Quantity	1 pcs.	1 pcs.
Weight (kg)	0,718	0,767
Volume (m3)	0,001	0,001
Width (m)	0,090	0,112
Length (m)	0,117	0,138
Depth (m)	0,068	0,082
