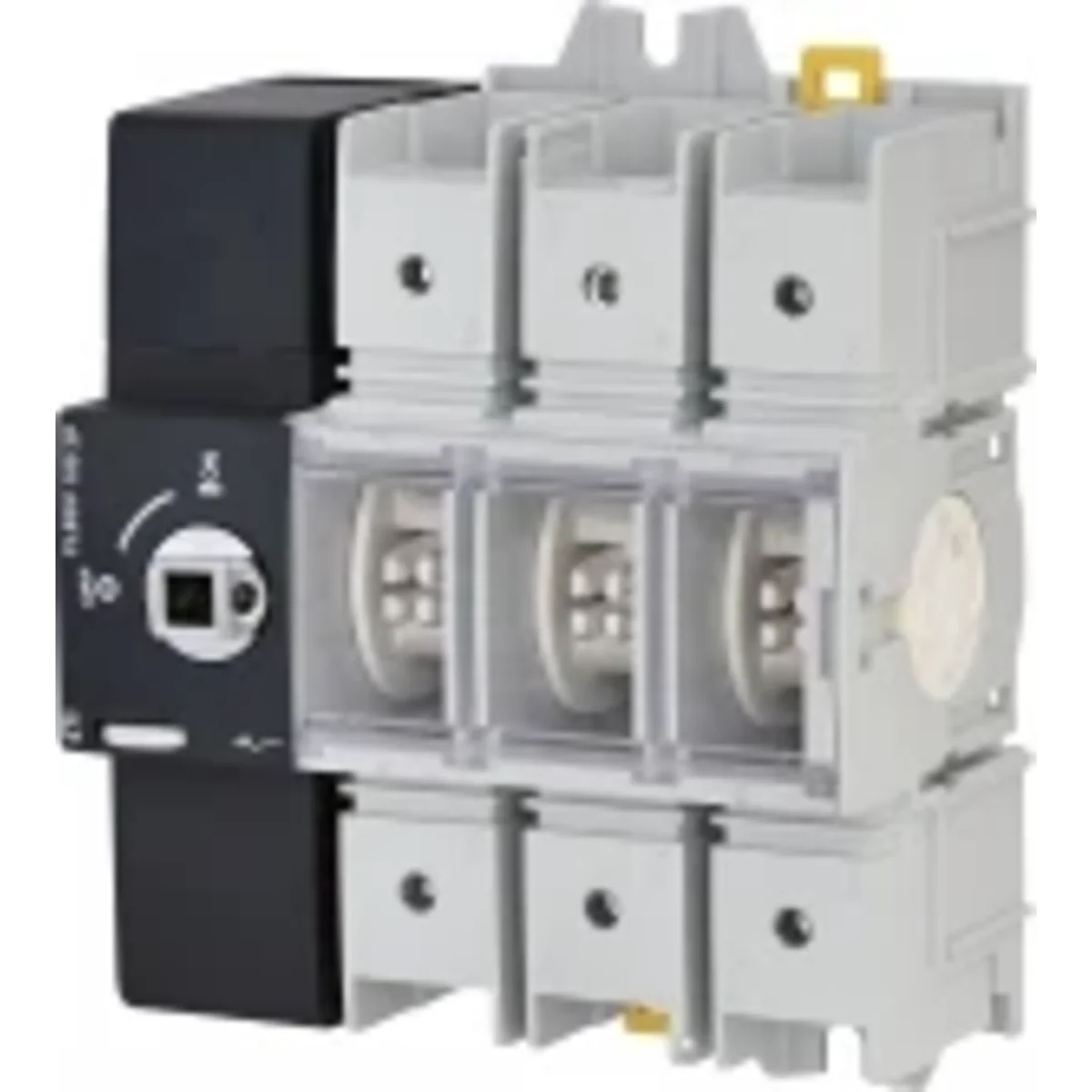

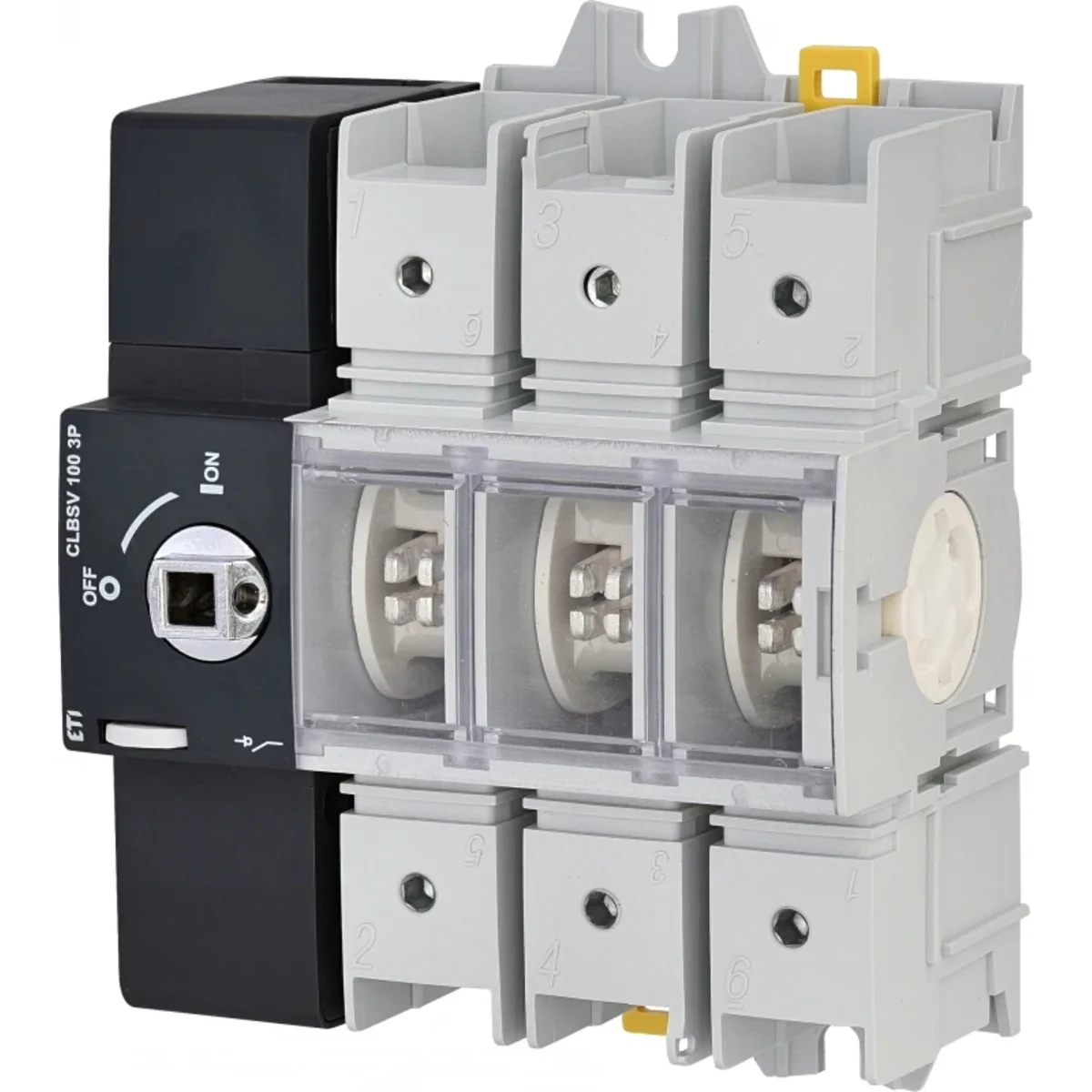

CLBSV 100 3P Modular switch disconnector with visible break 004661880
local index:
ALI067ETIP
Catalog number:
004661880
EAN code:
3838895823964
Manufacturer:
ETI POLAM
Price:
338,11 zł
gross / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Technical data
Other technical data
-
Version as main switchYes
-
Max. rated operation voltage Ue AC800 V
-
Rated operation power at AC-23, 400 V45 kW
-
Device constructionBuilt-in device fixed built-in technique
-
Type of control elementDoor coupling rotary drive
-
Degree of protection (IP), front sideIP20
-
Version as maintenance-/service switchYes
-
Rated permanent current Iu100 A
-
Number of poles3
-
Suitable for floor mountingYes
-
Type of electrical connection of main circuitScrew connection
Manufacturer details
-
ManufacturerETI Polam Sp. z o.o.
-
Address06-100 Pułtusk Jana Pawła II 18 Polska
-
E-mail
Files to download
