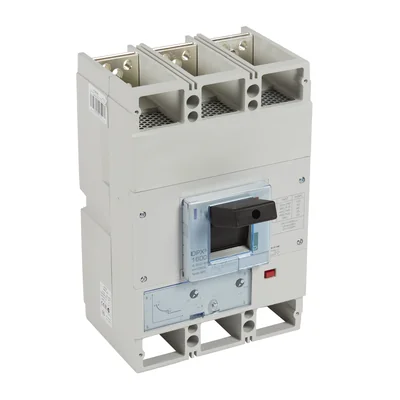

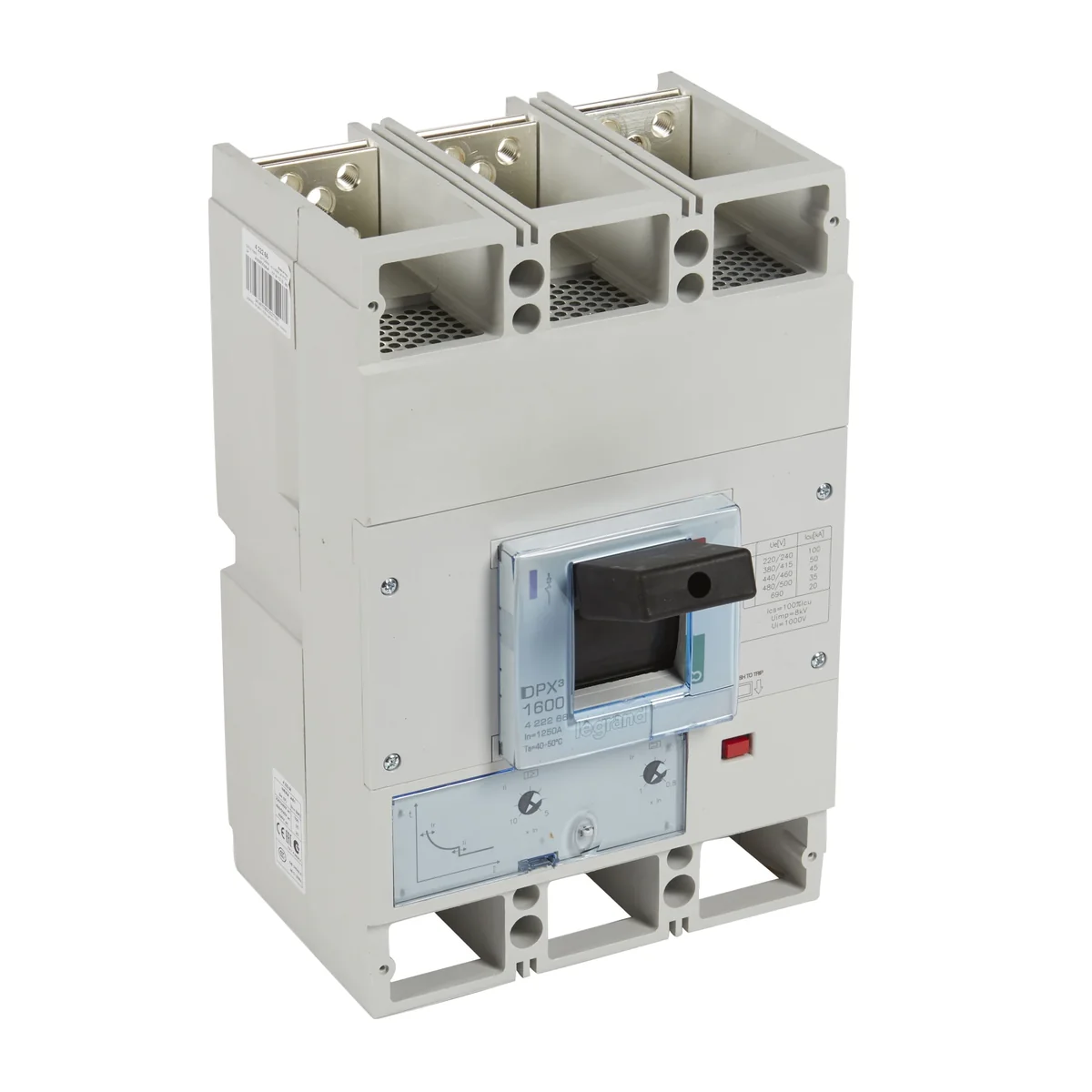

CIRCUIT BREAKER DPX3 1600 TM 3P 1250A 50kA 422266
local index:
ALP001LEGR
Catalog number:
422266
EAN code:
3414970380326
Manufacturer:
LEGRAND
23 099
38
zł
gross / pcs.
(including VAT 23%)
Availability
Dostępne up to 2 weeks
On request
Dostępność w oddziale
Choose your wholesaler
Choose
Quantity pcs.
(multiplicity:
1
)
Technical data
-
PKWIU27.12.22.0
Other technical data
-
Rated permanent current Iu1250 A
-
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz50 kA
-
Adjustment range undelayed short-circuit release6250 ... 12500 A
-
Integrated earth fault protectionNo
-
Suitable for DIN rail (top hat rail) mountingNo
-
Number of auxiliary contacts as change-over contact3
-
With integrated under voltage releaseYes
-
Position of connection for main current circuitFront side
-
Complete device with protection unitYes
-
Motor drive optionalYes
-
Rated voltage220 ... 690 V
-
Overload release current setting1000 ... 1250 A
-
Device constructionBuilt-in device fixed built-in technique
-
Type of electrical connection of main circuitScrew connection
-
DIN rail (top hat rail) mounting optionalNo
-
With switched-off indicatorYes
-
Number of poles3
-
Type of control elementToggle
-
Motor drive integratedNo
-
Degree of protection (IP)IP30
Manufacturer details
-
ManufacturerLegrand Polska Sp. z o.o.
-
Address57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
-
E-mail
Bulk packaging
| A kind of package | Karton | Paleta |
| Quantity | 1 pcs. | 6 pcs. |
| Weight (kg) | 14,805 | 88,830 |
| Volume (m3) | 0,048 | 0,604 |
| Width (m) | 0,350 | 1,200 |
| Length (m) | 0,340 | 0,503 |
| Depth (m) | 0,400 | 1,000 |
