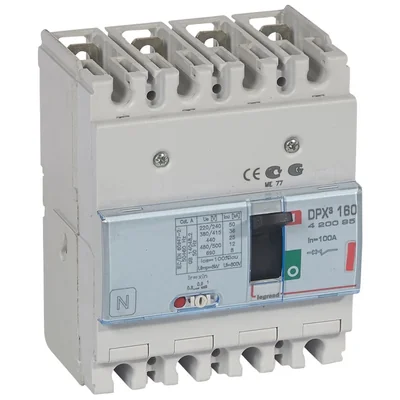

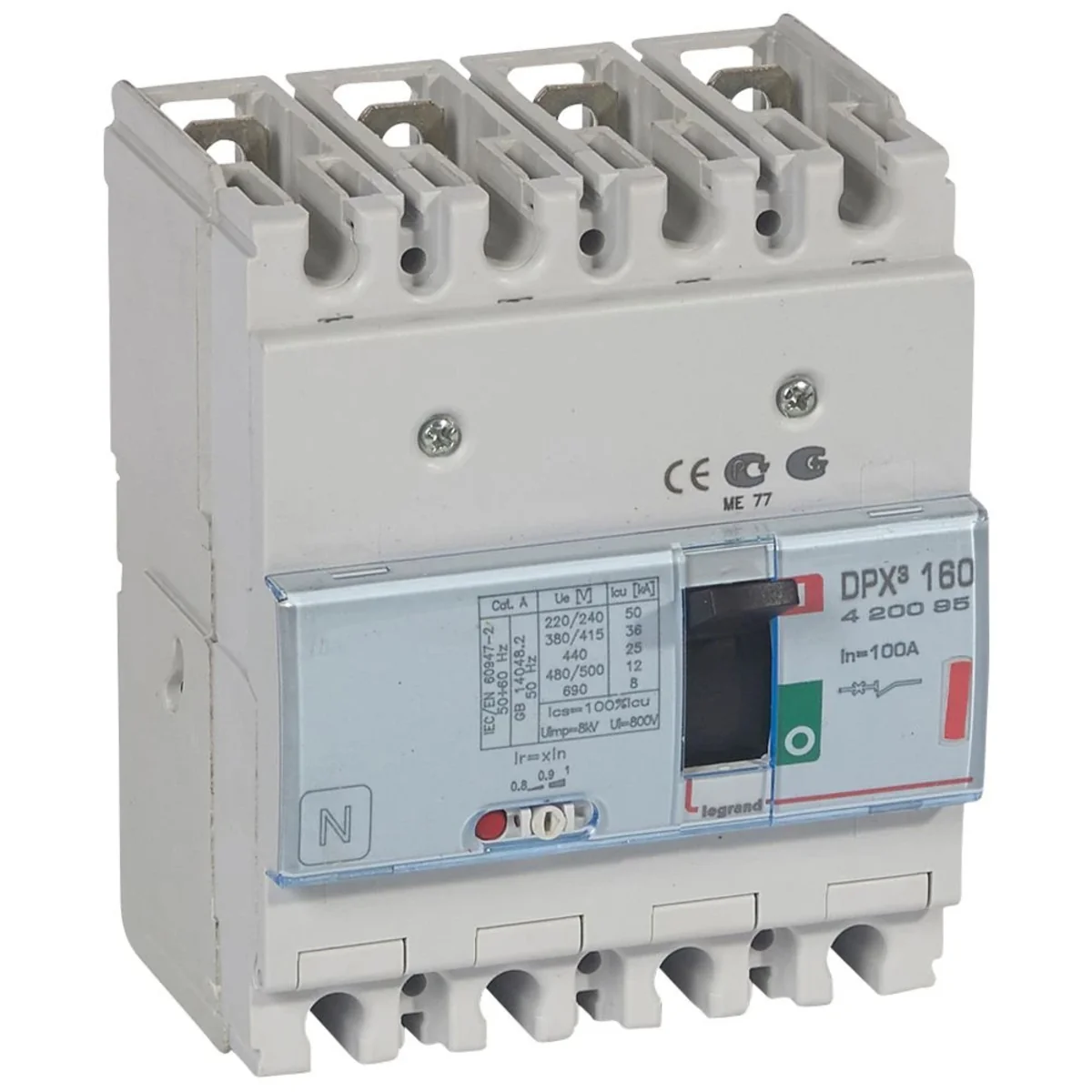

CIRCUIT BREAKER DPX3 160 4P 100A 36KA 420095
local index:
ALB002LEGR
Catalog number:
420095
EAN code:
3245064200950
Manufacturer:
LEGRAND
Price:
1 549,44 zł
gross / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Technical data
Other technical data
-
Rated permanent current Iu100 A
-
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz36 kA
-
Adjustment range short-term delayed short-circuit release1000 ... 1000 A
-
Device constructionBuilt-in device fixed built-in technique
-
Type of electrical connection of main circuitScrew connection
-
DIN rail (top hat rail) mounting optionalYes
-
Number of auxiliary contacts as change-over contact1
-
With integrated under voltage releaseYes
-
Position of connection for main current circuitFront side
-
Complete device with protection unitYes
-
Motor drive optionalYes
-
Rated voltage220 ... 690 V
-
Overload release current setting80 ... 100 A
-
Adjustment range undelayed short-circuit release1000 ... 1000 A
-
Integrated earth fault protectionNo
-
Suitable for DIN rail (top hat rail) mountingYes
-
Number of auxiliary contacts as normally closed contact1
-
With switched-off indicatorYes
-
Number of poles4
-
Type of control elementToggle
-
Motor drive integratedNo
-
Degree of protection (IP)IP30
Manufacturer details
-
ManufacturerLegrand Polska Sp. z o.o.
-
Address57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
-
E-mail
Bulk packaging
| A kind of package | Karton | Paleta |
| Quantity | 1 pcs. | 50 pcs. |
| Weight (kg) | 1,383 | 69,150 |
| Volume (m3) | 0,003 | 0,324 |
| Width (m) | 0,125 | 1,200 |
| Length (m) | 0,115 | 0,270 |
| Depth (m) | 0,185 | 1,000 |
