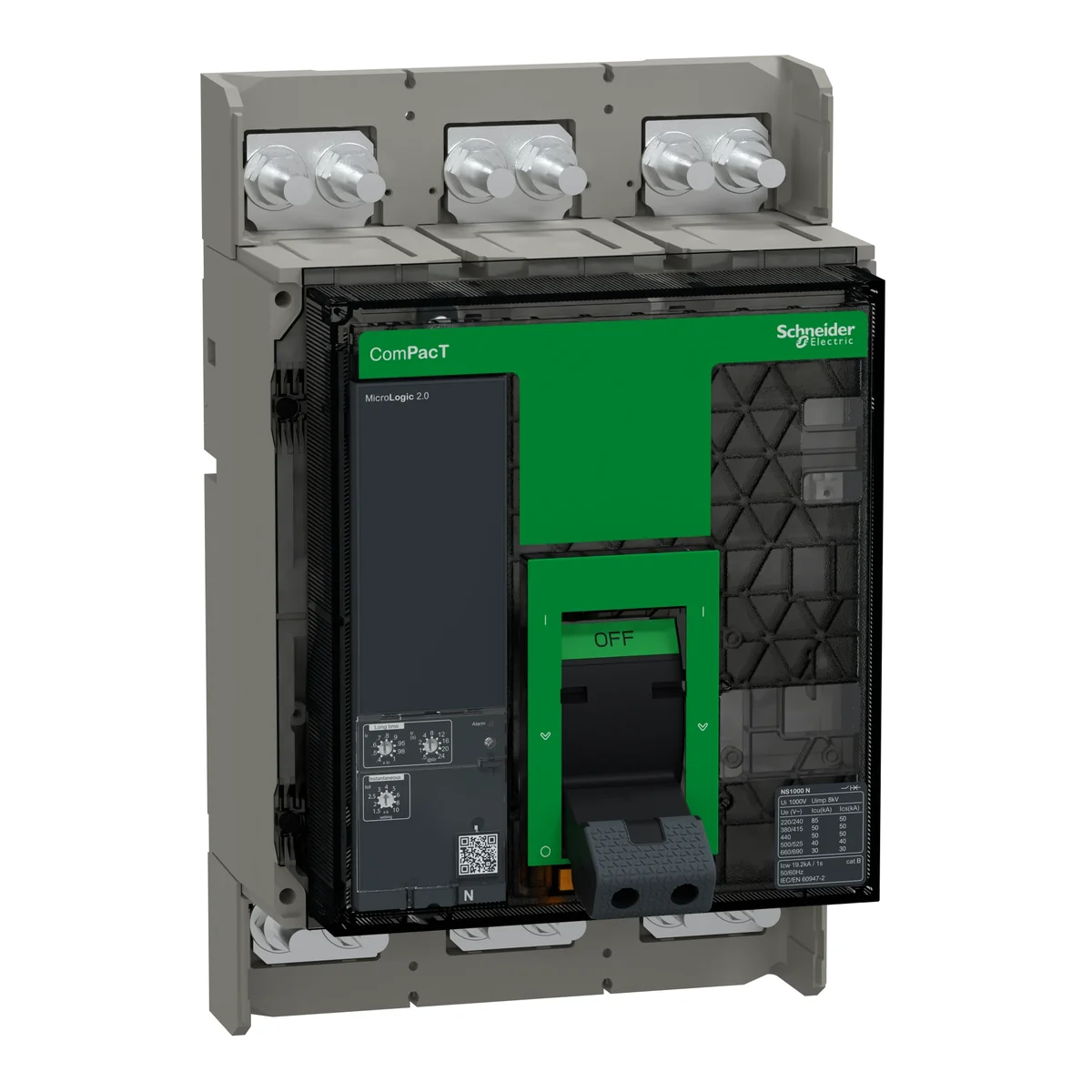

Circuit breaker, ComPacT NS1000N, 50kA at 415VAC, 3P, stationary, manual control, MicroLogic 2.0, 1000A C100N320FM
Índice local:
ALP016SCHN
Número de catálogo:
C100N320FM
Código EAN:
3606482097445
Fabricante:
SCHNEIDER ELECTRIC
Precio:
9 936,68 zł
gross / uds.
(IVA incluido 23%)
Por encargo
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir
Pregunta por el producto
Datos técnicos
Otros datos técnicos
-
Rated permanent current Iu1000 A
-
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz50 kA
-
Adjustment range undelayed short-circuit release600 ... 10000 A
-
Type of electrical connection of main circuitScrew connection
-
Suitable for DIN rail (top hat rail) mountingNo
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
With integrated under voltage releaseNo
-
Position of connection for main current circuitFront side
-
Complete device with protection unitYes
-
Motor drive optionalYes
-
Rated voltage690 ... 690 V
-
Overload release current setting400 ... 1000 A
-
Integrated earth fault protectionNo
-
Device constructionBuilt-in device fixed built-in technique
-
DIN rail (top hat rail) mounting optionalNo
-
Number of auxiliary contacts as normally open contact0
-
With switched-off indicatorYes
-
Number of poles3
-
Type of control elementToggle
-
Motor drive integratedNo
-
Degree of protection (IP)IP40
