Cam switch with front plate ŁK 63-12 IP-65 926312

local index:
ALO410ELDZ
Catalog No:
926312
EAN code:
5906197480968
Manufacturer: ELEKTROMET
Level of security: IP65
Price:
30,09 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

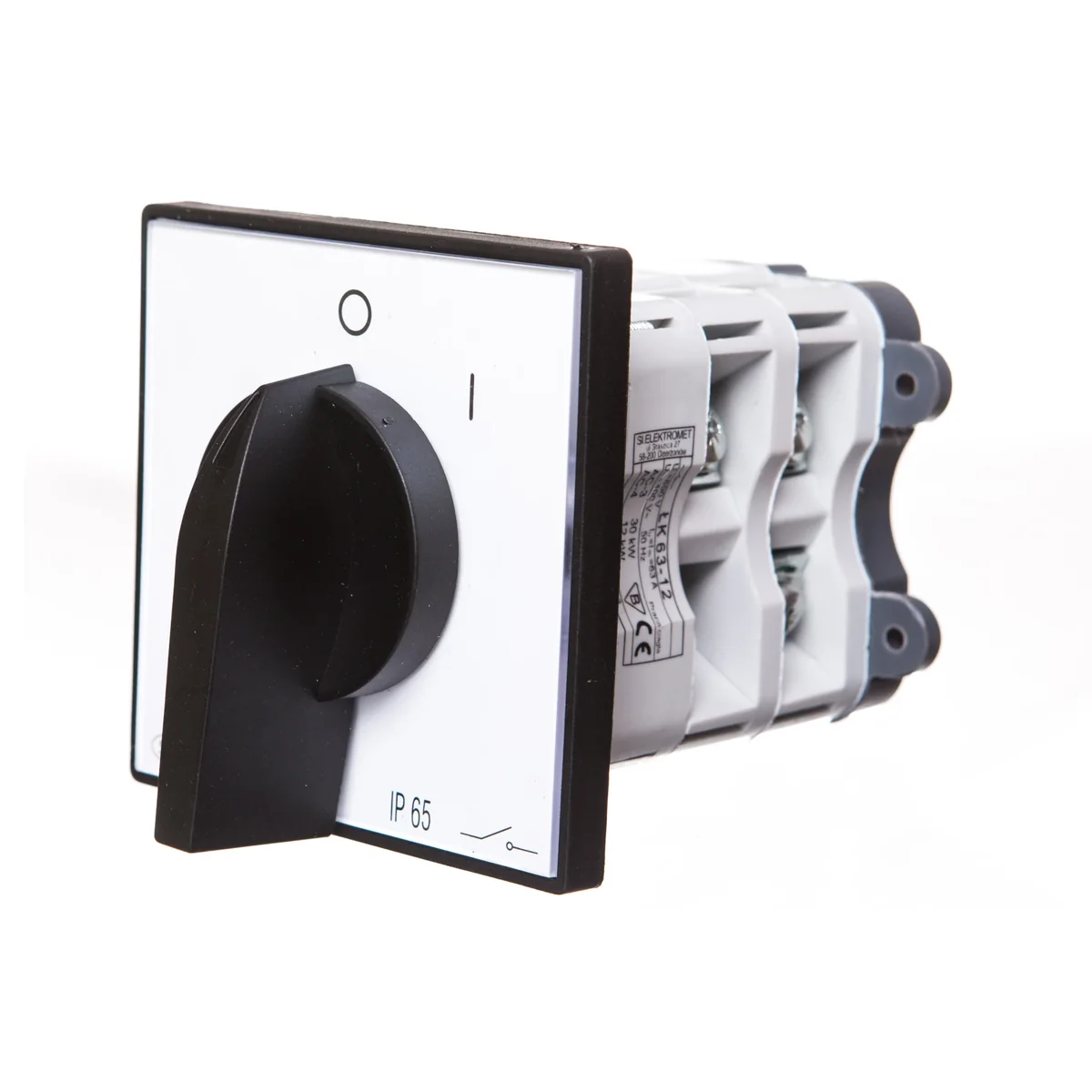

Cam switch with front plate ŁK 63-12 IP-65

Technical data

  • Level of security
    IP65
  • PKWIU
    27.33.11.0

Other technical data

  • Model
    On/Off switch
  • With zero (off) position
    Yes
  • Rated permanent current Iu
    80 A
  • Rated operation power at AC-3, 400 V
    30 kW
  • Suitable for front mounting
    Yes
  • Type of control element
    Turn button
  • Number of poles
    3
  • With retraction in 0-position
    No
  • Rated operation current Ie at AC-3, 400 V
    57 A
  • Degree of protection (IP), front side
    IP65
  • Complete device in housing
    No
  • Type of electrical connection of main circuit
    Screw connection

Bulk packaging

A kind of package Karton
Quantity 1 pcs.
Weight (kg) 0,625
Width (m) 0,094
Length (m) 0,094
Depth (m) 0,138
