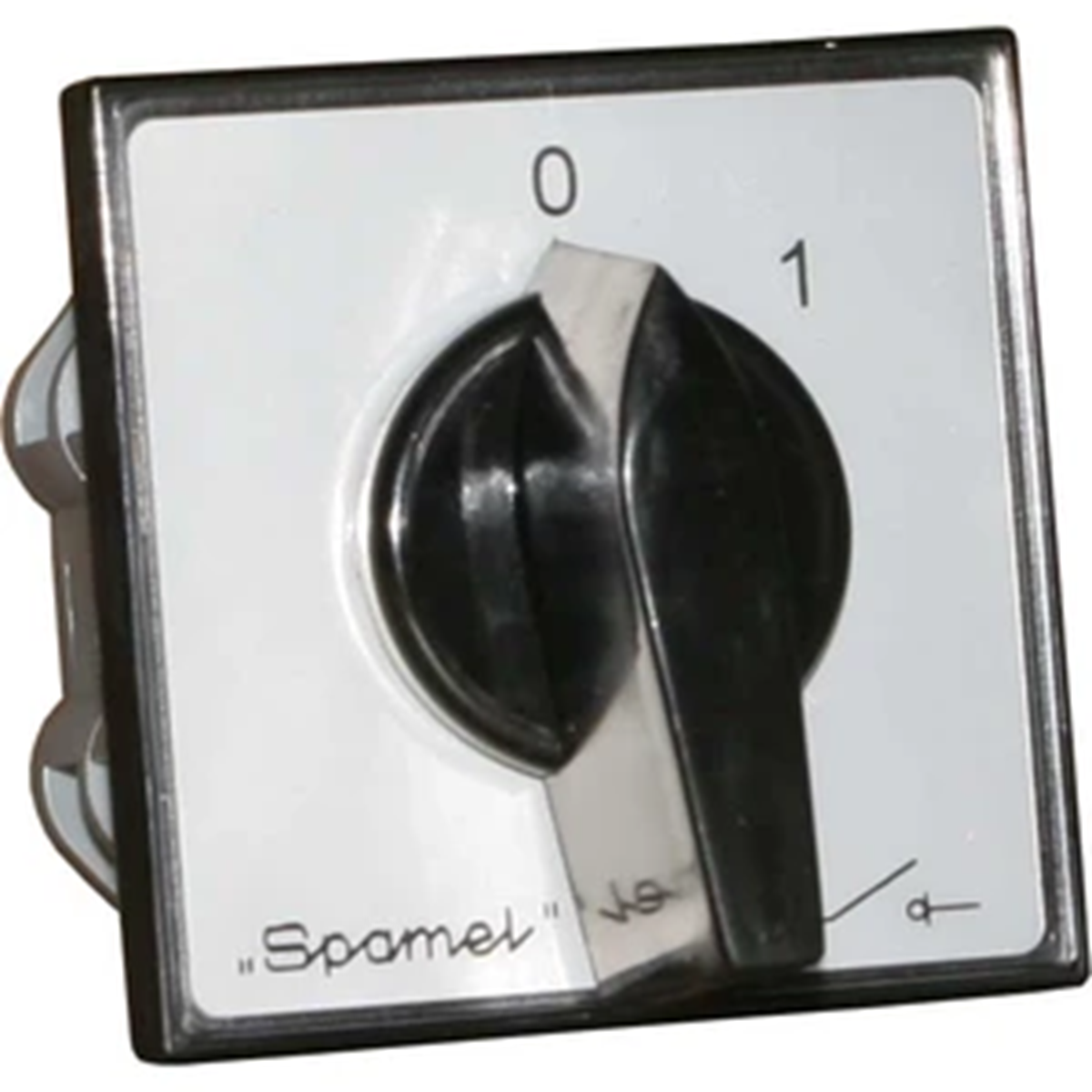

Cam switch switch disconnector 0-1 double pole 16A built-in ŁK16R-1.828\P03
local index:
ALK002SPAM
Catalog No:
ŁK16R-1.828\P03
EAN code:
5907723005433
Price:
13,44 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Cam switch switch disconnector 0-1 double pole 16A built-in. Cam switches are electric rotary multi-circuit switches adapted to switch on and off currents. Cam switches are used in the circuits of low voltage electrical installations, especially as circuit breakers, disconnectors, switches and control switches. Cam switches can be installed indoors (pollution degree 3 - industrial use) at -40...+70°C.
Technical data
-
ColorBlack
-
Level of securityIP65
-
Accurate colorBlack
-
Continuous current [A]16
-
Rated operational power at AC-3, 400 V [kW]3.5
Other technical data
-
ModelReverser
-
With zero (off) positionYes
-
Rated permanent current Iu16 A
-
Degree of protection (IP), front sideIP65
-
Number of auxiliary contacts as normally open contact0
-
Suitable for floor mountingYes
-
Suitable for distribution board installationNo
-
Complete device in housingNo
-
Type of control elementTurn button
-
Number of poles2
-
With retraction in 0-positionNo
-
Rated operation power at AC-3, 400 V8 kW
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Suitable for front mountingNo
-
Suitable for intermediate mountingYes
-
Housing materialPlastic
-
Type of electrical connection of main circuitScrew connection
