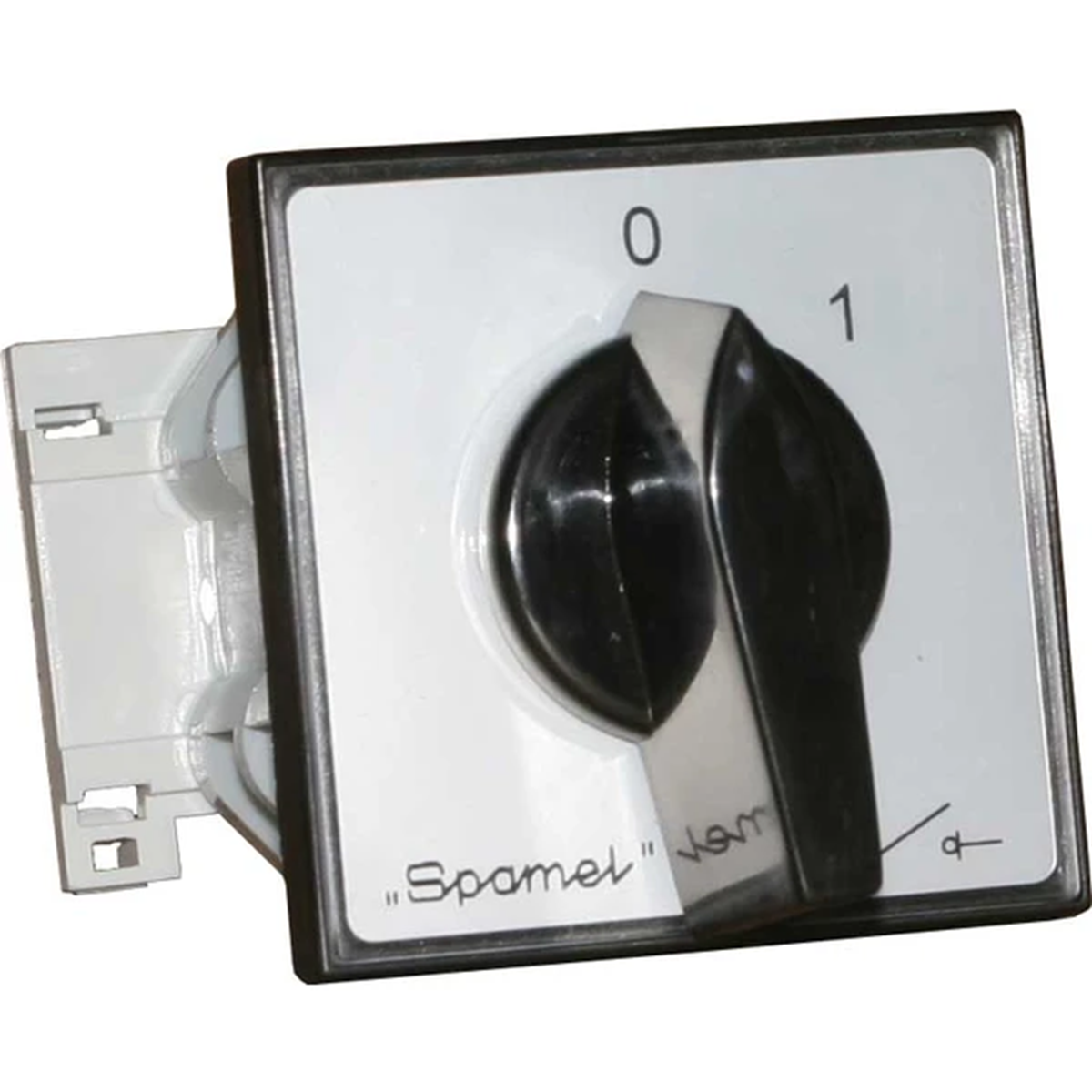

Cam switch, switch disconnector 0-1-2 four-level 25A, in OB2 housing ŁK25R-4.8396\S03

Índice local:
ALK224SPAM
Número de catálogo:
ŁK25R-4.8396\S03
Código EAN:
5907723158887
Fabricante: SPAMEL
Color: Gray
Rated insulation voltage [V]: 690
Continuous current [A]: 25
Precio:
172,06 zł
gross / uds.
(IVA incluido 23%)
Entrega en 3h
hasta 2 semanas (días laborables)
Recogida en 1h
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir

Descripción del producto

Cam switches are devices for mechanical switching on and off of currents with the possibility of implementing a specific switching program as a function of turning the knob. Cam switches are used in housings of low voltage electrical installations, especially as circuit breakers, disconnectors, switches and control switches. Cam switches can be installed indoors (pollution degree 3 - industrial use) at -40...+70°C.

Datos técnicos

  • Color
    Gray
  • Continuous current [A]
    25
  • Accurate color
    Gray
  • Rated insulation voltage [V]
    690
  • Level of security
    IP65

Otros datos técnicos

  • Model
    Reverser
  • With zero (off) position
    Yes
  • Rated permanent current Iu
    25 A
  • Degree of protection (IP), front side
    IP65
  • Number of auxiliary contacts as normally open contact
    0
  • Suitable for floor mounting
    Yes
  • Suitable for distribution board installation
    No
  • Complete device in housing
    No
  • Type of control element
    Turn button
  • Number of poles
    4
  • With retraction in 0-position
    No
  • Rated operation power at AC-3, 400 V
    13 kW
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Suitable for front mounting
    No
  • Suitable for intermediate mounting
    Yes
  • Housing material
    Plastic
  • Type of electrical connection of main circuit
    Screw connection
