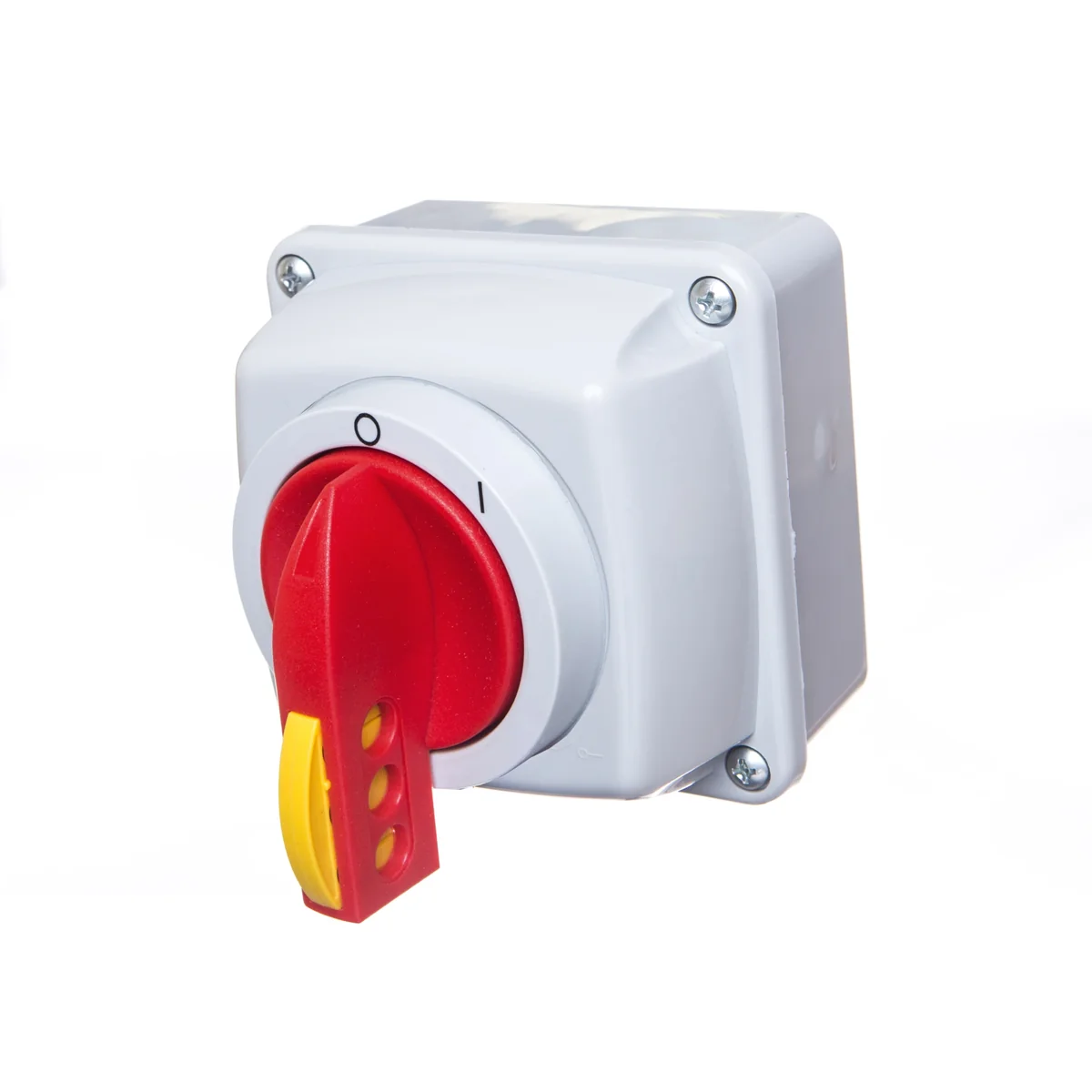

Cam switch arc E25-13/5 IP-65 for padlock 952583

local index:
ALK013ELDZ
Catalog No:
952583
EAN code:
5906197488605
Manufacturer: ELEKTROMET
Rated current [A]: 25
Level of security: IP65
Price:
28,83 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 19 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Cam switch arc E25-13/5 IP-65 for padlock Enable-Disable 0-I

Technical data

  • Rated current [A]
    25
  • PKWIU
    27.33.11.0
  • Level of security
    IP65

Other technical data

  • Model
    On/Off switch
  • With zero (off) position
    Yes
  • Rated permanent current Iu
    25 A
  • Degree of protection (IP), front side
    IP65
  • Complete device in housing
    Yes
  • Type of control element
    Turn button
  • Number of poles
    3
  • With retraction in 0-position
    No
  • Rated operation power at AC-3, 400 V
    8.5 kW
  • Suitable for front mounting
    No
  • Housing material
    Plastic
  • Type of electrical connection of main circuit
    Screw connection

Bulk packaging

A kind of package Karton
Quantity 1 pcs.
Weight (kg) 0,366
Width (m) 0,100
Length (m) 0,100
Depth (m) 0,115
