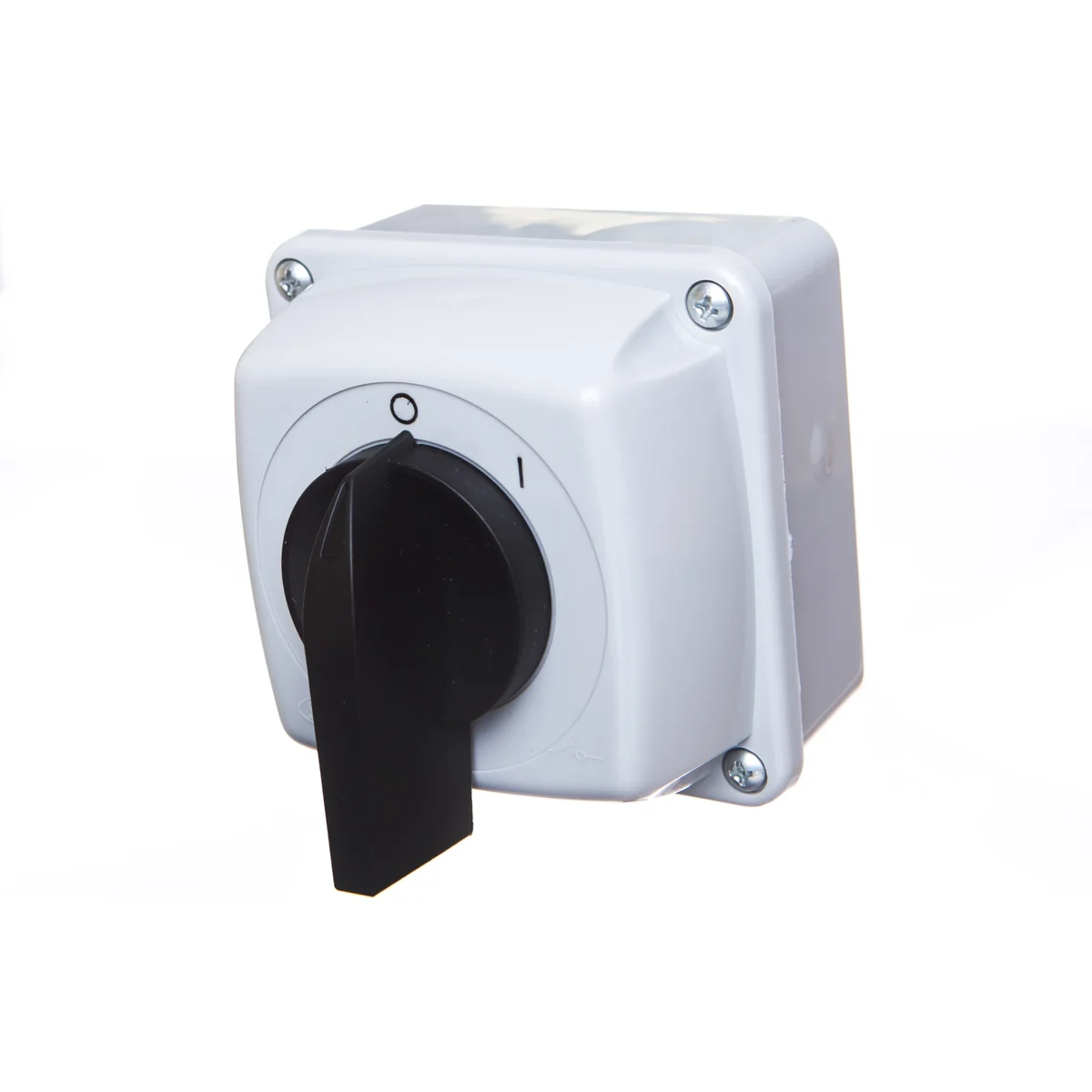

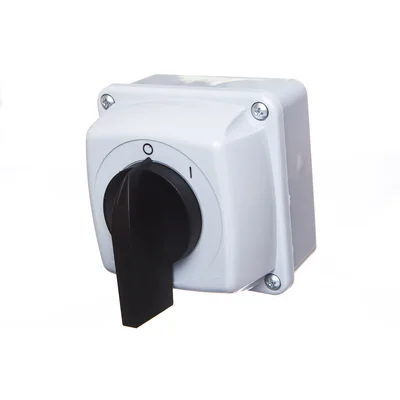

Cam switch ARC E25-13 O-I 3P 25A IP65 952512

local index:
ALK311ELDZ
Catalog No:
952512
EAN code:
5906197480524
Manufacturer: ELEKTROMET
Depth [mm]: 90
Number of poles: 3
Rated current [A]: 25
Price:
25,37 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 21 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

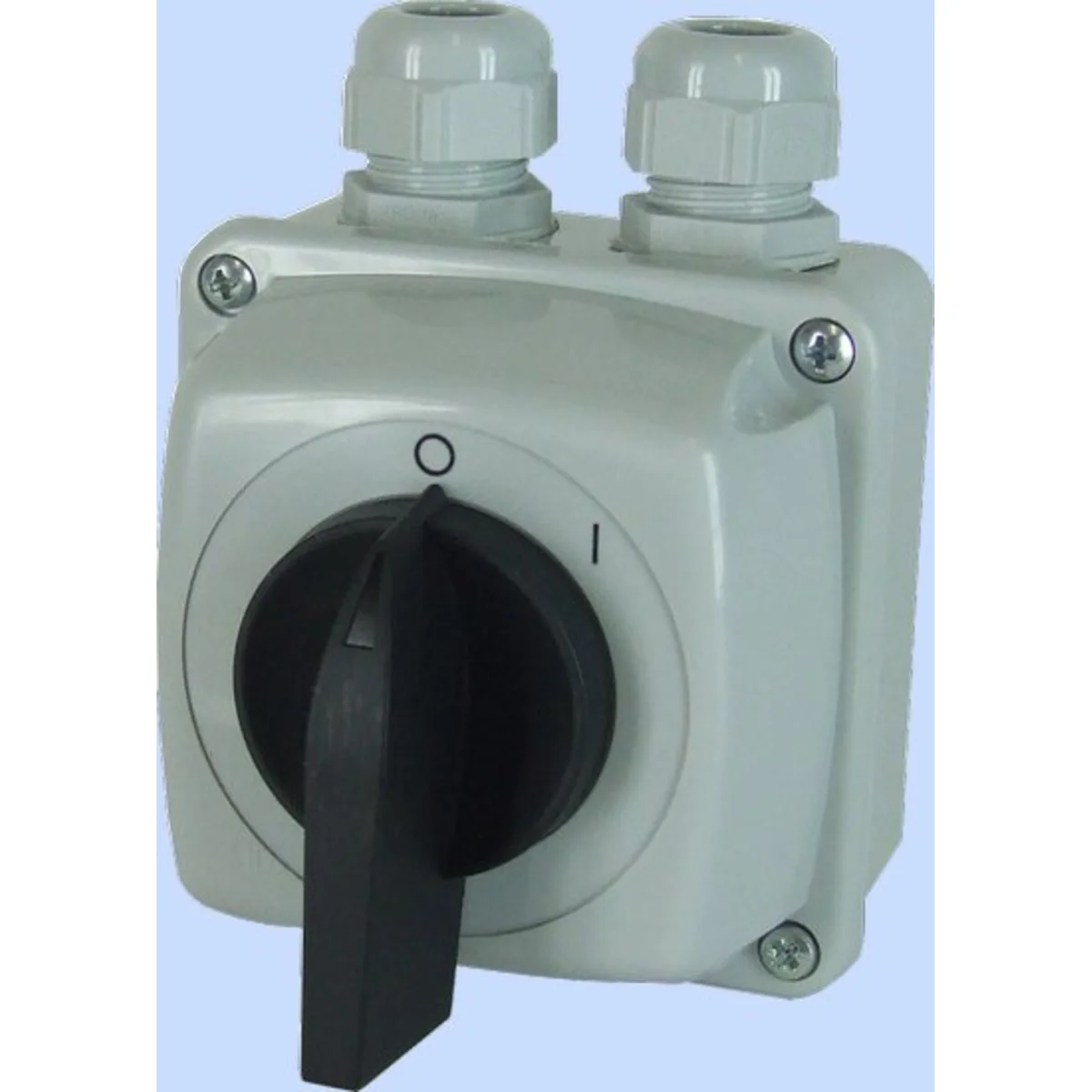

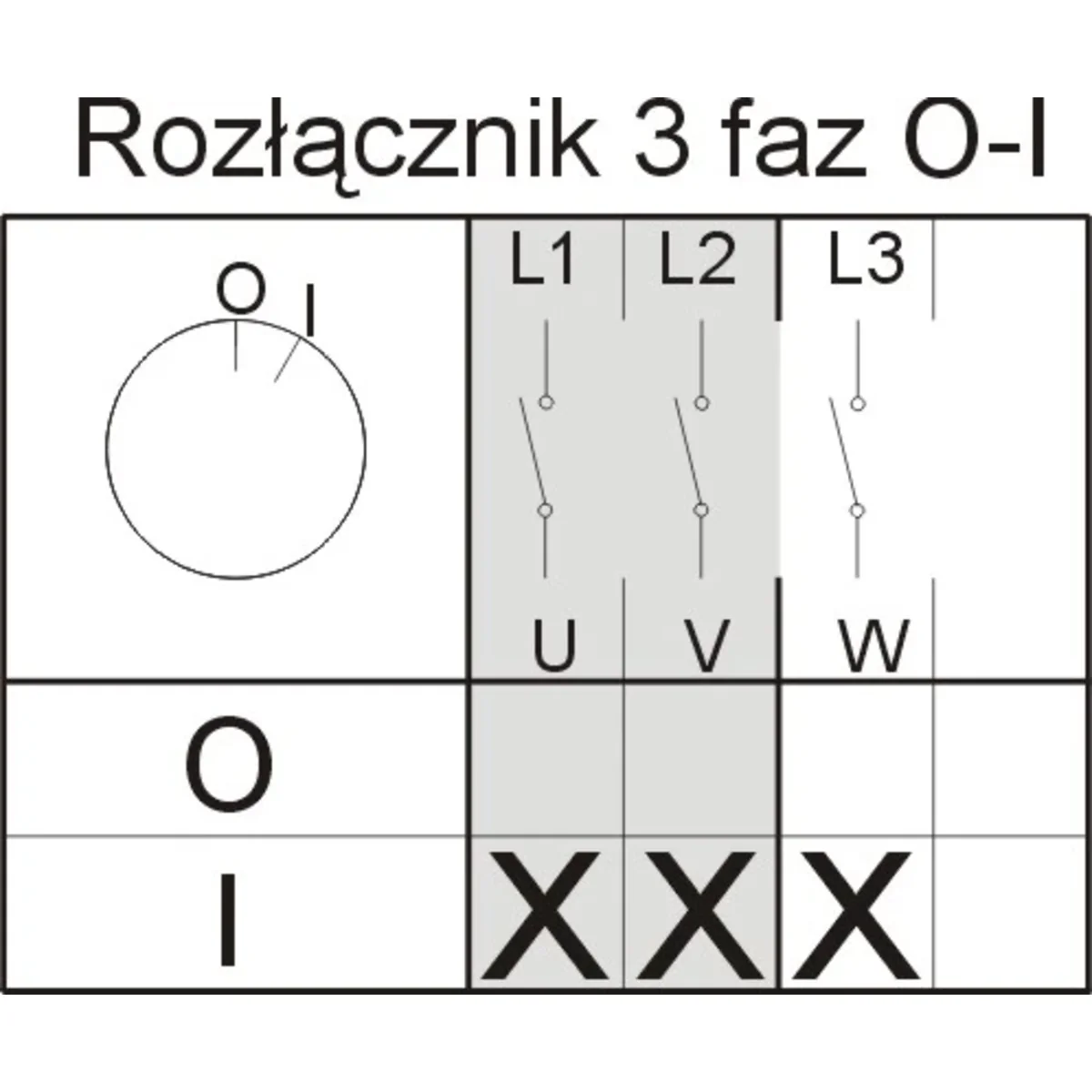

Cam switch ŁUK E25-13 O-I 3P 25A IP65 in a housing. Rated impulse withstand voltage: 6 kV Rated short-circuit making current: 1 kA Rated short-time withstand current: 0.7 kA Switching program: 3-phase disconnector, on-off O-I Design: in the housing

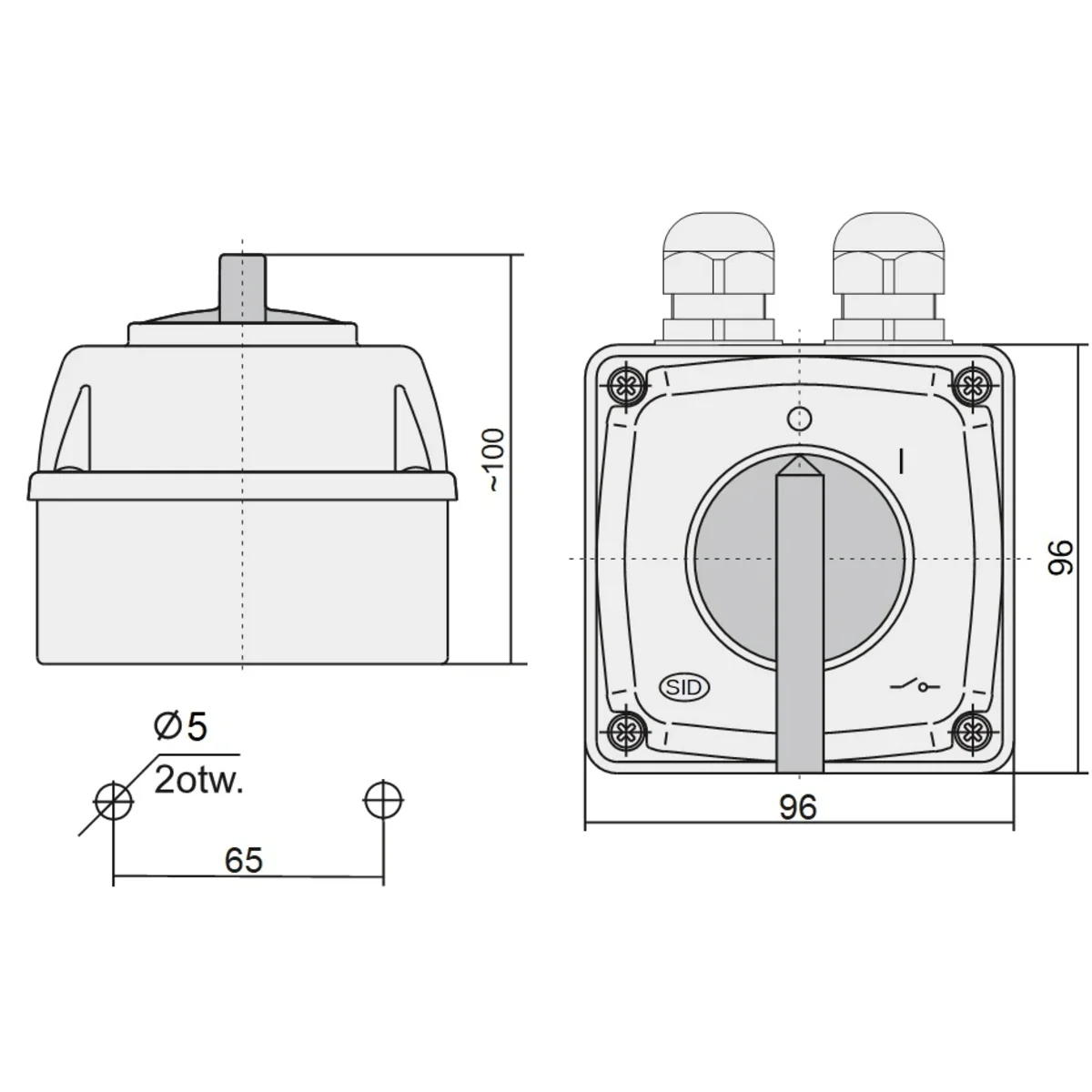

Technical data

  • Depth [mm]
    90
  • Rated current [A]
    25
  • Width [mm]
    96
  • Insulation voltage [V]
    690
  • Number of poles
    3
  • Level of security
    IP65
  • Height [mm]
    96
  • PKWIU
    27.33.11.0

Other technical data

  • Model
    On/Off switch
  • With zero (off) position
    Yes
  • Rated permanent current Iu
    25 A
  • Degree of protection (IP), front side
    IP65
  • Complete device in housing
    Yes
  • Type of control element
    Turn button
  • Number of poles
    3
  • With retraction in 0-position
    No
  • Rated operation power at AC-3, 400 V
    8.5 kW
  • Suitable for front mounting
    No
  • Housing material
    Plastic
  • Type of electrical connection of main circuit
    Screw connection

Bulk packaging

A kind of package Karton
Quantity 1 pcs.
Weight (kg) 0,336
Width (m) 0,100
Length (m) 0,100
Depth (m) 0,115
