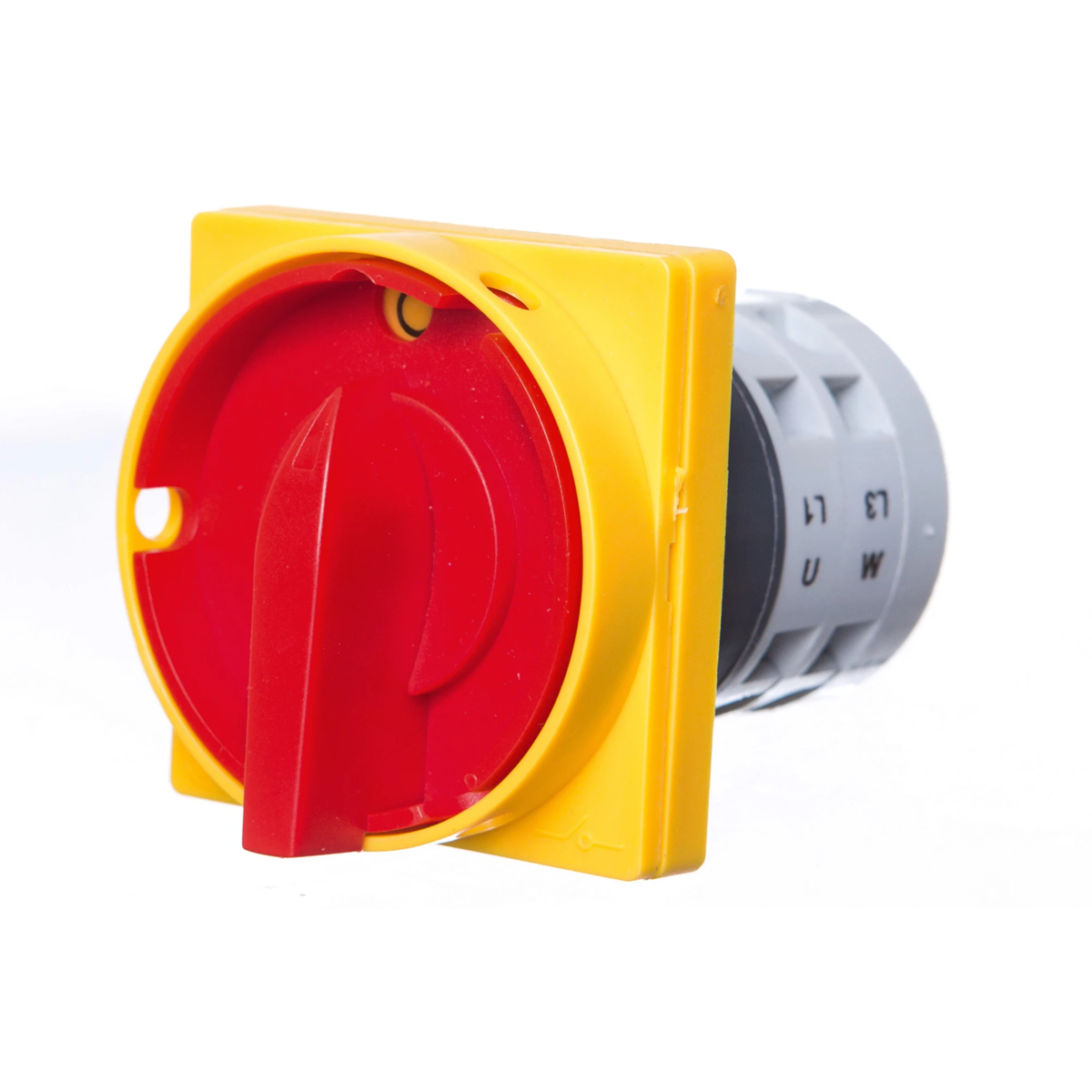

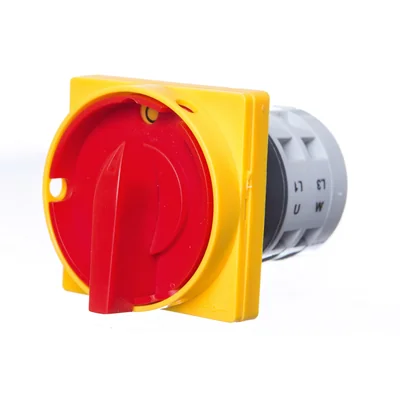

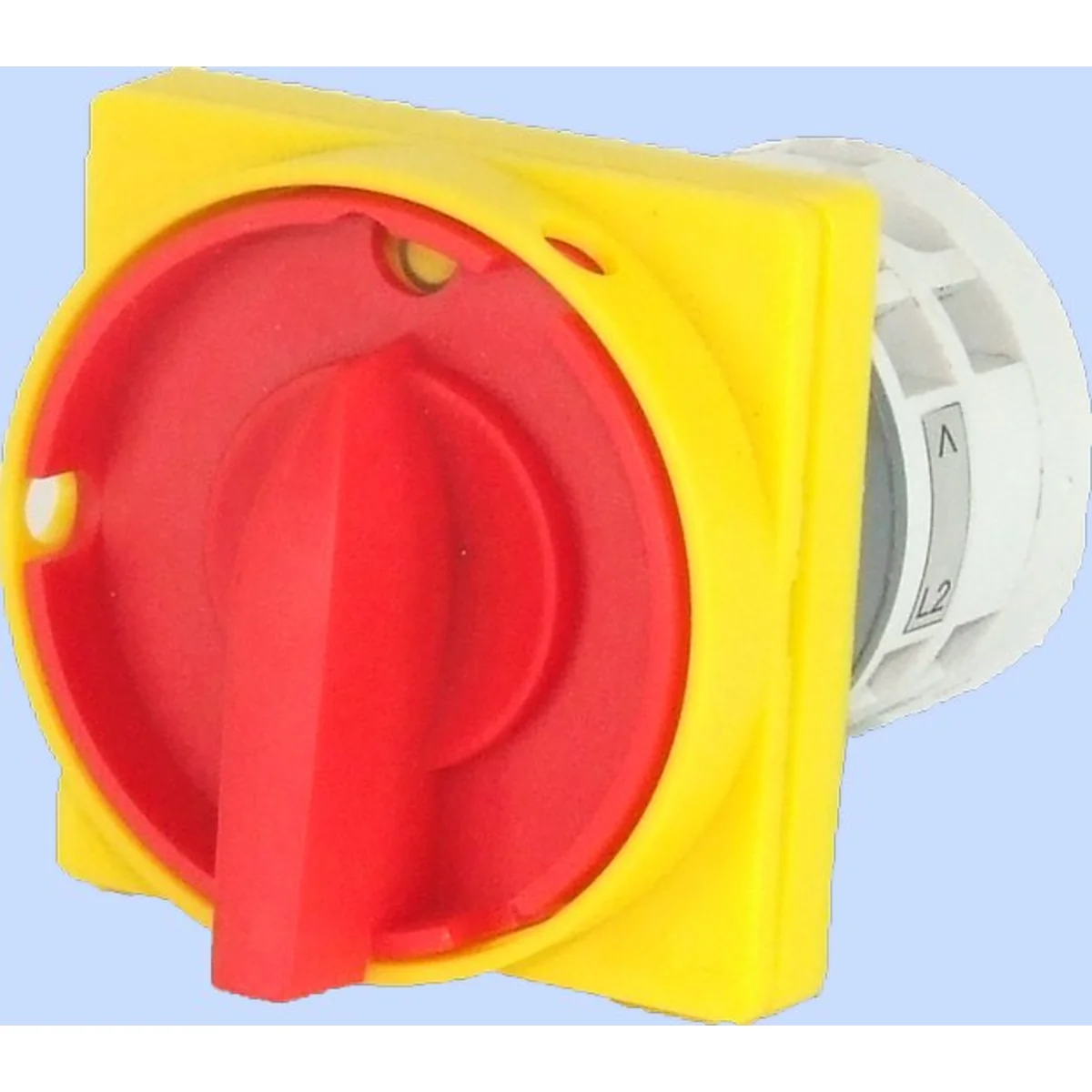

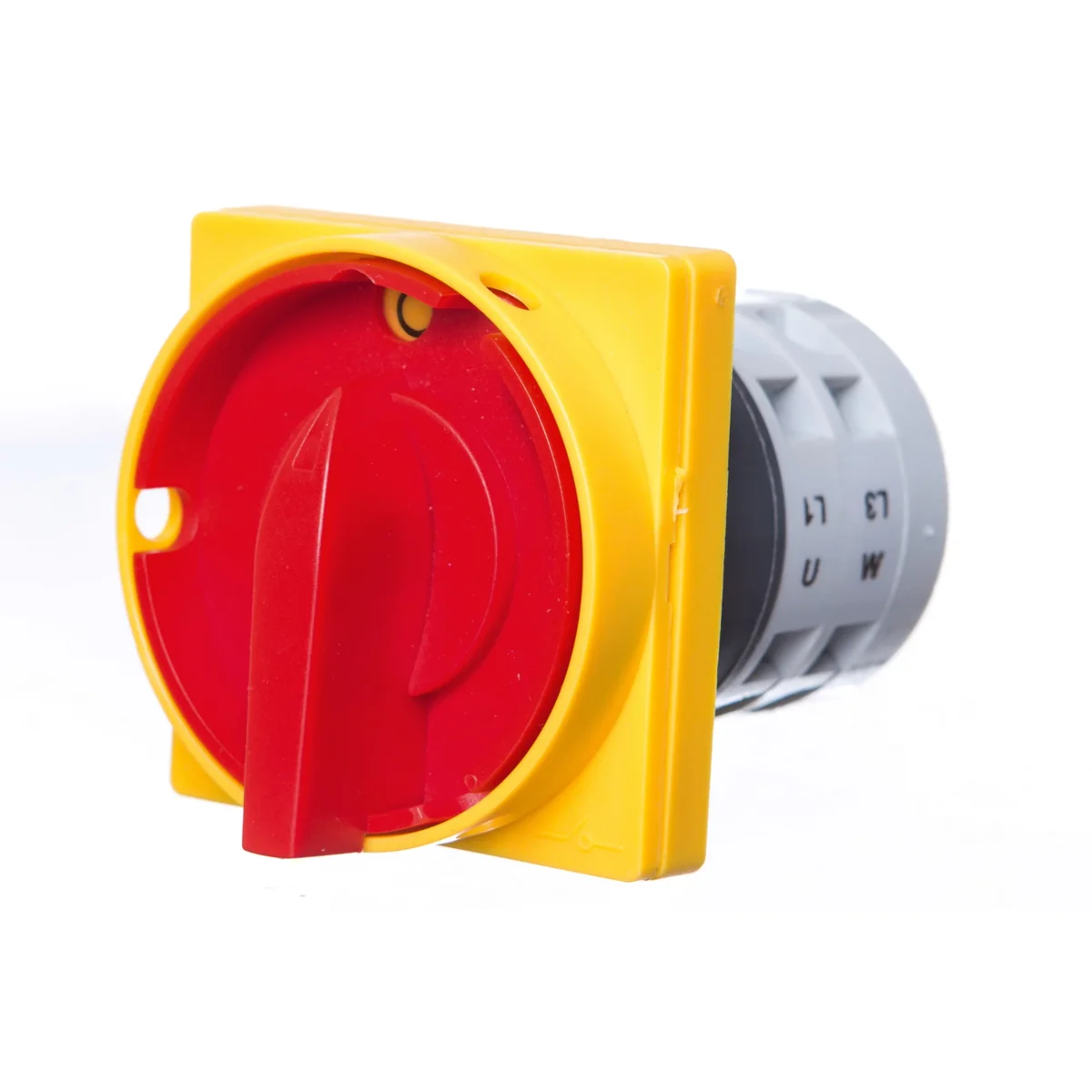

Cam switch ARC E16-15 IP65 for a padlock 951618

local index:
ALK315ELDZ
Catalog No:
951618
EAN code:
5906197482658
Manufacturer: ELEKTROMET
Rated current [A]: 16
Level of security: IP65
Price:
19,73 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 17 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

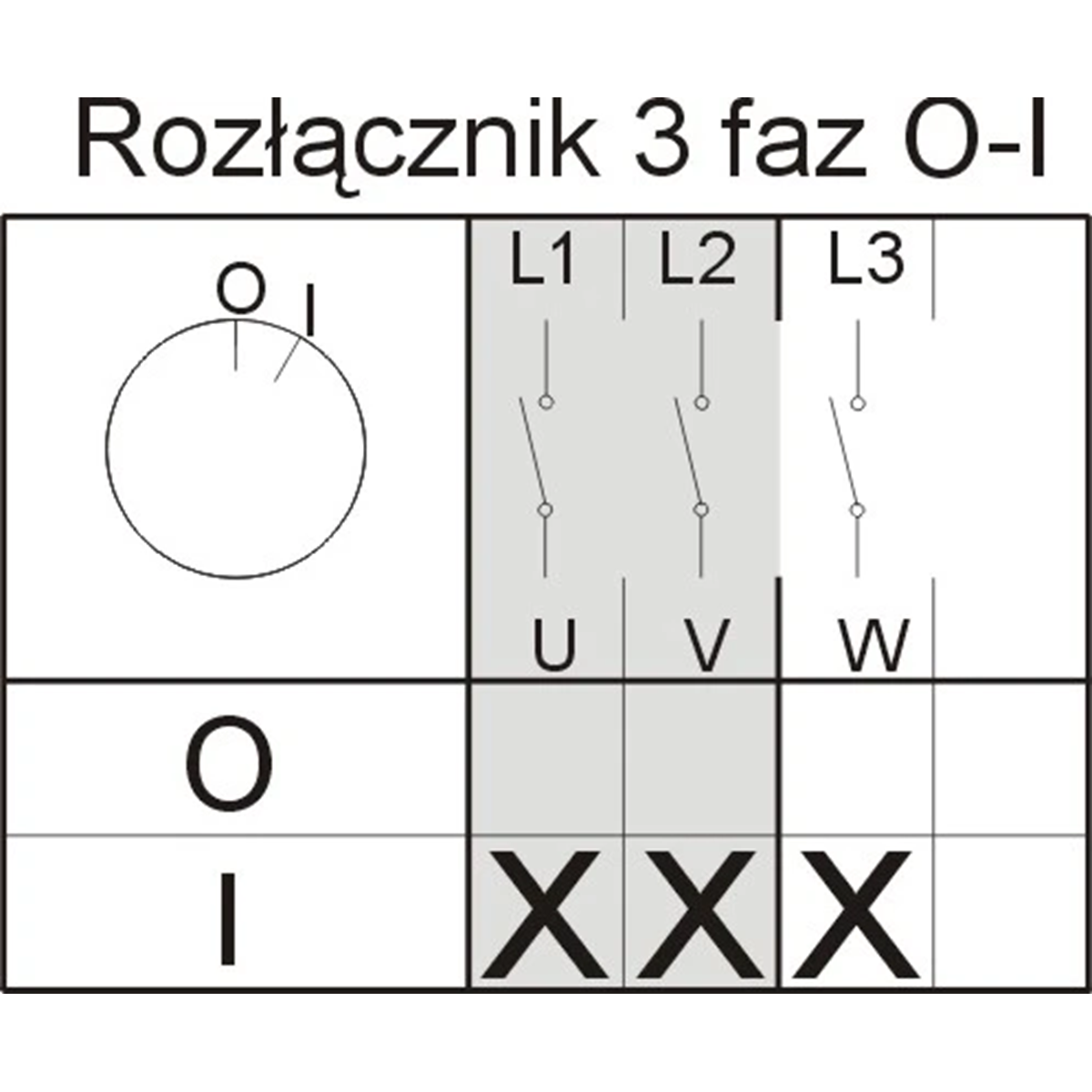

Cam switch ARC E16-15 IP65 for a padlock. Switching program: on-off O-I

Technical data

  • Rated current [A]
    16
  • PKWIU
    27.33.11.0
  • Level of security
    IP65

Other technical data

  • Model
    On/Off switch
  • With zero (off) position
    Yes
  • Rated permanent current Iu
    16 A
  • Rated operation power at AC-3, 400 V
    5 kW
  • Suitable for front mounting
    Yes
  • Type of control element
    Turn button
  • Number of poles
    3
  • With retraction in 0-position
    No
  • Rated operation current Ie at AC-3, 400 V
    10.4 A
  • Degree of protection (IP), front side
    IP65
  • Complete device in housing
    No
  • Type of electrical connection of main circuit
    Screw connection
