Cam switch arc E16-13/5 IP-65 951683

local index:
ALK012ELDZ
Catalog No:
951683
EAN code:
5906197488599
Manufacturer: ELEKTROMET
Level of security: IP65
Price:
26,70 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 20 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

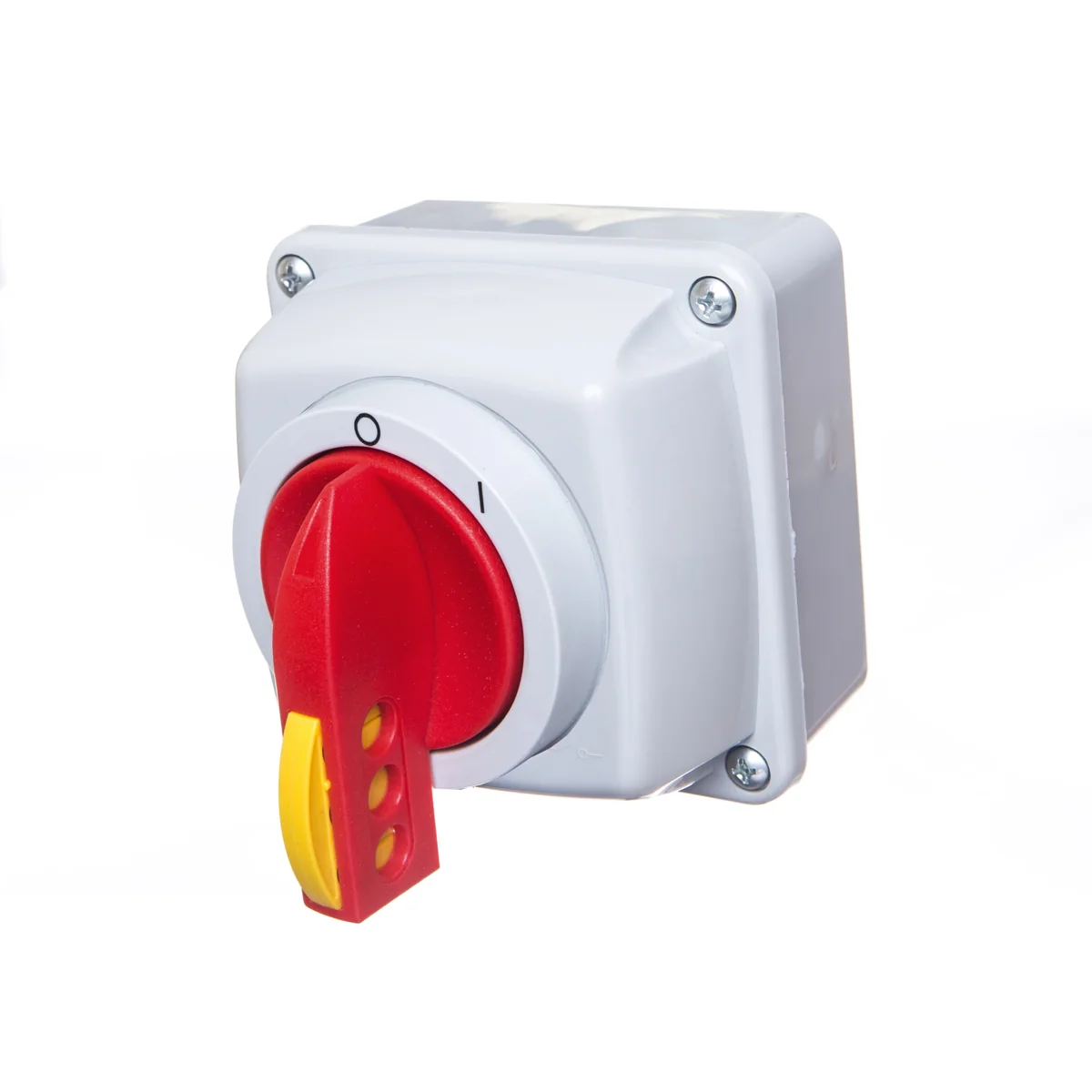

Cam switch arc E16-13/5 IP-65

Technical data

  • Level of security
    IP65
  • PKWIU
    27.33.11.0

Other technical data

  • Model
    On/Off switch
  • With zero (off) position
    Yes
  • Rated permanent current Iu
    16 A
  • Rated operation power at AC-3, 400 V
    5 kW
  • Suitable for front mounting
    No
  • Housing material
    Plastic
  • Type of electrical connection of main circuit
    Screw connection
  • Number of poles
    3
  • With retraction in 0-position
    No
  • Rated operation current Ie at AC-3, 400 V
    10.4 A
  • Degree of protection (IP), front side
    IP65
  • Complete device in housing
    Yes
  • Type of control element
    Turn button

Bulk packaging

A kind of package Karton
Quantity 1 pcs.
Weight (kg) 0,365
Width (m) 0,100
Length (m) 0,100
Depth (m) 0,115
