Cam switch ARC E16-13 0-I 3P 16A IP65 951612

local index:
ALK011ELDZ
Catalog No:
951612
EAN code:
5906197480388
Manufacturer: ELEKTROMET
Depth [mm]: 90
Number of poles: 3
Rated current [A]: 16
Price:
23,26 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 20 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

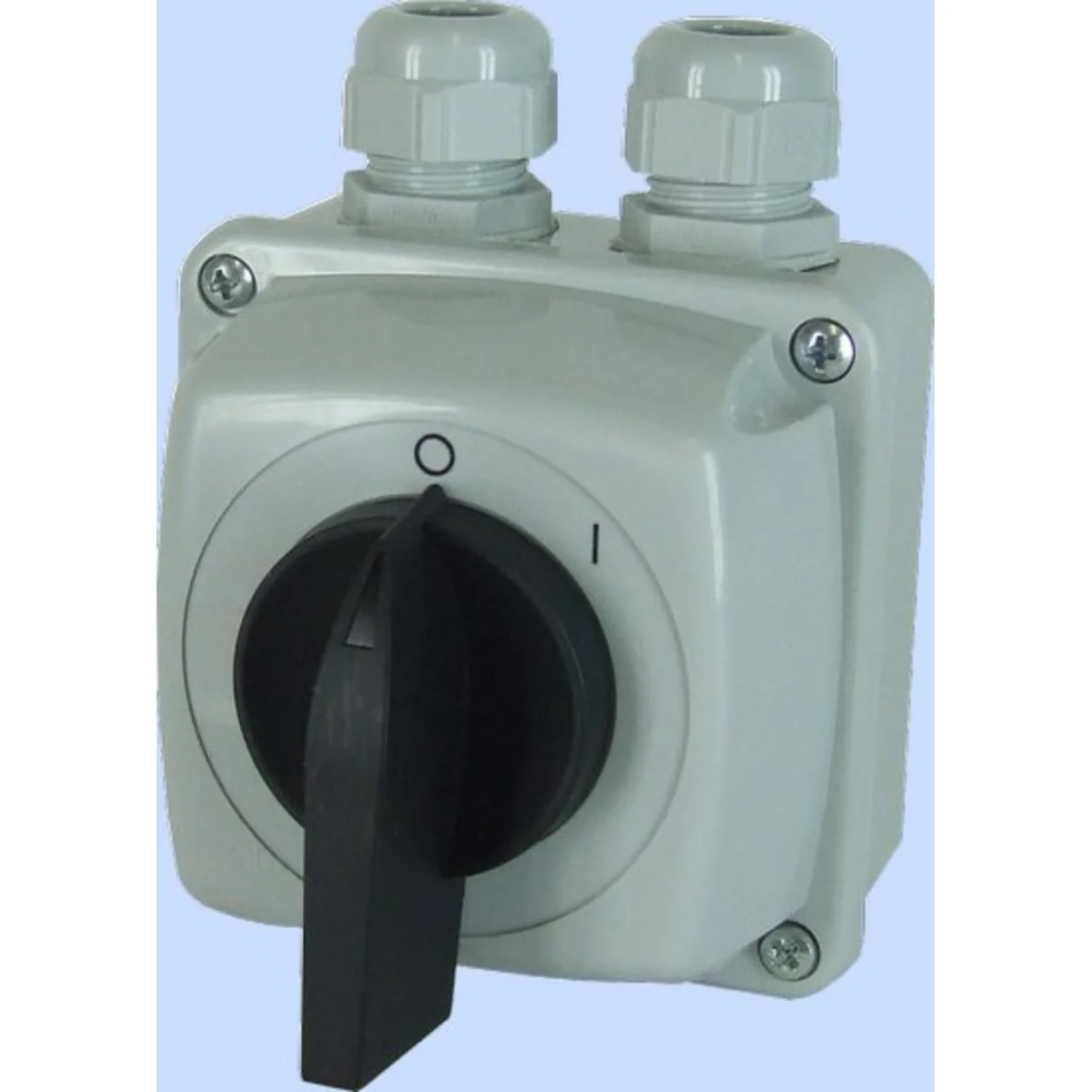

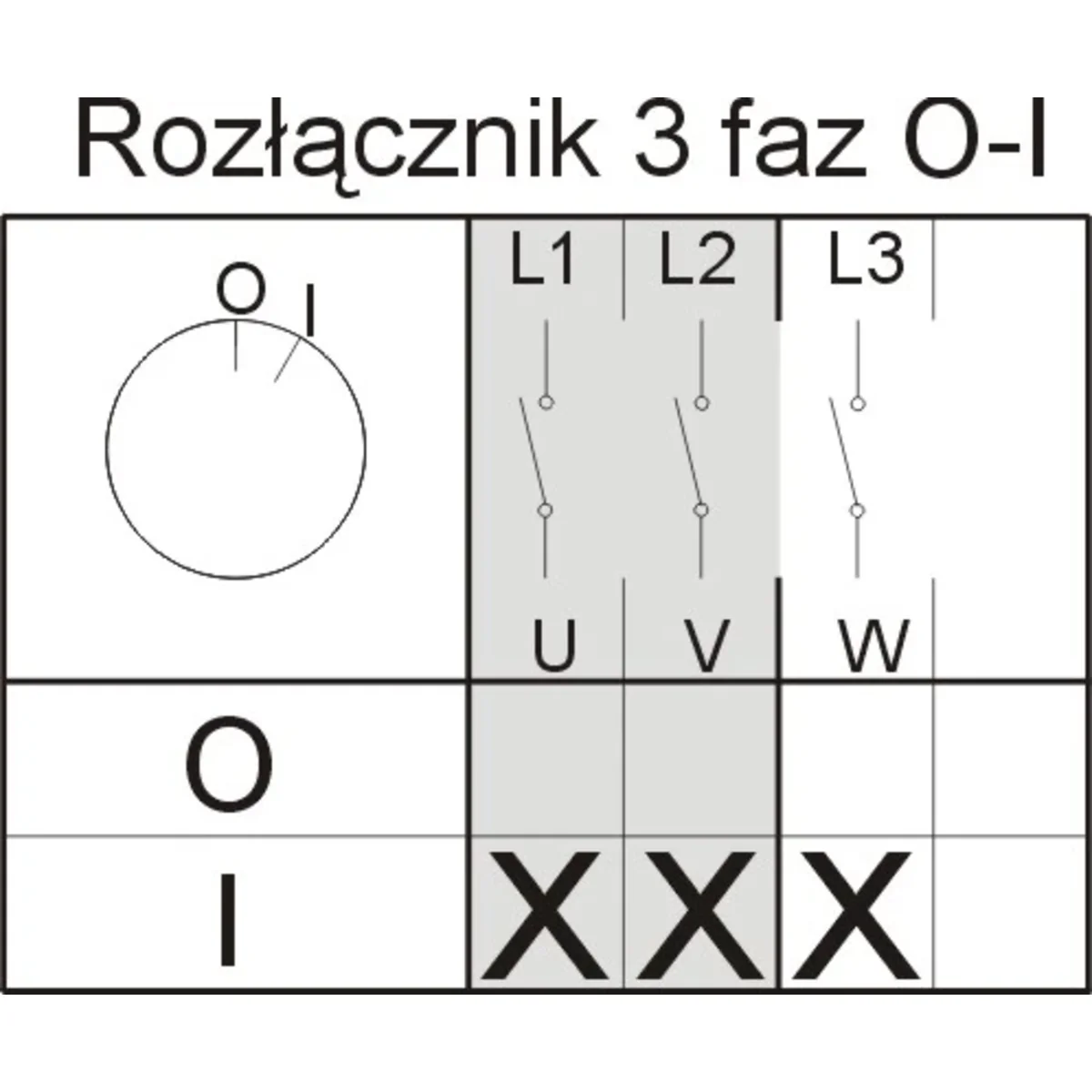

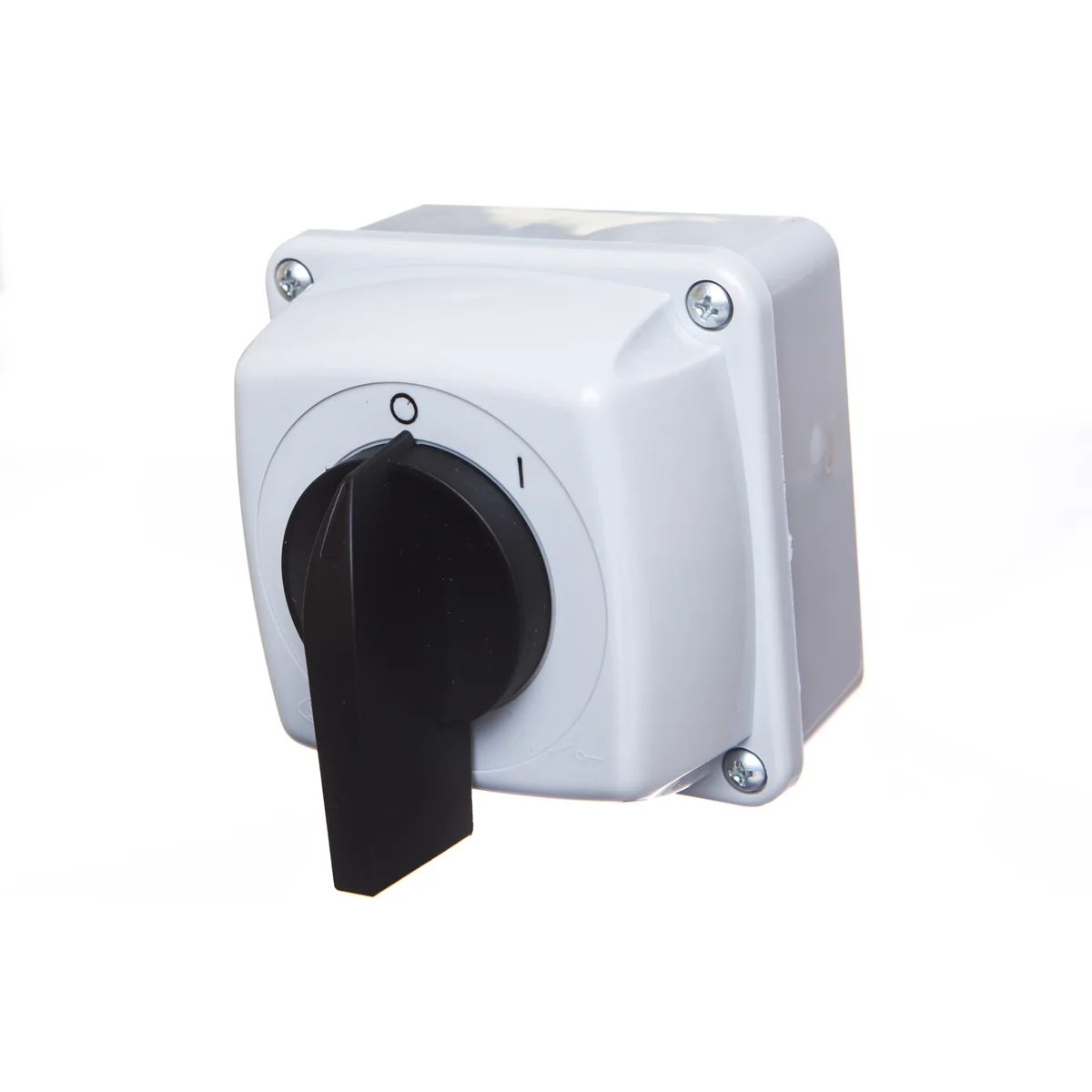

Cam switch ARC E16-13 0-I 3P 16A IP65. Switching program: on-off O-I

Technical data

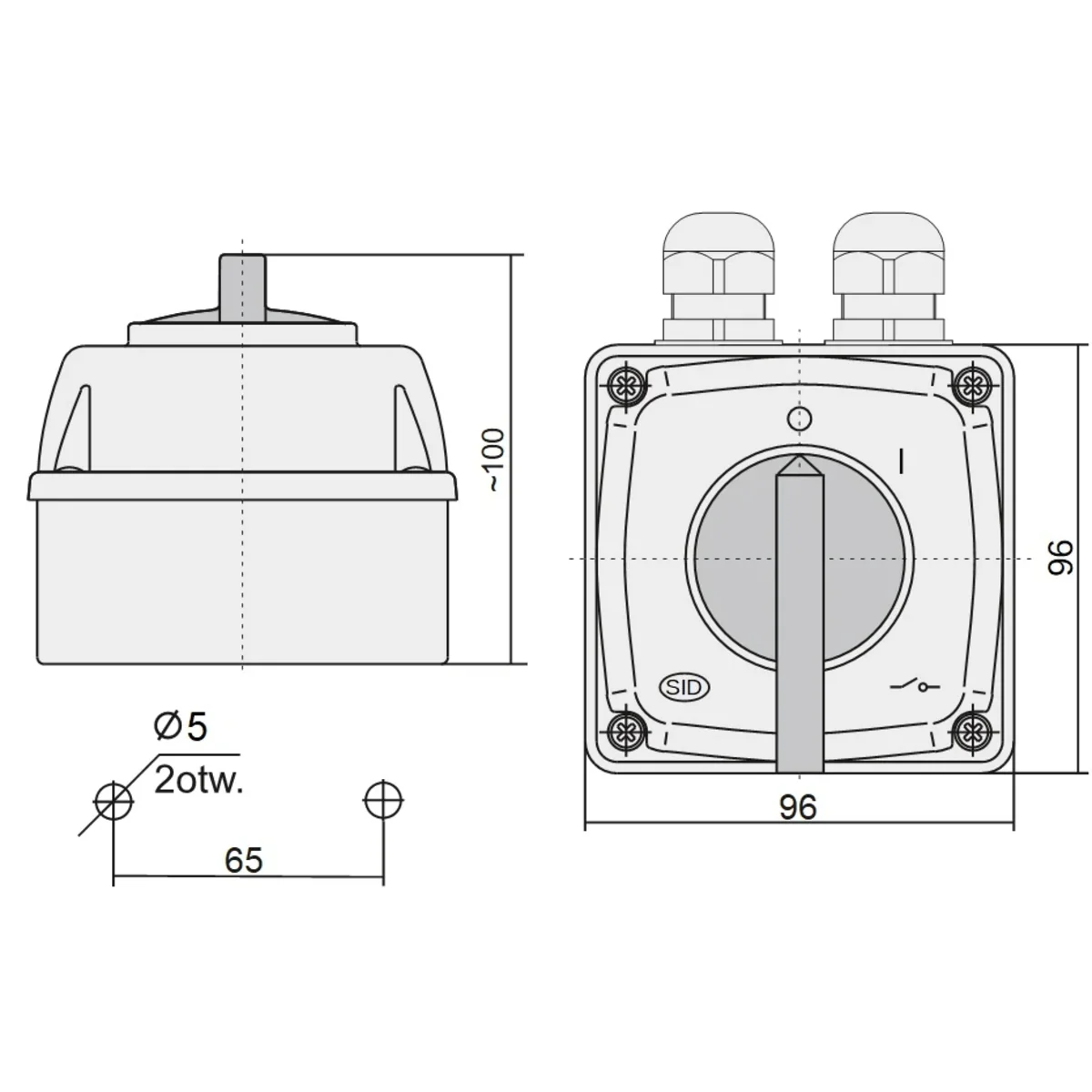

  • Depth [mm]
    90
  • Rated current [A]
    16
  • Width [mm]
    96
  • PKWIU
    27.33.11.0
  • Number of poles
    3
  • Level of security
    IP65
  • Height [mm]
    96

Other technical data

  • Model
    On/Off switch
  • With zero (off) position
    Yes
  • Rated permanent current Iu
    16 A
  • Rated operation power at AC-3, 400 V
    5 kW
  • Suitable for front mounting
    No
  • Housing material
    Plastic
  • Type of electrical connection of main circuit
    Screw connection
  • Number of poles
    3
  • With retraction in 0-position
    No
  • Rated operation current Ie at AC-3, 400 V
    10.4 A
  • Degree of protection (IP), front side
    IP65
  • Complete device in housing
    Yes
  • Type of control element
    Turn button

Bulk packaging

A kind of package Karton
Quantity 1 pcs.
Weight (kg) 0,335
Width (m) 0,100
Length (m) 0,100
Depth (m) 0,115
