Cam switch arc E16-12 0-1 3P 16A IP65 951601
local index:
ALK368ELDZ
Catalog No:
951601
EAN code:
5906197480128
Price:
15,36 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

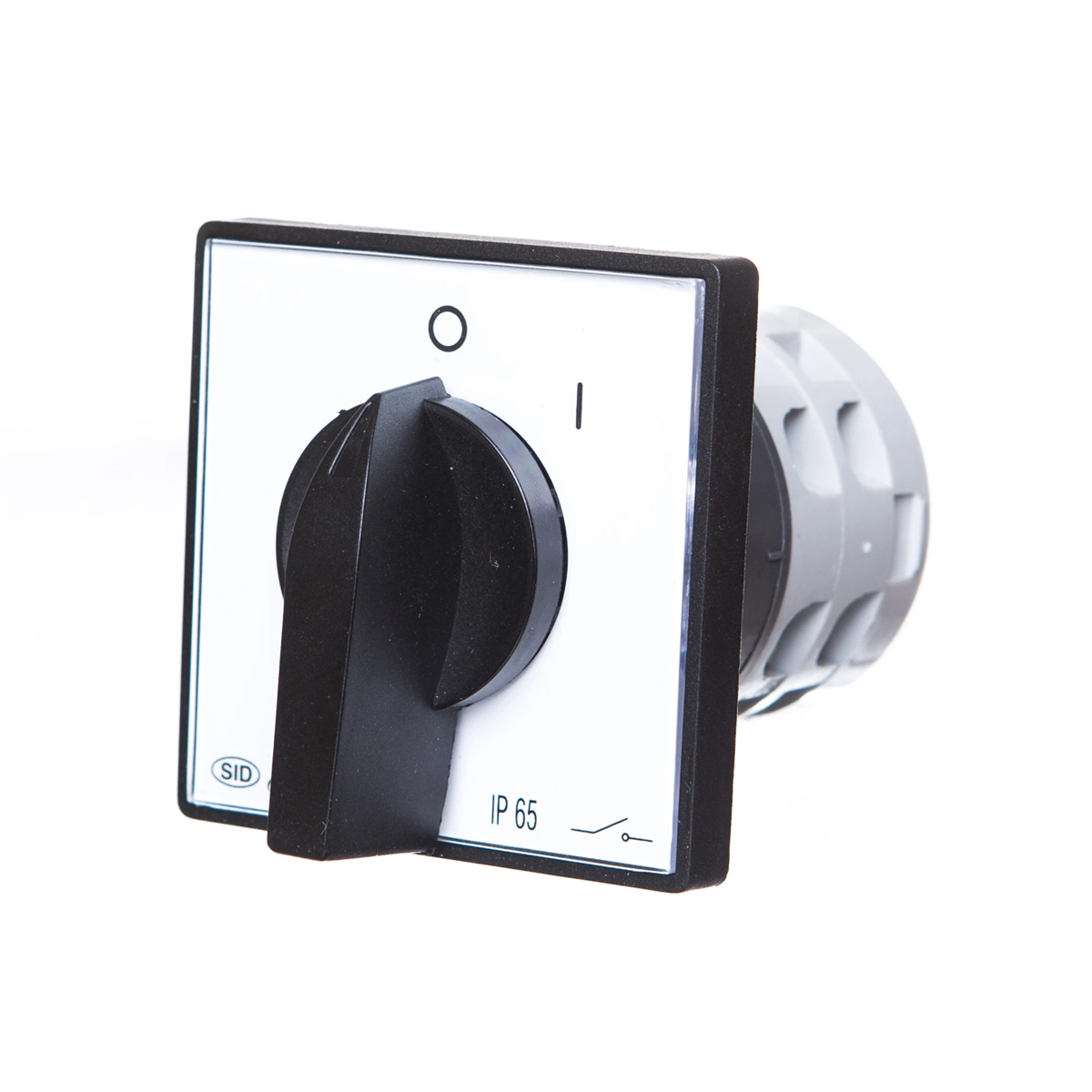

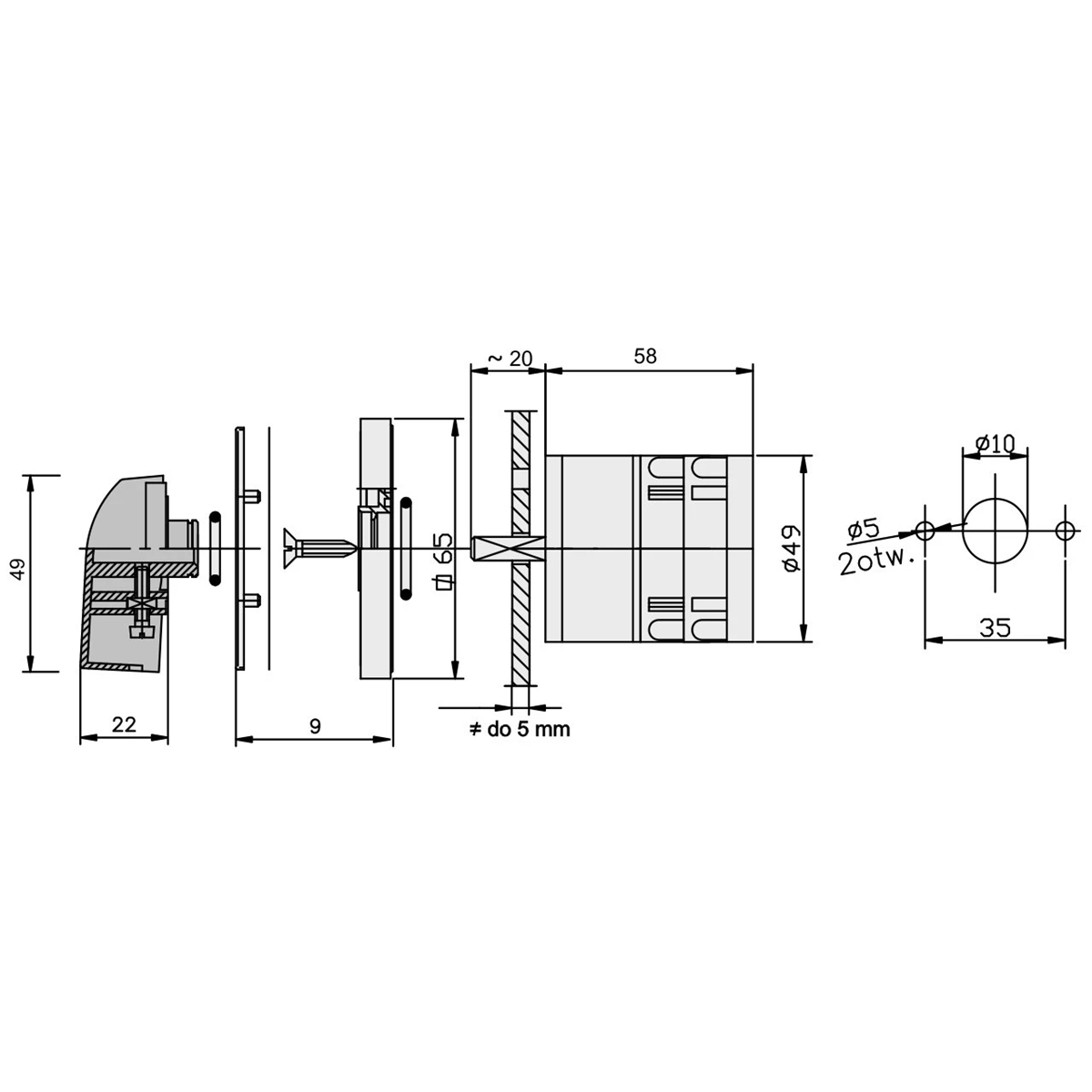

Cam switch arc E16-12 0-1 3P 16A IP65 panel mounted with plate.
Rated impulse withstand voltage: 6 kV
Rated short-circuit making current: 0.7 kA
Rated short-time withstand current: 0.5 kA

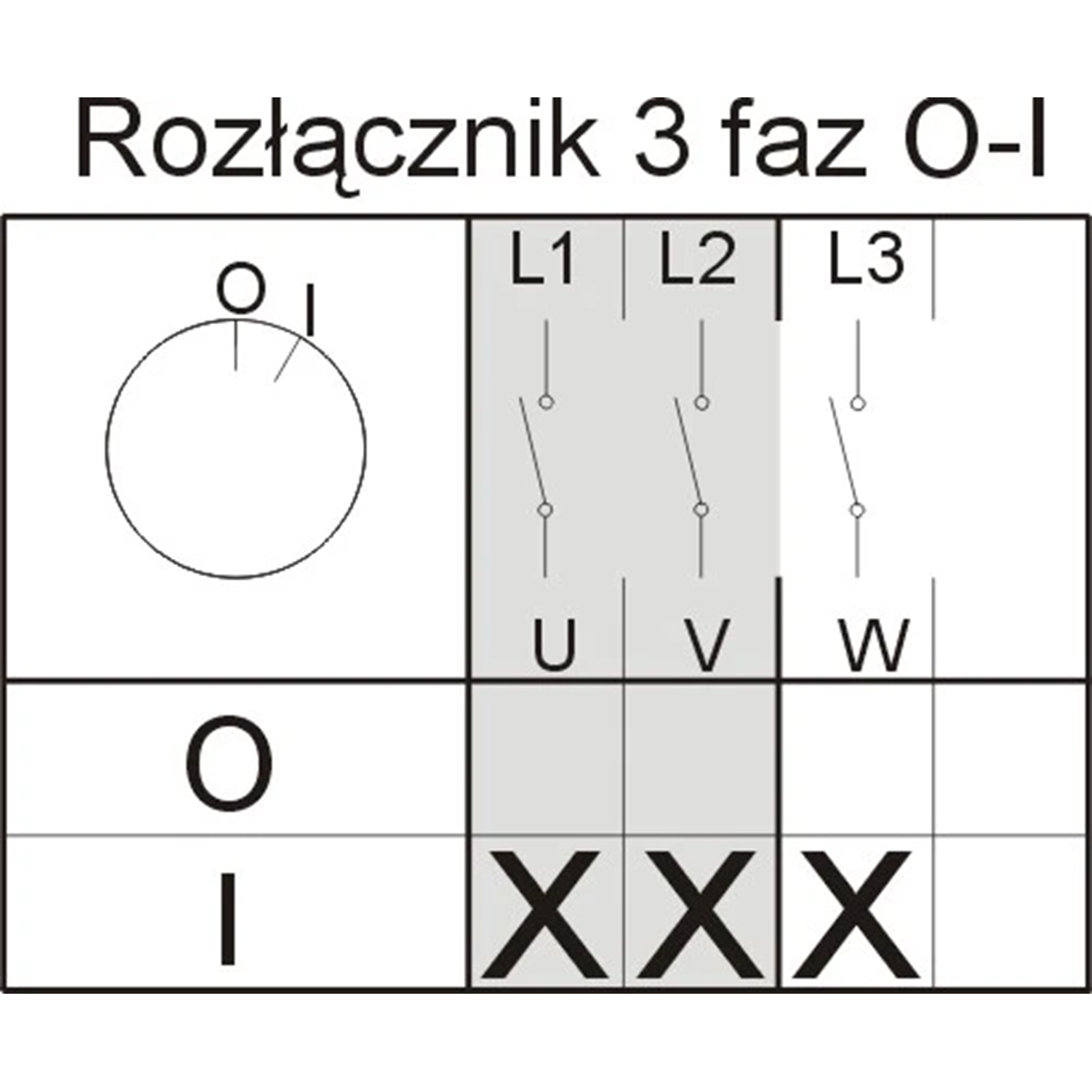

Switching program: on-off O-I
Technical data
-
Number of poles3
-
Level of securityIP65
-
PKWIU27.33.11.0
-
Rated current [A]16
-
Insulation voltage [V]690
Other technical data
-
ModelOn/Off switch
-
With zero (off) positionYes
-
Rated permanent current Iu16 A
-
Rated operation power at AC-3, 400 V5 kW
-
Suitable for front mountingYes
-
Type of control elementTurn button
-
Number of poles3
-
With retraction in 0-positionNo
-
Rated operation current Ie at AC-3, 400 V10.4 A
-
Degree of protection (IP), front sideIP65
-
Complete device in housingNo
-
Type of electrical connection of main circuitScrew connection
Bulk packaging
| A kind of package | Karton |
| Quantity | 1 pcs. |
| Weight (kg) | 0,161 |
| Width (m) | 0,068 |
| Length (m) | 0,068 |
| Depth (m) | 0,090 |
