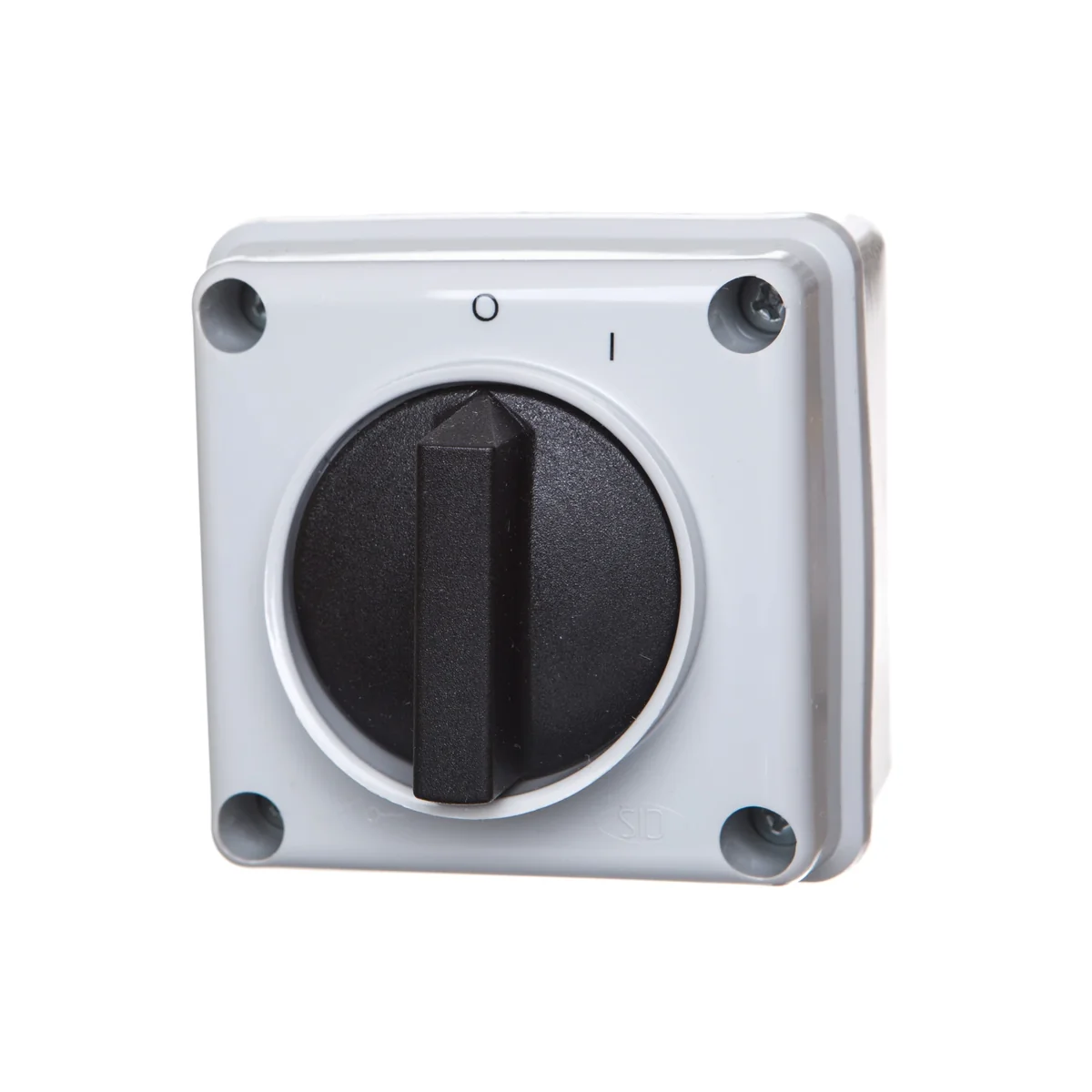

Cam switch arc E12-13 0-1 3P 12A IP65 for padlock 921213

local index:
ALK351ELDZ
Catalog No:
921213
EAN code:
5906197480265
Manufacturer: ELEKTROMET
Number of poles: 3
Rated current [A]: 12
Level of security: IP65
Price:
19,45 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 18 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

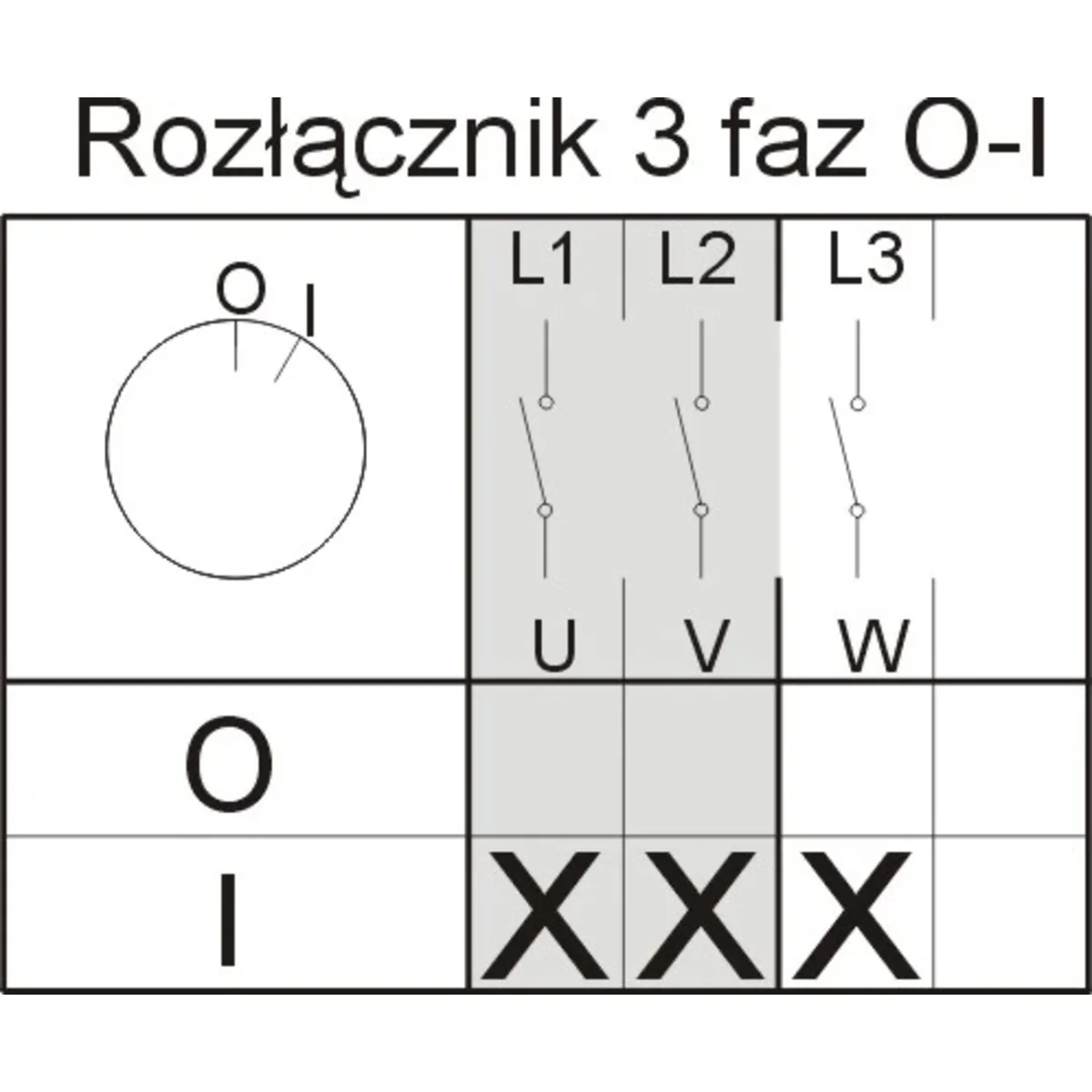

Cam switch arc E12-13 0-1 3P 12A IP65 for padlock Switching program: on-off O-I Rated impulse withstand voltage: 4 kV Rated short-circuit making current: 0.5 kA Rated short-time withstand current: 0.35 kA

Technical data

  • Number of poles
    3
  • Level of security
    IP65
  • PKWIU
    27.33.11.0
  • Rated current [A]
    12
  • Insulation voltage [V]
    690

Other technical data

  • Model
    On/Off switch
  • With zero (off) position
    Yes
  • Rated permanent current Iu
    12 A
  • Degree of protection (IP), front side
    IP65
  • Complete device in housing
    Yes
  • Type of control element
    Turn button
  • Number of poles
    3
  • With retraction in 0-position
    No
  • Rated operation power at AC-3, 400 V
    3 kW
  • Suitable for front mounting
    No
  • Housing material
    Plastic
  • Type of electrical connection of main circuit
    Screw connection

Manufacturer details

Bulk packaging

A kind of package Karton
Quantity 1 pcs.
Weight (kg) 0,203
Width (m) 0,085
Length (m) 0,085
Depth (m) 0,106
