Cam switch arc E12-12 0-1 3P 12A IP65 921201

local index:
ALK350ELDZ
Catalog No:
921201
EAN code:
5906197480012
Manufacturer: ELEKTROMET
Number of poles: 3
Rated current [A]: 12
Level of security: IP65
Price:
13,86 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 22 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

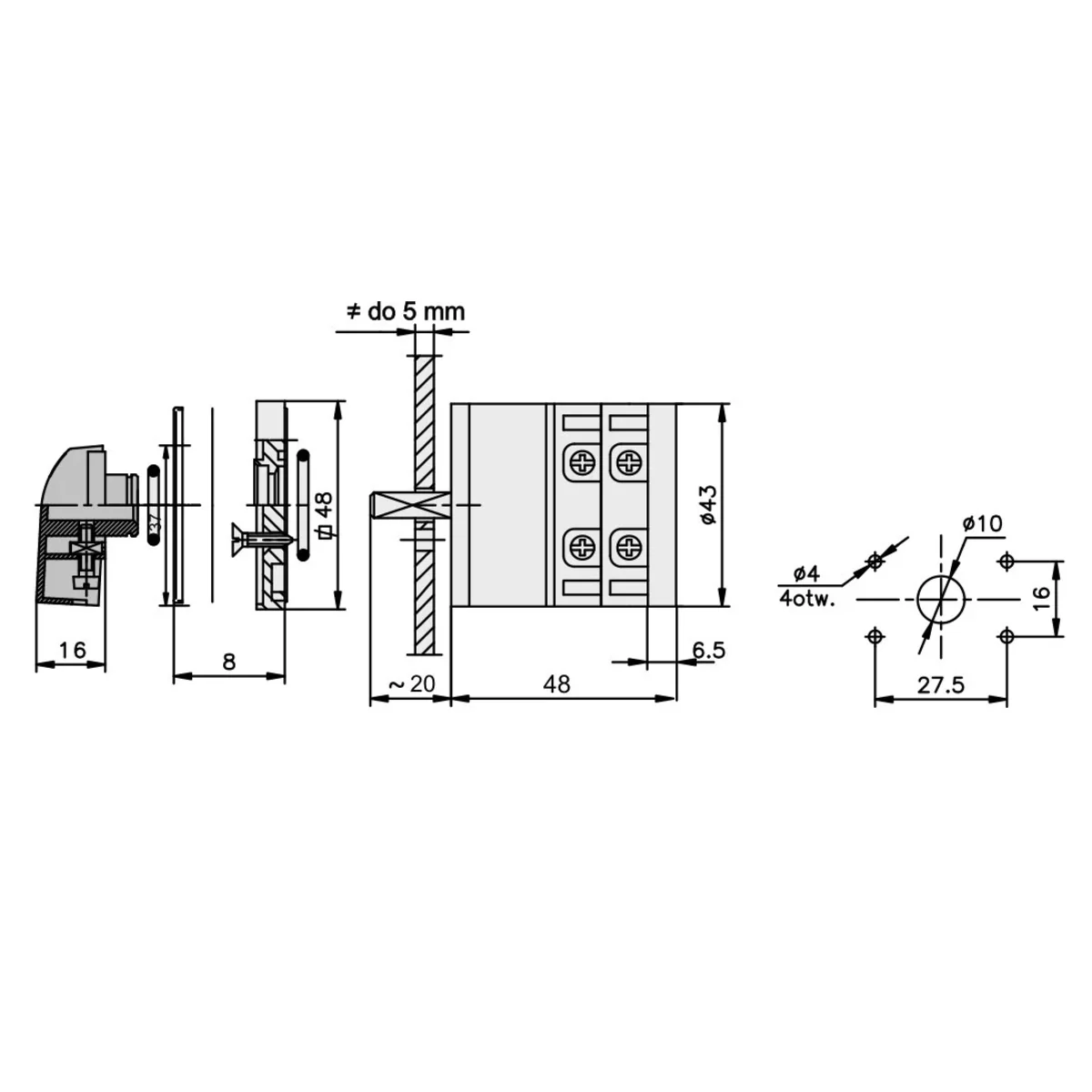

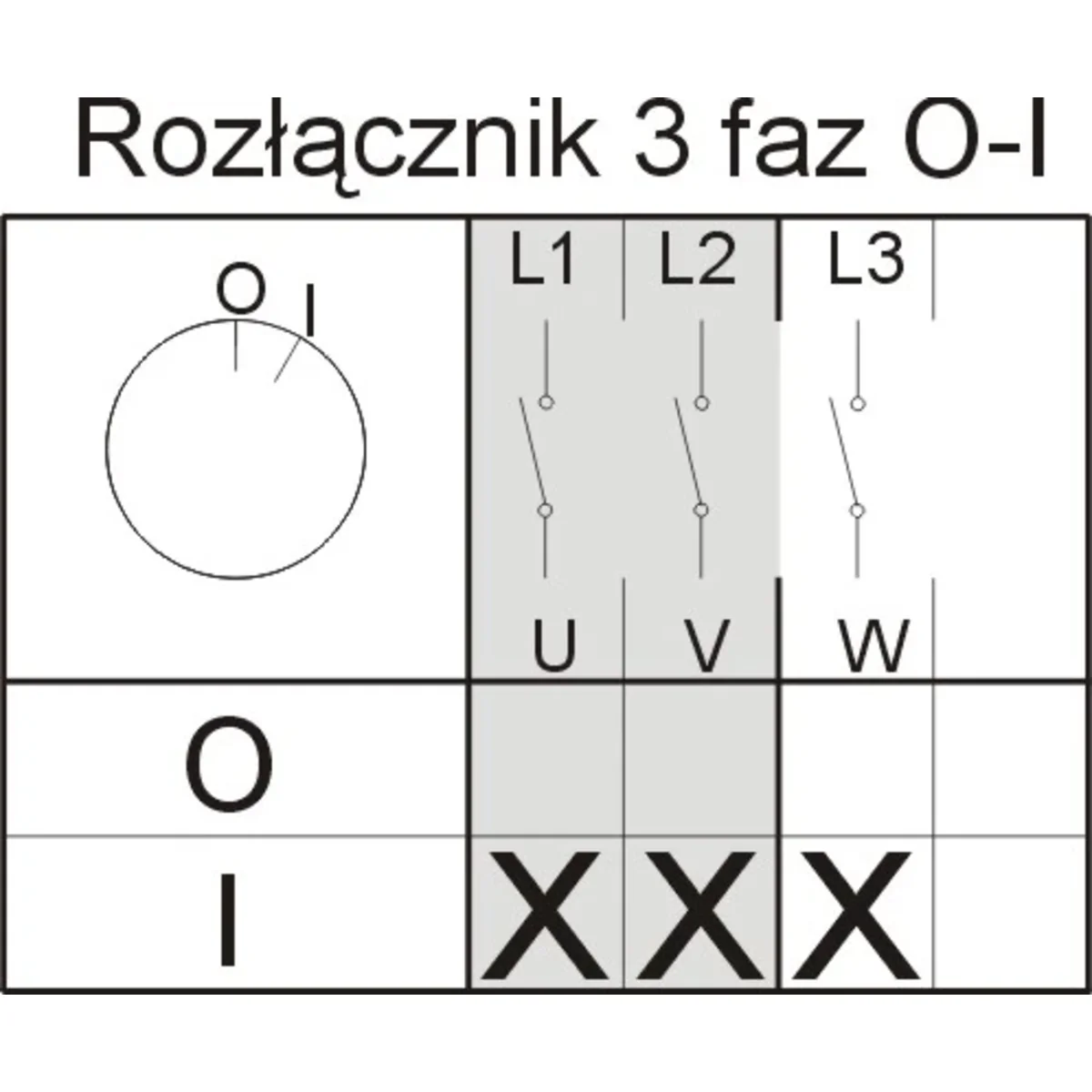

Cam switch arc E12-12 0-1 3P 12A IP65 flush mounted with front plate Rated impulse withstand voltage: 4 kV Rated short-circuit making current: 0.5 kA Rated short-time withstand current: 0.35 kA Switching program: on-off O-I

Technical data

  • Number of poles
    3
  • Level of security
    IP65
  • PKWIU
    27.33.11.0
  • Rated current [A]
    12
  • Insulation voltage [V]
    690

Other technical data

  • Model
    On/Off switch
  • With zero (off) position
    Yes
  • Rated permanent current Iu
    12 A
  • Degree of protection (IP), front side
    IP65
  • Complete device in housing
    No
  • Type of electrical connection of main circuit
    Screw connection
  • Number of poles
    3
  • With retraction in 0-position
    No
  • Rated operation power at AC-3, 400 V
    3 kW
  • Suitable for front mounting
    Yes
  • Type of control element
    Turn button

Bulk packaging

A kind of package Karton
Quantity 1 pcs.
Weight (kg) 0,100
Width (m) 0,050
Length (m) 0,050
Depth (m) 0,082
