Cam switch arc 25-22 O-Y-∆ 3P 25A IP65 922511
local index:
ALK375ELDZ
Catalog No:
922511
EAN code:
5906197480739
Price:
29,46 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

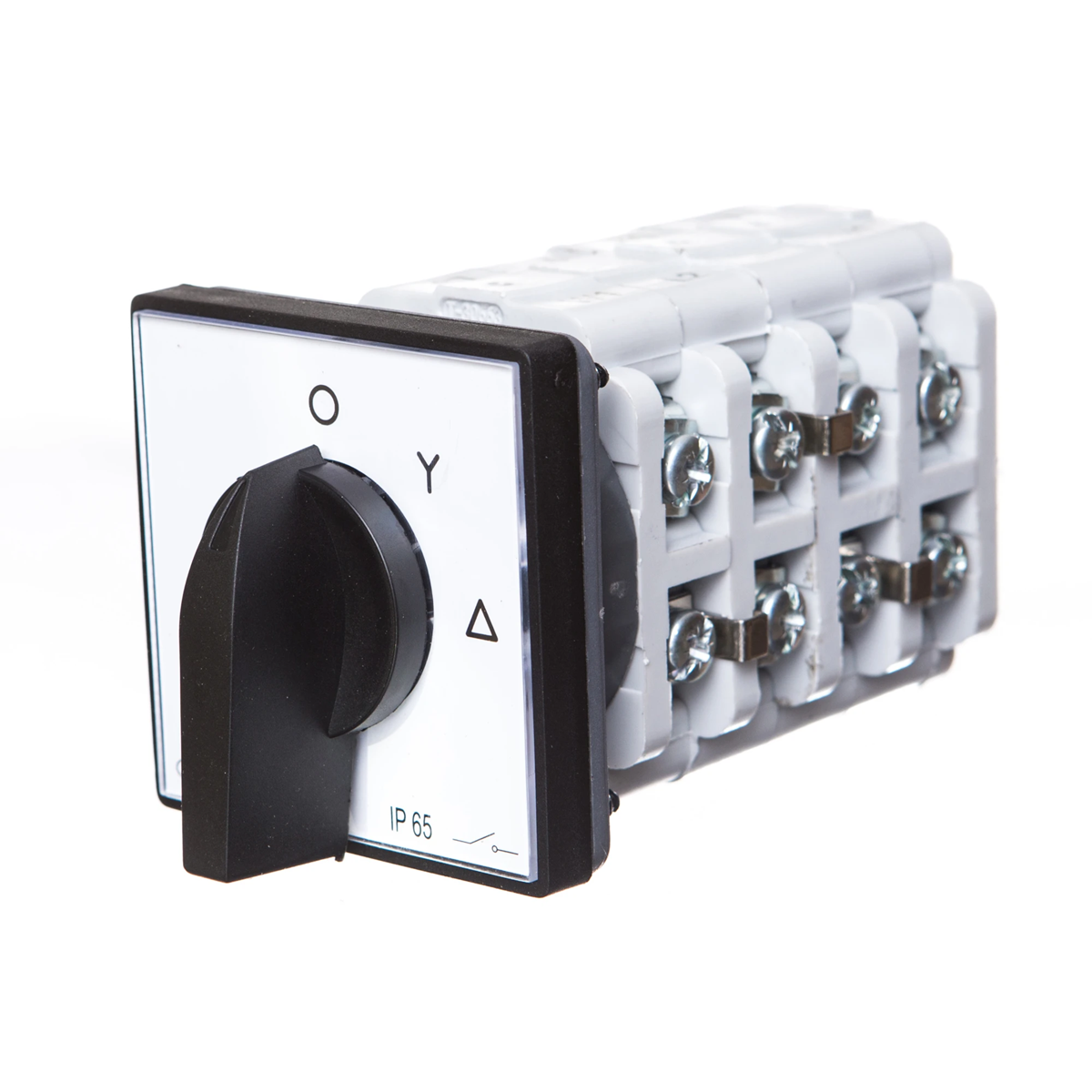

Cam switch arc 25-22 O-Y-∆ 3P 25A IP65 flush-mounted with front plate

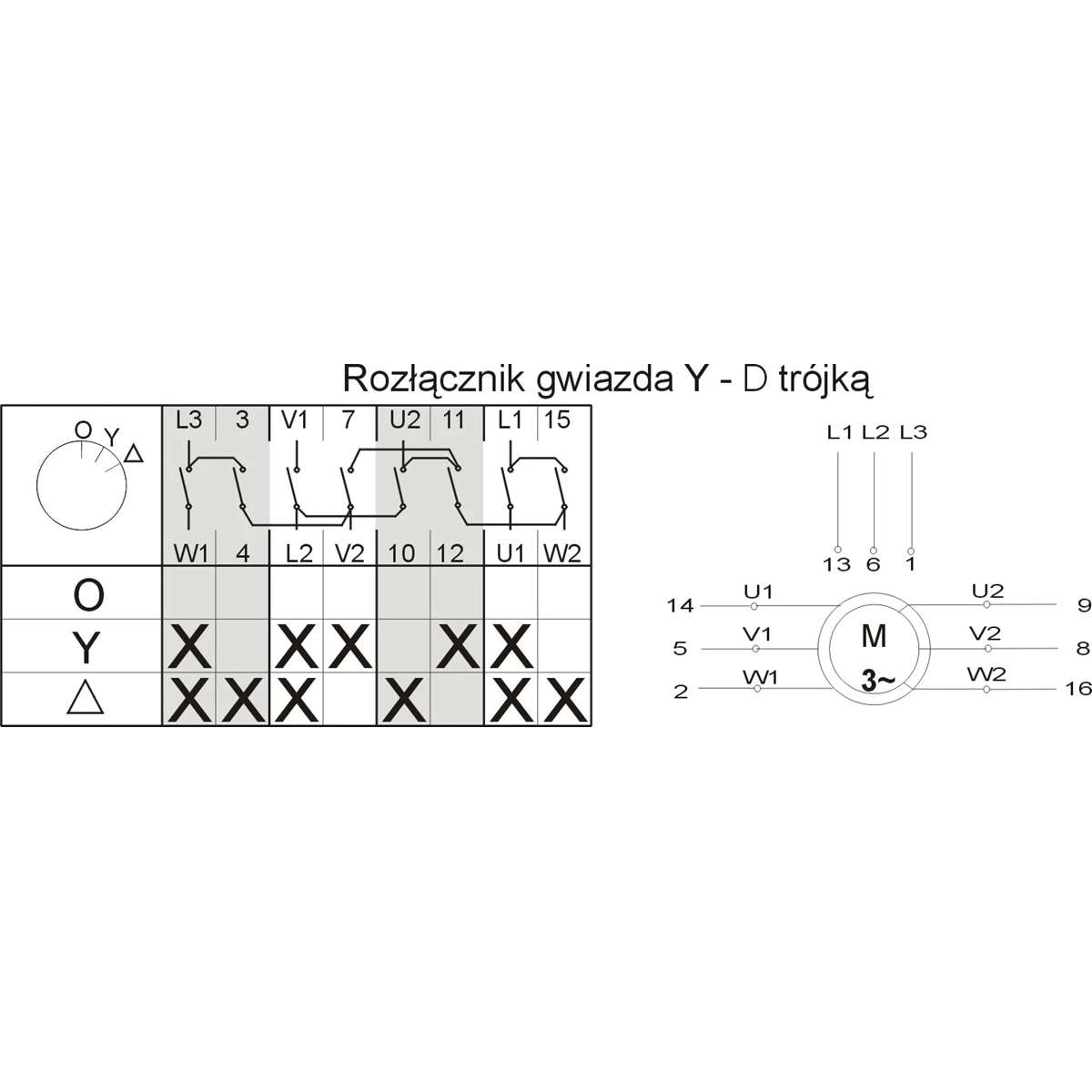

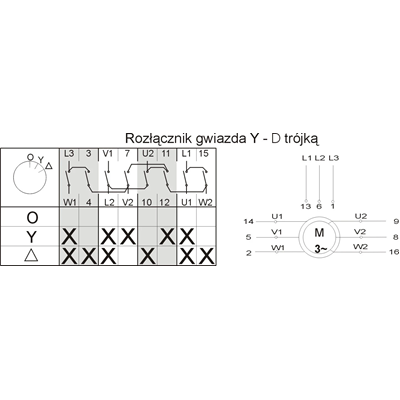

Connection program: star-delta O-Y-∆
Rated impulse withstand voltage: 6 kV
Rated short-circuit making current: 1 kA
Rated short-time withstand current: 0.7 kA
Technical data
-
Number of poles3
-
Rated current [A]25
-
Job typeStar - triangle
-
PKWIU27.33.11.0
-
Rated voltage [V]400
-
Level of securityIP65
-
Insulation voltage [V]690
Other technical data
-
ModelStar-delta switch
-
With zero (off) positionYes
-
Rated permanent current Iu25 A
-
Rated operation power at AC-3, 400 V7 kW
-
Suitable for front mountingYes
-
Type of control elementTurn button
-
Number of poles3
-
With retraction in 0-positionNo
-
Rated operation current Ie at AC-3, 400 V14 A
-
Degree of protection (IP), front sideIP65
-
Complete device in housingNo
-
Type of electrical connection of main circuitScrew connection
Bulk packaging
| A kind of package | Karton |
| Quantity | 1 pcs. |
| Weight (kg) | 0,459 |
| Width (m) | 0,083 |
| Length (m) | 0,080 |
| Depth (m) | 0,138 |
