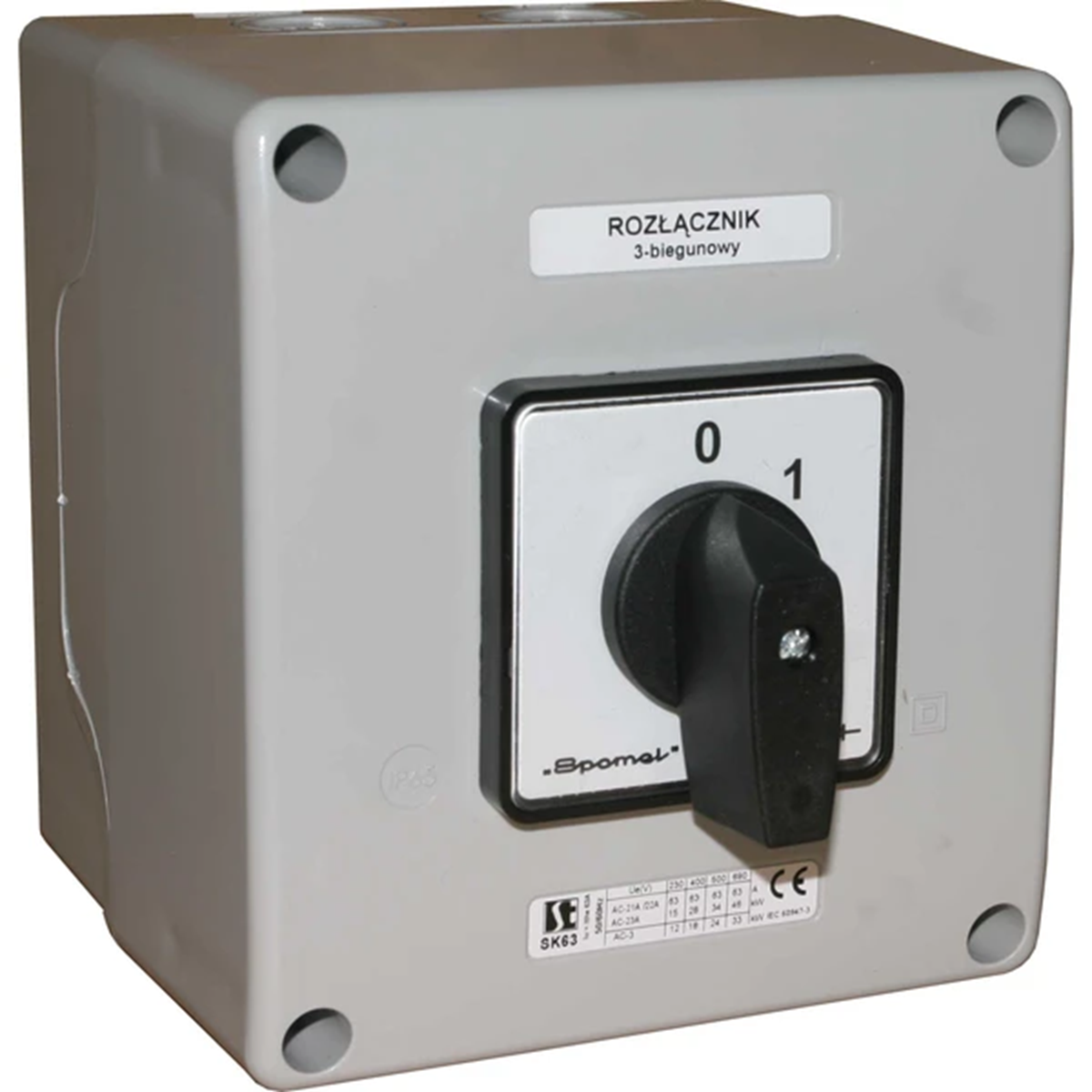

Cam switch 63A, three-pole 0-1 switch, in OB16 enclosure SK63-2.8211\OB16

local index:
ALO009SPAM
Catalog No:
SK63-2.8211\OB16
EAN code:
5907723110519
Manufacturer: SPAMEL
Continuous current [A]: 63
Level of security: IP65
Rated operational power at AC-3, 400 V [kW]: 18
Price:
44,13 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 14 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The new SK63 and SK100 cam switches, which are also switch disconnectors, extend the offer of the SK switch family with new, higher current ranges, respectively 63 A and 100 A. The segmented design of these switches with double cams allows you to create any switching programs depending on the position of the drive knob.

Technical data

  • Continuous current [A]
    63
  • Rated operational power at AC-3, 400 V [kW]
    18
  • Level of security
    IP65

Other technical data

  • Model
    Reverser
  • With zero (off) position
    Yes
  • Rated permanent current Iu
    63 A
  • Degree of protection (IP), front side
    IP65
  • Number of auxiliary contacts as normally open contact
    0
  • Suitable for floor mounting
    Yes
  • Suitable for distribution board installation
    No
  • Complete device in housing
    Yes
  • Type of control element
    Turn button
  • Number of poles
    3
  • With retraction in 0-position
    No
  • Rated operation power at AC-3, 400 V
    18 kW
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Suitable for front mounting
    No
  • Suitable for intermediate mounting
    No
  • Housing material
    Plastic
  • Type of electrical connection of main circuit
    Screw connection
