SPAMEL

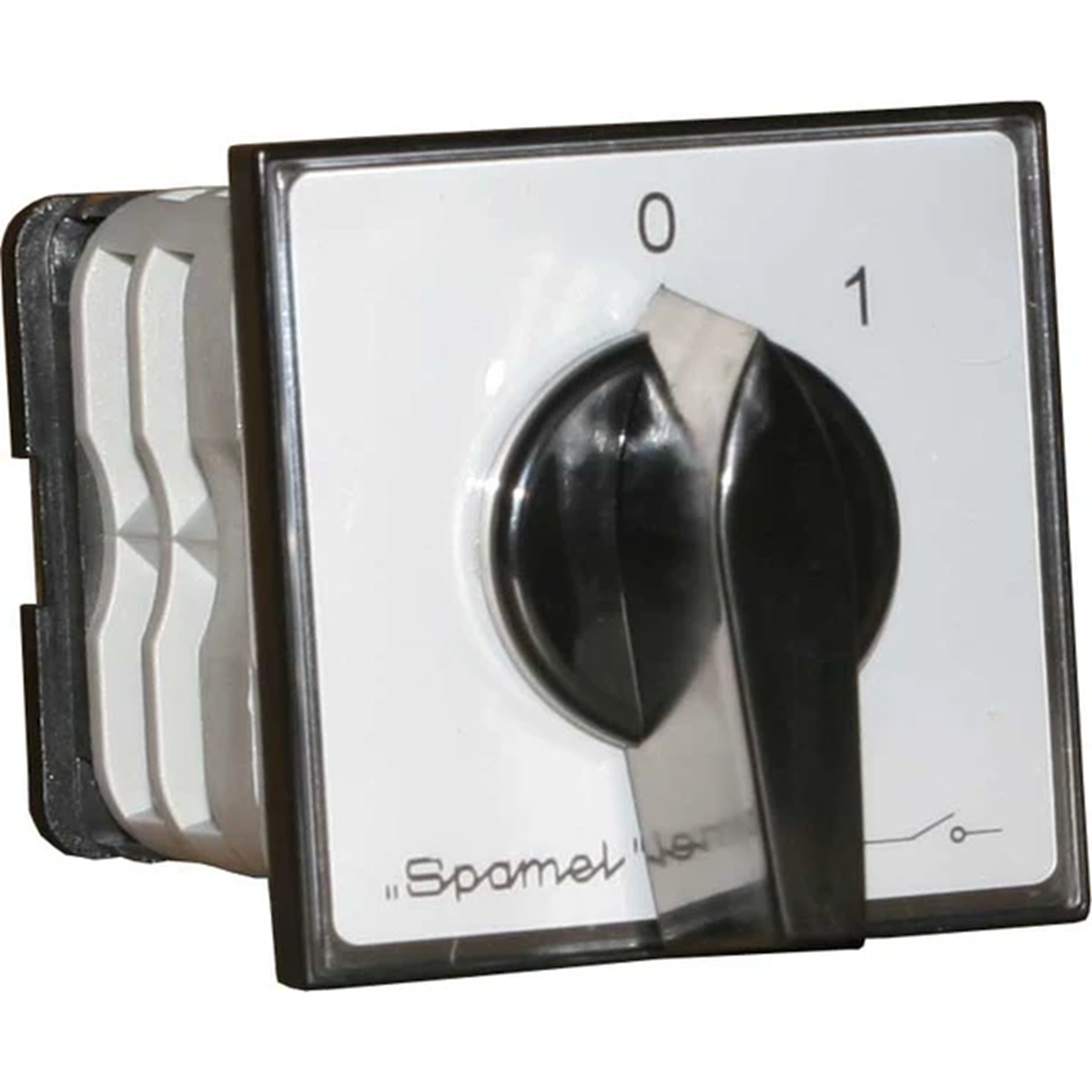

Cam switch 63A, single-pole 0-1 switch, panel-mounted gray face black knob ŁK63-1.825\P03

local index:
ALK065SPAM
Catalog No:
ŁK63-1.825\P03
EAN code:
5907723020450
Price:
21,94 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,71 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Cam switches are electric rotary multi-circuit switches adapted to switch on and off currents. Cam switches are used in the circuits of low voltage electrical installations, especially as circuit breakers, disconnectors, switches and control switches. Cam switches can be installed indoors (pollution degree 3 - industrial use) at -40...+70°C.

Technical data

  • Length [mm]
    66
  • Continuous current [A]
    63
  • Width [mm]
    66
  • Accurate color
    Gray
  • Color
    Gray
  • Level of security
    IP65
  • Rated operational power at AC-3, 400 V [kW]
    20

Other technical data

  • Model
    Reverser
  • With zero (off) position
    yes
  • Rated permanent current Iu
    63 A
  • Degree of protection (IP), front side
    IP65
  • Number of auxiliary contacts as normally open contact
    0
  • Suitable for floor mounting
    yes
  • Suitable for distribution board installation
    no
  • Complete device in housing
    no
  • Type of control element
    Turn button
  • Number of poles
    1
  • With retraction in 0-position
    no
  • Rated operation power at AC-3, 400 V
    20 kW
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Suitable for front mounting
    no
  • Suitable for intermediate mounting
    yes
  • Housing material
    Plastic
  • Type of electrical connection of main circuit
    Screw connection
