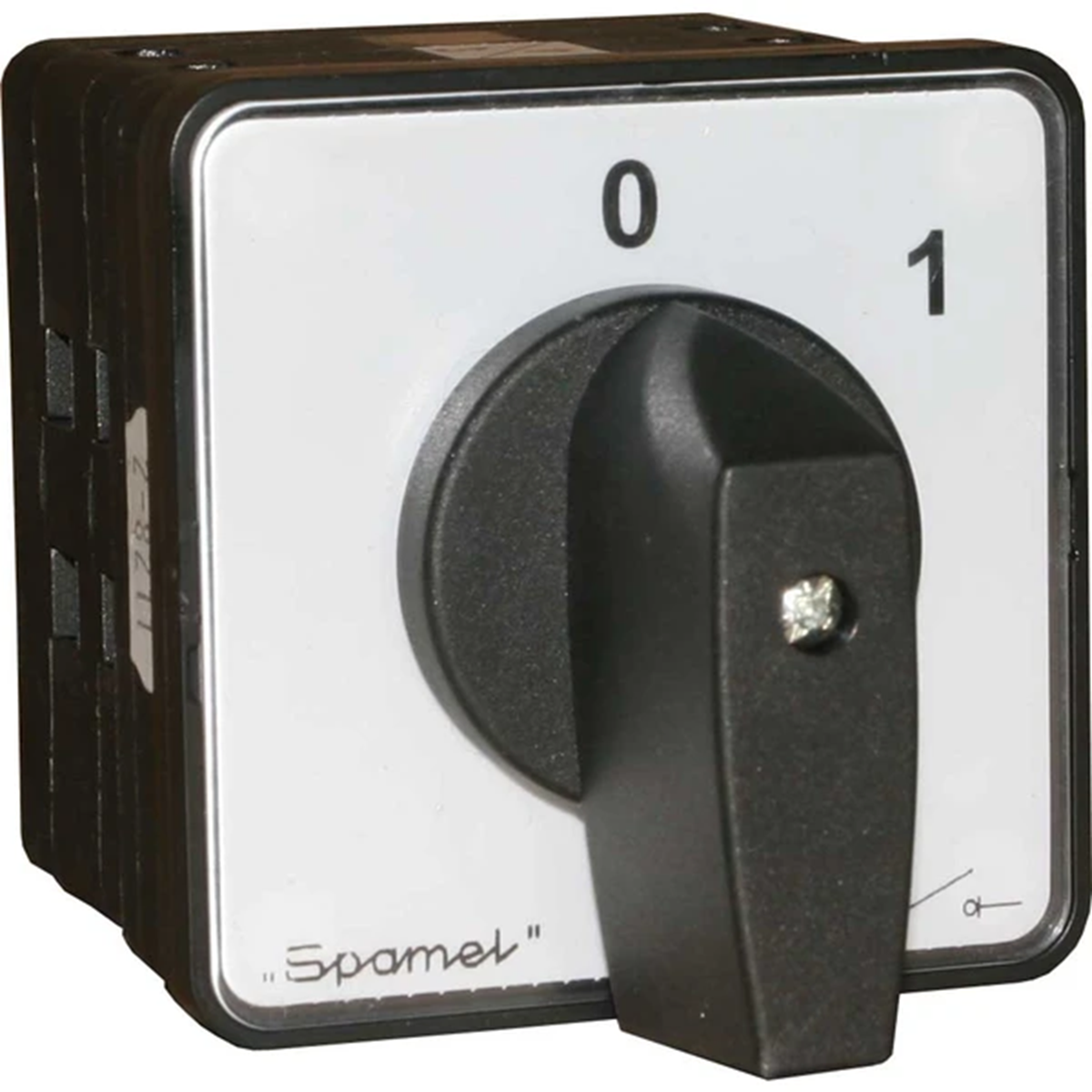

Cam switch 63A, 0-1 three-pole switch, panel-mounted gray face black knob SK63-2.8211\P03
local index:
ALK058SPAM
Catalog No:
SK63-2.8211\P03
EAN code:
5907723110298
Price:
33,63 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The new SK63 and SK100 cam switches, which are also switch disconnectors, extend the offer of the SK switch family with new, higher current ranges, respectively 63 A and 100 A. The segmented design of these switches with double cams allows you to create any switching programs depending on the position of the drive knob.
Technical data
-
ColorBlack
-
Level of securityIP65
-
Accurate colorBlack
-
Continuous current [A]63
-
Rated operational power at AC-3, 400 V [kW]18
Other technical data
-
ModelReverser
-
With zero (off) positionYes
-
Rated permanent current Iu63 A
-
Degree of protection (IP), front sideIP65
-
Number of auxiliary contacts as normally open contact0
-
Suitable for floor mountingYes
-
Suitable for distribution board installationNo
-
Complete device in housingNo
-
Type of control elementTurn button
-
Number of poles3
-
With retraction in 0-positionNo
-
Rated operation power at AC-3, 400 V18 kW
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Suitable for front mountingNo
-
Suitable for intermediate mountingYes
-
Housing materialPlastic
-
Type of electrical connection of main circuitScrew connection
