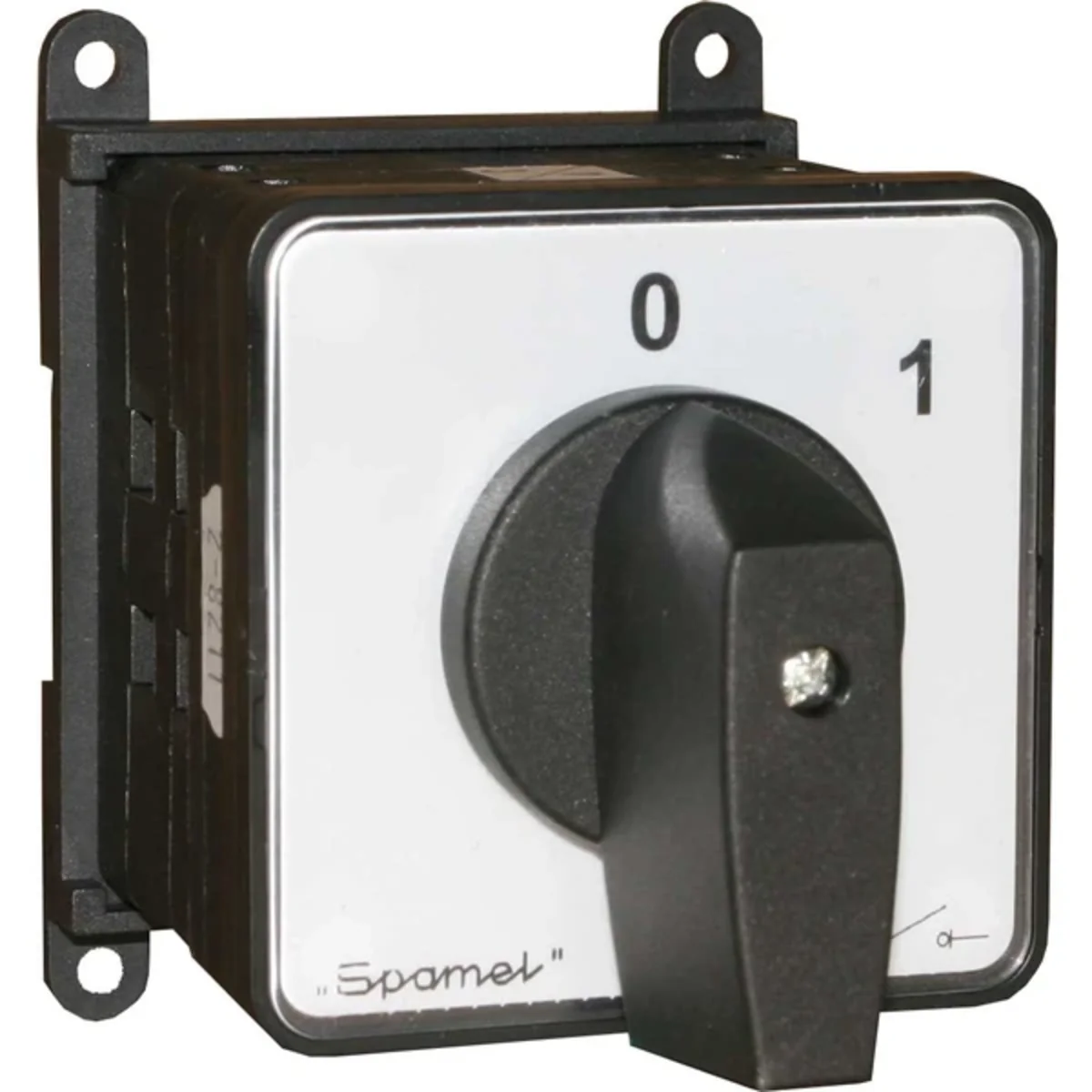

Cam switch 63A, 0-1 four-pole switch disconnector, base-rail fixing, yellow-red lockable front SK63-2.8210\BS08
local index:
ALK189SPAM
Catalog No:
SK63-2.8210\BS08
EAN code:
5907723198616
Price:
44,97 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Cam switch 63A, 0-1 four-pole switch disconnector, base-rail fixing, yellow-red lockable front
Technical data
-
ColorRed
-
Level of securityIP65
-
Accurate colorRed
-
Continuous current [A]63
-
Rated operational power at AC-3, 400 V [kW]18
Other technical data
-
ModelReverser
-
With zero (off) positionYes
-
Rated permanent current Iu63 A
-
Degree of protection (IP), front sideIP65
-
Number of auxiliary contacts as normally open contact0
-
Suitable for floor mountingYes
-
Suitable for distribution board installationNo
-
Complete device in housingNo
-
Type of control elementTurn button
-
Number of poles4
-
With retraction in 0-positionNo
-
Rated operation power at AC-3, 400 V18 kW
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Suitable for front mountingNo
-
Suitable for intermediate mountingYes
-
Housing materialPlastic
-
Type of electrical connection of main circuitScrew connection
